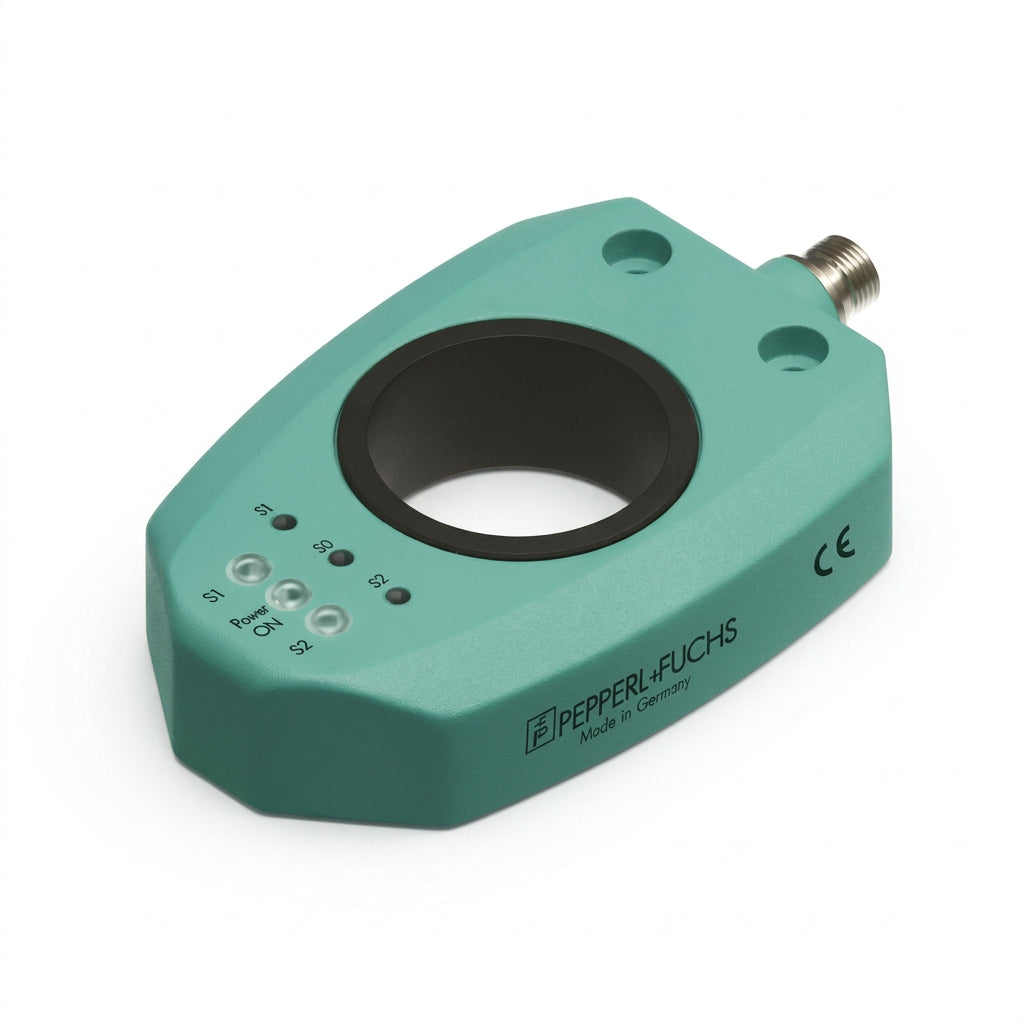

Pepperl+Fuchs PMI360D-F130-IE8-V15 Inductive Angular Measuring System
- Regular price
- $562.00
- Sale price
- $562.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PMI360D-F130-IE8-V15
Description
The Pepperl+Fuchs PMI360D-F130-IE8-V15 is an inductive angular measuring system designed to detect rotational position across a full 360-degree range in industrial automation applications. It provides a 4–20 mA analog current output and two PNP switching outputs, allowing angle measurements and configurable switching points to be integrated into control systems. Its IP67-rated housing and M12 connector support installation in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Switches |
| Part Number | PMI360D-F130-IE8-V15 |
| Subcategory | Angular Position Sensors |
| Product Type | Inductive Angular Measuring System |
| Manufacturer Reference | 199092 |
| Measurement Range | 0–360° |
| Resolution | 0.4° |
| Repeat Accuracy | ±0.25° |
| Operating Voltage | 18–30 V DC |
| Analog Output | 4–20 mA |
| Switching Outputs | 2 PNP, normally open |
| Maximum Switching Current | 100 mA per output |
| Connection | 5-pin M12 × 1 connector |
| Housing Material | PBT |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +70 °C |
| Dimensions (L × W × H) | 120 × 76.5 × 22 mm |
| Weight | 0.40 lb |
Information About PMI360D-F130-IE8-V15
The PMI360D-F130-IE8-V15 belongs to the Pepperl+Fuchs inductive positioning and angular measurement product range. It measures angular position with a resolution of 0.4° and repeat accuracy of ±0.25°. The sensor operates from an 18–30 V DC supply and includes two PNP normally open switching outputs alongside a 4–20 mA analog current output. Its PBT housing, five-pin M12 connection, and IP67 protection rating support integration into compatible industrial machinery and control installations.
Key Features:
-
360° Measurement Range: Measures angular position across a complete rotation.
-
4–20 mA Analog Output: Sends proportional angle measurements to compatible controllers.
-
Two PNP Switching Outputs: Provides two normally open switching outputs for position-related control.
-
Adjustable Switching Points: Allows switching positions to be configured for the application.
-
0.4° Resolution: Provides angular measurement increments of 0.4°.
-
±0.25° Repeat Accuracy: Supports repeatable position measurement under specified conditions.
-
18–30 V DC Supply: Operates with a low-voltage industrial DC supply.
-
IP67 Protection: Provides protection against dust and temporary immersion under specified test conditions.
-
Five-Pin M12 Connector: Provides a standardized connection interface for compatible cabling.
The PMI360D-F130-IE8-V15 delivers the angular measurement accuracy and configurable switching functionality required for industrial position monitoring and automation.
