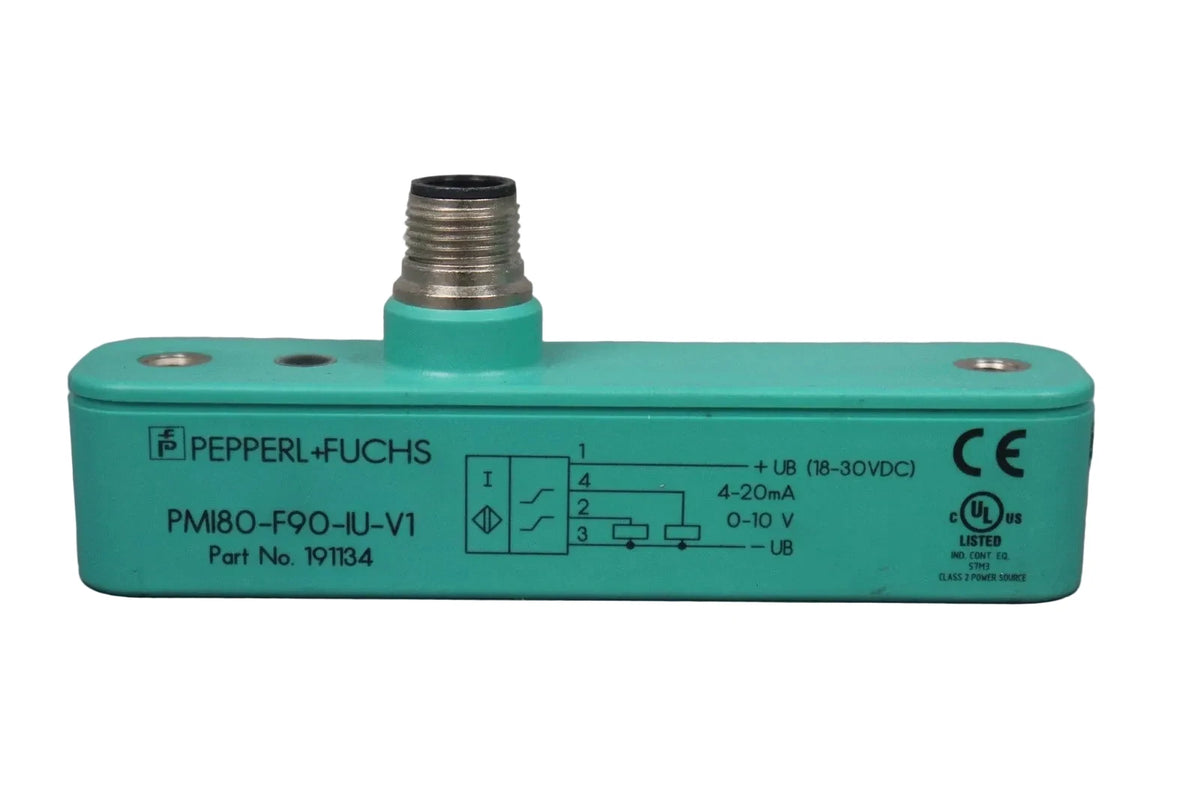

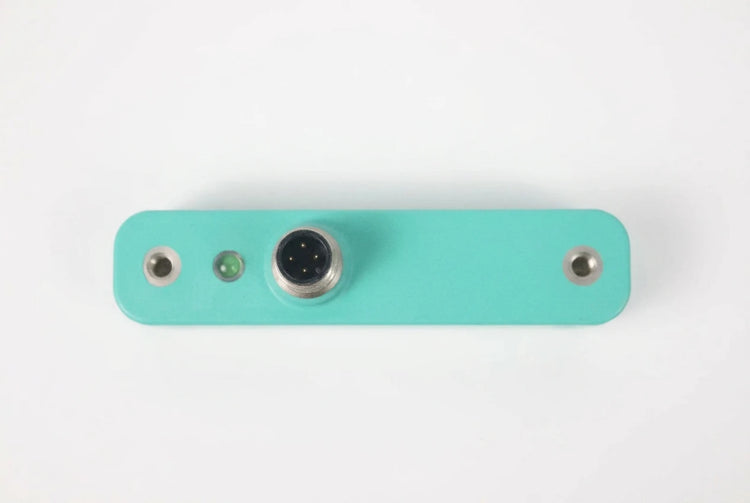

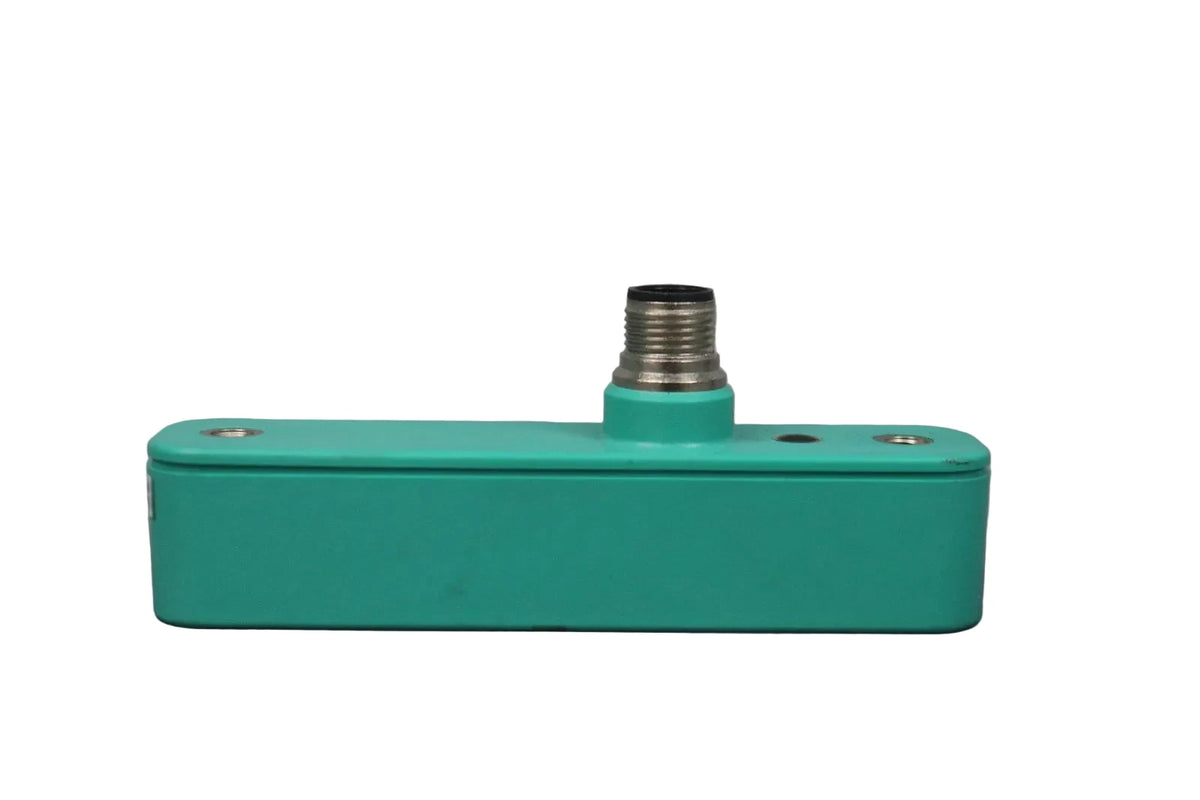

Pepperl+Fuchs PMI80-F90-IU-V1 Inductive Position Sensor 80 mm
- Regular price
- $575.00
- Sale price
- $575.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PMI80-F90-IU-V1
Description
The Pepperl+Fuchs PMI80-F90-IU-V1 is an inductive positioning system designed for non-contact linear position measurement in industrial automation applications. It provides an 80 mm measuring range with selectable analog current or voltage output, supporting continuous position monitoring in machinery and control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Transducers |
| Part Number | PMI80-F90-IU-V1 |
| Subcategory | Inductive Positioning Systems |
| Sensor Type | Inductive positioning system |
| Measuring Range | 0–80 mm |
| Operating Voltage | 18–30 V DC |
| Analog Current Output | 4–20 mA |
| Analog Voltage Output | 0–10 V |
| Repeat Accuracy | ±0.1 mm |
| Resolution | 125 μm |
| Linearity Error | ±0.8 mm within measuring range; ±0.4 mm within linearity range |
| No-Load Supply Current | ≤40 mA |
| Connection Type | 4-pin M12 × 1 connector |
| Protection Rating | IP67 |
| Housing Material | ABS |
| Operating Temperature | −25°C to +70°C |
| Dimensions (L × W × H) | 102 × 23 × 41 mm |
| Weight | 0.20 lb |
Information About PMI80-F90-IU-V1
The PMI80-F90-IU-V1 is an inductive position sensor from Pepperl+Fuchs designed to measure the position of a compatible metal target. It operates on an 18–30 V DC supply and provides either a 4–20 mA current signal or a 0–10 V voltage signal, with only one output used at a time. The sensor offers a nominal measuring range of 0–80 mm, repeat accuracy of ±0.1 mm, and resolution of 125 μm. Its IP67-rated housing and M12 four-pin connector support installation in industrial environments.
-
Measuring Range: Supports position measurement across 0–80 mm.
-
Analog Output: Provides 4–20 mA current or 0–10 V voltage output.
-
Supply Voltage: Operates with an 18–30 V DC power supply.
-
Repeat Accuracy: Provides repeatability of ±0.1 mm.
-
Resolution: Offers 125 μm measurement resolution.
-
Protection Rating: IP67 protection helps guard against dust and water ingress.
-
Electrical Connection: Uses a four-pin M12 × 1 connector.
-
Operating Temperature: Rated for ambient temperatures from −25°C to +70°C.
The PMI80-F90-IU-V1 delivers the reliability and precision required for industrial position monitoring, machine automation, and linear movement measurement.
