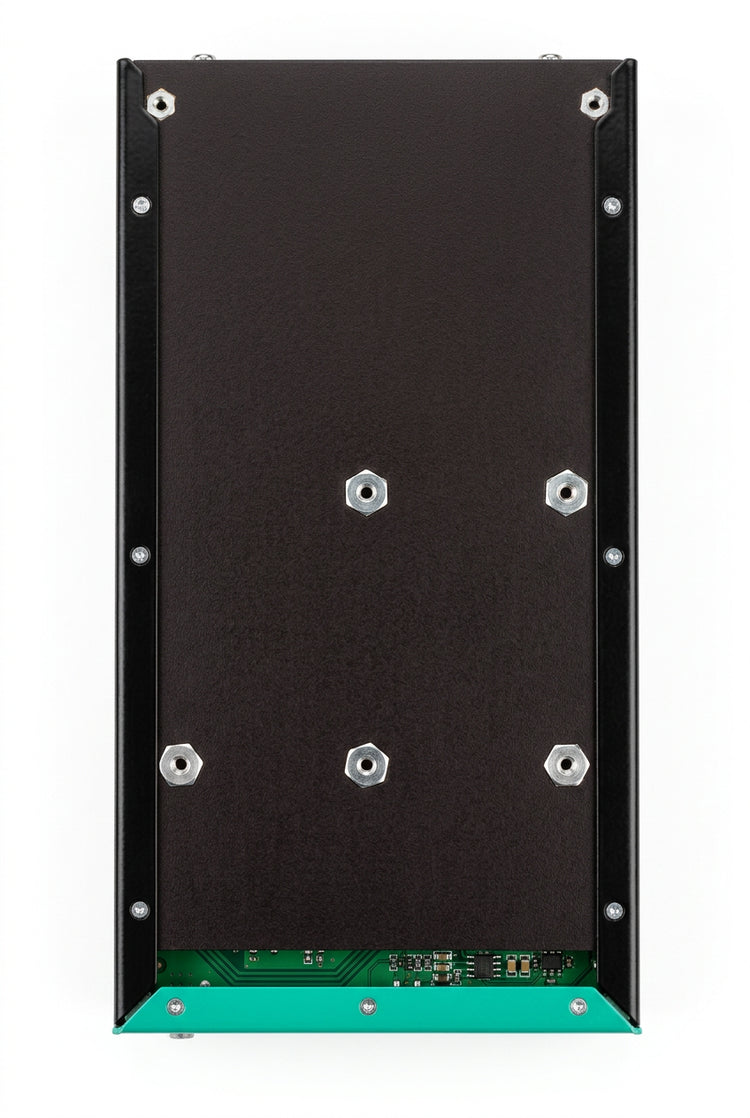

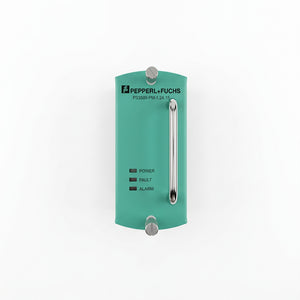

Pepperl+Fuchs PS3500-PM-1.24.15 24V DC Power Supply Module
- Regular price
- $3,199.00
- Sale price
- $3,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PS3500-PM-1.24.15
Description
The Pepperl+Fuchs PS3500-PM-1.24.15 is a 24 V DC industrial power supply module rated for 15 A output, designed for use in PS3500 redundant power supply systems. It supports N+1 redundancy, automatic load sharing, and adjustable output voltage to help maintain reliable power delivery in industrial automation installations. Its modular design also supports hot-swapping within a properly configured compatible system.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Power Supplies |
| Part Number | PS3500-PM-1.24.15 |
| Subcategory | Redundant Industrial Power Supply Modules |
| Manufacturer Part ID | 913919 |
| Product Series | PS3500 |
| Rated Output Voltage | 24 V DC |
| Rated Output Current | 15 A |
| Input Voltage | 90–250 V AC / 90–300 V DC |
| Input Frequency | 44–66 Hz (AC input) |
| Maximum Efficiency | Up to 91% |
| Output Ripple | 35 mV RMS; less than 100 mV peak-to-peak |
| Short-Circuit Current | Maximum 20 A |
| Minimum Hold-Up Time | 25 ms at nominal input and output load |
| Galvanic Isolation | 4.25 kV DC input-to-output |
| Protection Rating | IP20 |
| Weight | 4.13 lb |
Information About PS3500-PM-1.24.15
The PS3500-PM-1.24.15 is identified by manufacturer part number 913919 and belongs to Pepperl+Fuchs' PS3500 power supply family. It accepts 90–250 V AC or 90–300 V DC input and provides a nominal 24 V DC output at up to 15 A. The module supports N+1 redundancy and automatic load sharing when installed with compatible PS3500 backplanes and system components. Built-in status indicators and a relay fault signal support power-system diagnostics and monitoring.
Key Features:
-
24 V DC Output: Supplies regulated DC power for compatible industrial automation equipment.
-
15 A Output Rating: Provides up to 15 A nominal output current under specified operating conditions.
-
N+1 Redundancy: Supports redundant power configurations to improve system availability.
-
Automatic Load Sharing: Helps distribute load between parallel power supply modules.
-
Adjustable Output Voltage: Allows output voltage adjustment within the manufacturer's specified range.
-
Hot-Swappable Design: Supports module replacement in compatible systems designed for hot swapping.
-

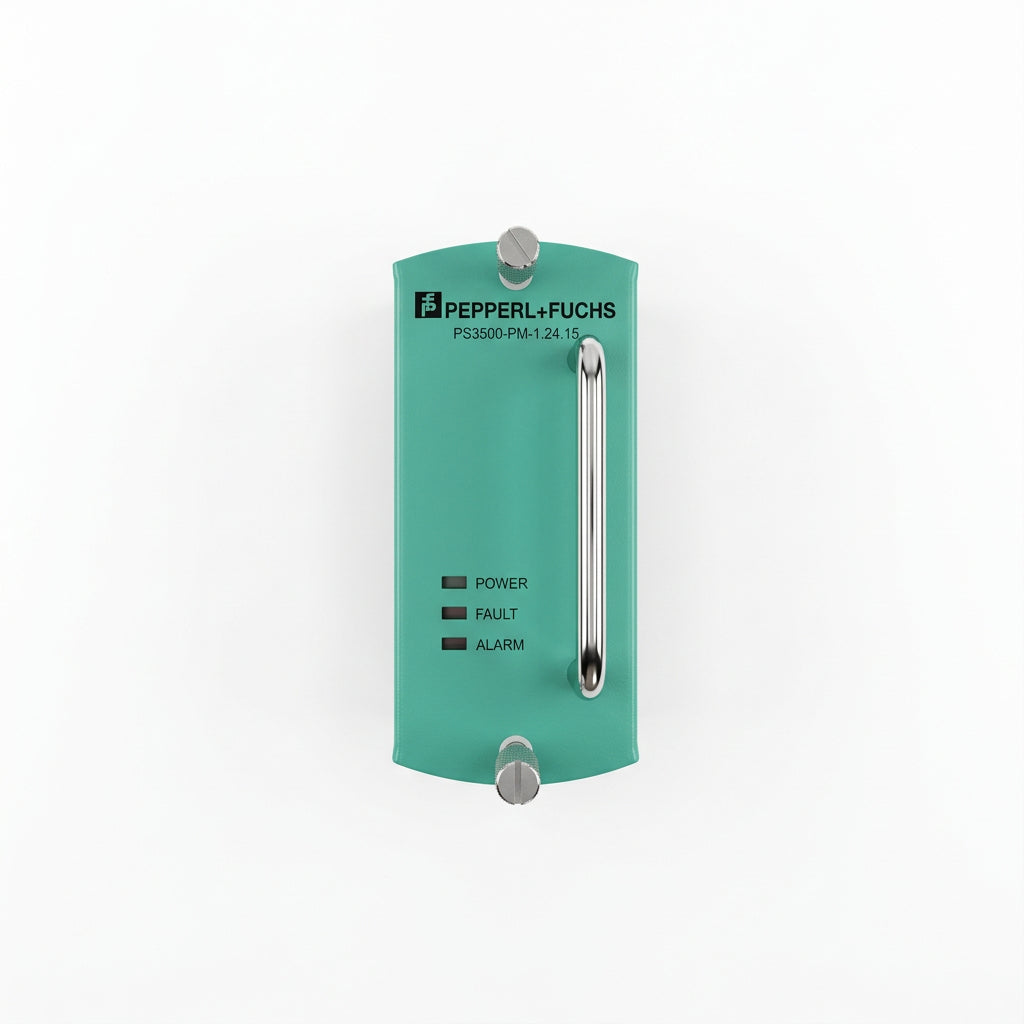

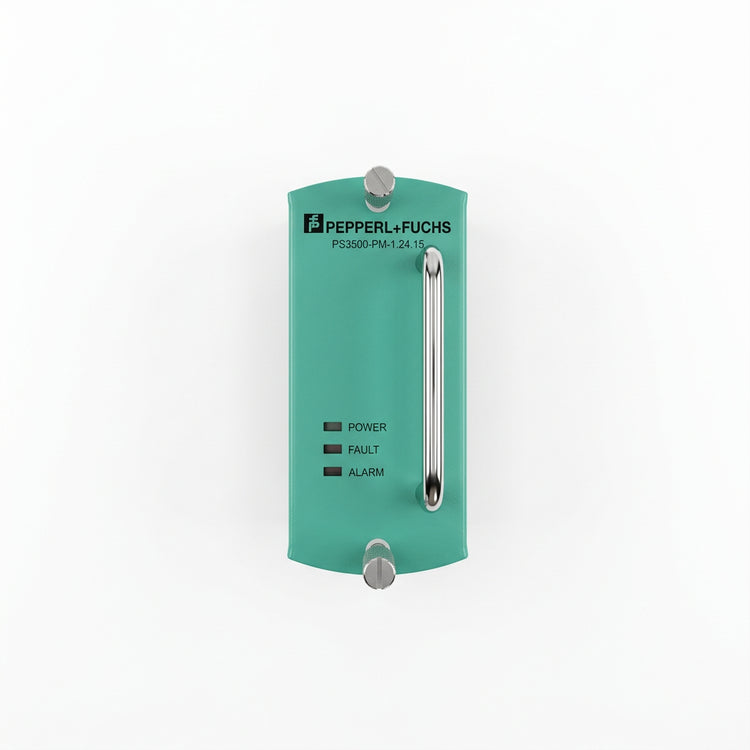

Built-In Diagnostics: Includes power, fault, and alarm LED indicators plus a relay fault signal.
-
Industrial Approvals: Listed with cULus and hazardous-area approvals for specified applications.
The PS3500-PM-1.24.15 delivers the stable power and redundancy capabilities required for compatible industrial control and process automation systems.
