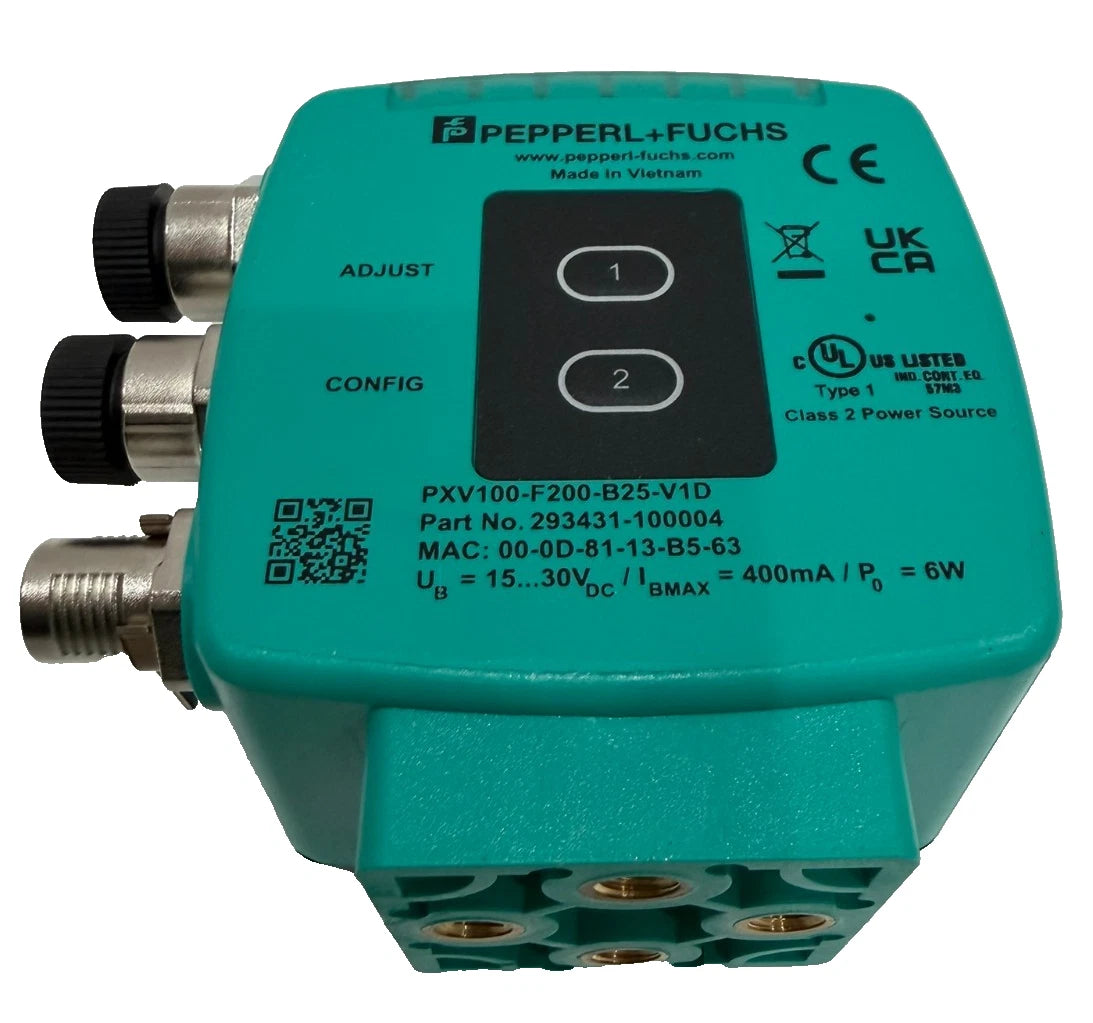

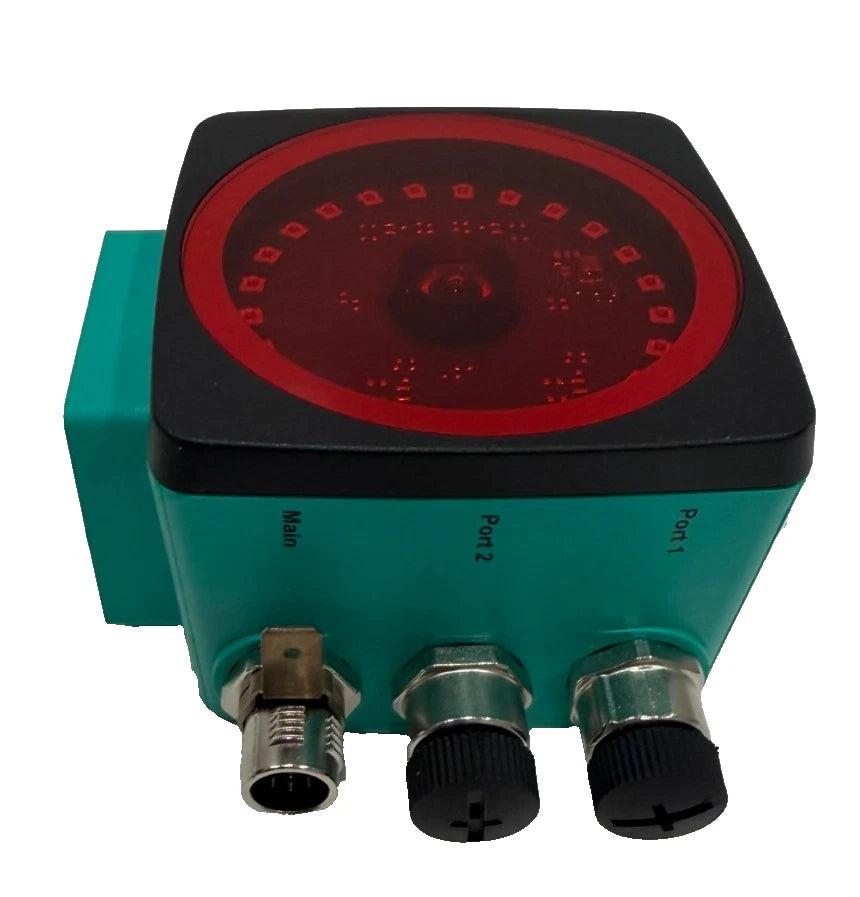

Pepperl+Fuchs PXV100-F200-B25-V1D Optical Positioning Reading Head
- Regular price
- $1,327.00
- Sale price
- $1,327.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PXV100-F200-B25-V1D
Description
The Pepperl+Fuchs PXV100-F200-B25-V1D is an optical reading head designed for non-contact positioning in automated material handling and industrial transport systems. Using Data Matrix code tape and EtherNet/IP communication, it provides precise position measurement with an accuracy of ±0.2 mm at travel speeds up to 8 m/s.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Sensors & Switches |
|
Part Number |
PXV100-F200-B25-V1D |
|
Subcategory |
Photoelectric Sensors |
|
Sensor Type |
Optical reading head |
|
Positioning Technology |
Data Matrix code tape |
|
Communication Interface |
EtherNet/IP |
|
Ethernet Interface |
100BASE-TX |
|
Additional Interface |
USB |
|
Measurement Accuracy |
±0.2 mm |
|
Maximum Passage Speed |
8 m/s |
|
Maximum Measuring Length |
10,000 m |
|
Read Distance |
100 mm |
|
Depth of Focus |
±50 mm |
|
Reading Field |
115 × 73 mm |
|
Scan Rate |
40 s⁻¹ |
|
Light Source |
Integrated red LED illumination |
|
Sensor Type |
CMOS, global shutter |
|
Operating Voltage |
15–30 V DC, PELV |
|
No-Load Supply Current |
Maximum 400 mA |
|
Power Consumption |
6 W |
|
Degree of Protection |
IP67 |
|
Housing Material |
PC/ABS |
|
Operating Temperature |
−20°C to +60°C |
|
Dimensions (H × W) |
70 × 70 mm |
|
Weight |
0.50 lb |
Information About PXV100-F200-B25-V1D
The PXV100-F200-B25-V1D is part of the Pepperl+Fuchs PXV series of optical positioning systems designed for continuous position detection over extended travel distances. Its CMOS image sensor with a global shutter reads Data Matrix code tape, supporting positioning along straight paths, curves, inclines, declines, and track switch points. The integrated red LED illumination, 100 mm reading distance, and ±50 mm depth of focus support reliable code acquisition under varying installation conditions. The unit features an integrated switch, 100BASE-TX Ethernet connectivity, a USB interface, and a PC/ABS housing rated IP67 for protection against dust and water ingress.
Key Features:
-
Non-contact positioning: Reads Data Matrix code tape to determine position without mechanical contact.
-
EtherNet/IP communication: Supports integration with industrial automation and positioning control networks.
-
Positioning accuracy: Provides a specified measurement accuracy of ±0.2 mm.
-
High travel speed: Supports passage speeds up to 8 m/s.
-
Extended measuring range: Measures travel distances up to 10,000 m when used with the appropriate code tape system.
-
CMOS global shutter: Captures code images using a global-shutter sensor for position detection.
-
Integrated red LED illumination: Provides lighting for optical code recognition at a 100 mm read distance.
-
Industrial protection: Uses a PC/ABS housing with IP67 protection and an operating temperature range of −20°C to +60°C.
The PXV100-F200-B25-V1D delivers the reliability and precision required for industrial positioning, automated material handling, and track-based transport systems.
