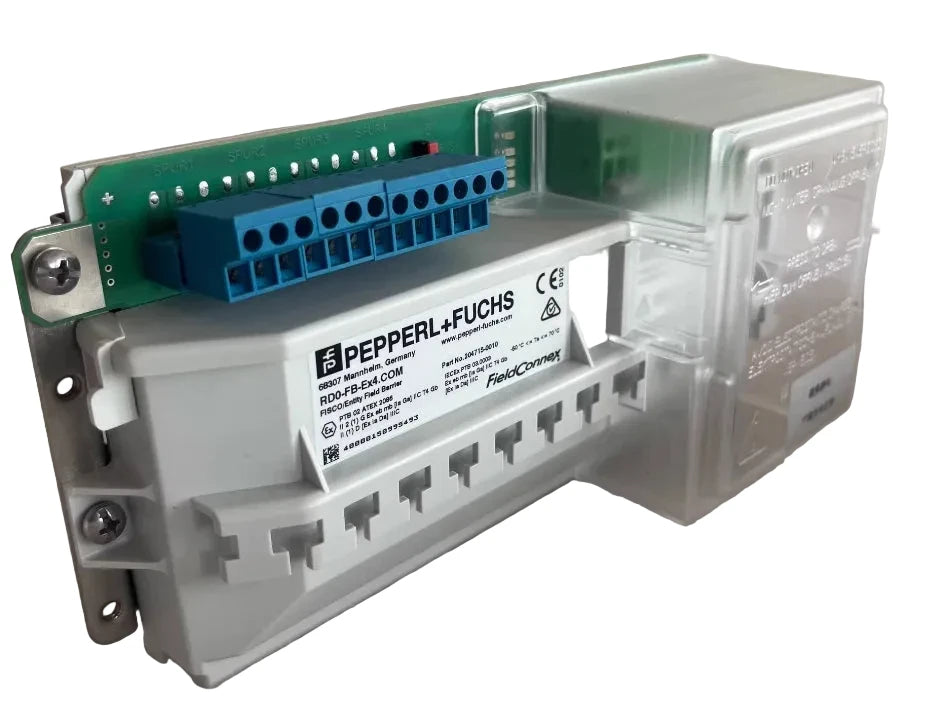

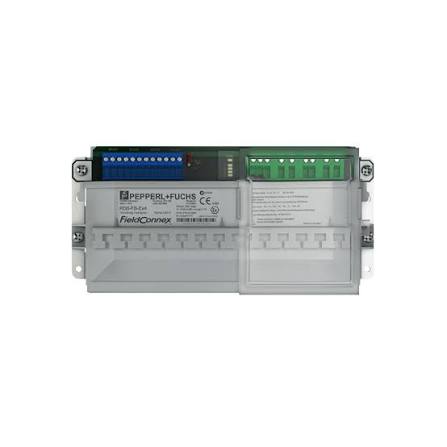

Pepperl+Fuchs RD0-FB-EX4.COM Fieldbus Barrier, 4 Outputs
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RD0-FB-EX4.COM
Description
The Pepperl+Fuchs RD0-FB-EX4.COM is a FieldBarrier designed to connect fieldbus trunk lines to intrinsically safe field devices in hazardous industrial environments. It provides four intrinsically safe outputs, plug-in terminals, and compatibility with FOUNDATION Fieldbus H1 and PROFIBUS PA networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation & Control |
| Part Number | RD0-FB-EX4.COM |
| Subcategory | Fieldbus Barriers |
| Product Family | FieldConnex |
| Device Type | Fieldbus barrier |
| Number of Outputs | 4 intrinsically safe outputs |
| Supported Fieldbus Protocols | FOUNDATION Fieldbus H1, PROFIBUS PA |
| Installation | Control cabinet, DIN rail mounting |
| Terminal Type | Fixed trunk terminals and plug-in output terminals |
| Maximum Conductor Cross-Section | 2.5 mm² |
| Output Rated Voltage | 10–13 V |
| Maximum Output Rated Current | 43 mA per output |
| Short-Circuit Current | 50 mA |
| Maximum Safe Trunk Voltage | 253 V AC |
| Maximum Output Voltage (Uₒ) | 15.75 V |
| Maximum Output Current (Iₒ) | 248 mA |
| Maximum Output Power (Pₒ) | 975 mW |
| Protection Rating | IP20 |
| Housing Material | Polycarbonate; PA 6.6 DIN-rail housing |
| Ambient Operating Temperature | −50°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Hazardous-Area Certification | ATEX; additional approvals depend on configuration |
| Certification Reference | PTB 02 ATEX 2086 |
| Weight | 2.31 lb |
Information About RD0-FB-EX4.COM
The RD0-FB-EX4.COM is a four-output fieldbus barrier from Pepperl+Fuchs designed for cabinet installation on a DIN rail. It provides intrinsically safe connections for compatible field instruments operating in hazardous areas while maintaining communication with the fieldbus trunk. Each output supports one field device and includes short-circuit current limitation. The unit supports FISCO and Entity installation concepts and features power and communication status indicators for system monitoring.
-
Fieldbus Compatibility: Supports FOUNDATION Fieldbus H1 and PROFIBUS PA.
-
Hazardous-Area Protection: Designed for fieldbus installations serving instruments in hazardous zones.
-
Short-Circuit Protection: Provides current limitation for each output.
-
Plug-In Terminals: Simplifies field wiring and maintenance.
-
DIN Rail Mounting: Designed for installation inside a control cabinet.
-
Status Indicators: Includes LEDs for power, communication, and error indication.
-
Installation Methods: Supports FISCO and Entity concepts.
The RD0-FB-EX4.COM delivers the reliability and precision required for intrinsically safe fieldbus communication, process instrumentation, and hazardous-area automation systems.
