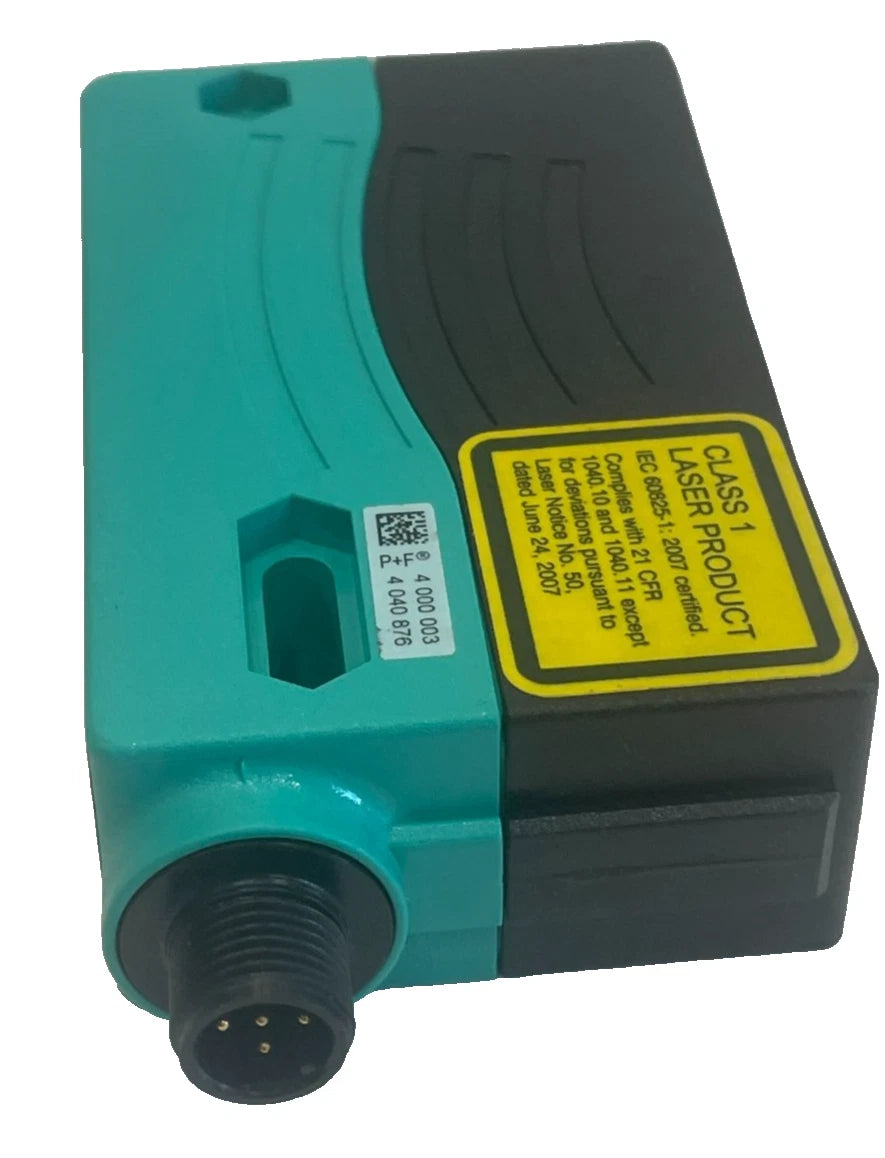

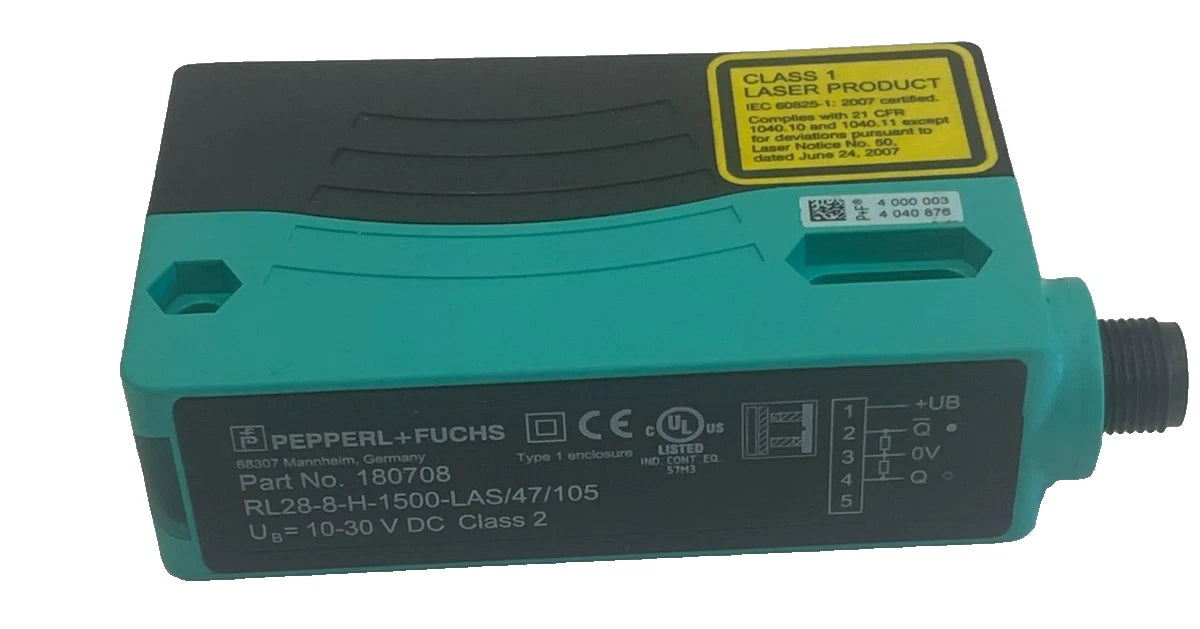

Pepperl+Fuchs RL28-8-H-1500-LAS/47/105 Laser Sensor 1.5 m
- Regular price
- $729.00
- Sale price
- $729.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RL28-8-H-1500-LAS/47/105
Description
The Pepperl+Fuchs RL28-8-H-1500-LAS/47/105 is a laser photoelectric sensor designed for reliable object detection with background suppression. It offers an adjustable detection range of 100–1500 mm, dual PNP switching outputs, and a visible red laser beam for detecting objects in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Transducers |
| Part Number | RL28-8-H-1500-LAS/47/105 |
| Subcategory | Laser Photoelectric Sensors |
| Sensor Type | Background suppression photoelectric sensor |
| Detection Range | 100–1500 mm |
| Operating Voltage | 10–30 V DC |
| Light Source | Visible red laser diode |
| Wavelength | 650 nm |
| Laser Class | Class 1 |
| Output Type | 2 complementary PNP outputs, open collector |
| Maximum Switching Current | 200 mA |
| Maximum Switching Voltage | 30 V DC |
| Switching Frequency | 140 Hz |
| Response Time | 3.5 ms |
| Operating Mode | Selectable light-on/dark-on |
| Connection | 5-pin M12 × 1 connector |
| Protection Rating | IP67 |
| Housing Material | ABS plastic |
| Operating Temperature | −10°C to +50°C |
| Dimensions (H × W × D) | 88 × 25.8 × 54.3 mm |
| Weight | 0.154 lb |
Information About RL28-8-H-1500-LAS/47/105
The RL28-8-H-1500-LAS/47/105 is a background suppression sensor from Pepperl+Fuchs, intended for non-contact object detection in industrial environments. Its Class 1 red laser operates at a wavelength of 650 nm, allowing detection of objects within a maximum range of 1.5 m. The sensor features complementary PNP outputs with selectable light-on and dark-on operation, supporting different control requirements. With a 10–30 V DC supply, IP67 protection, and an M12 connector, it is suited to factory automation and material handling applications.
-
Detection Range: Adjustable sensing range from 100 mm to 1500 mm.
-
Background Suppression: Helps distinguish target objects from backgrounds behind them.
-
Laser Light Source: Uses visible red laser light at 650 nm.
-
Laser Safety: Class 1 laser classification.
-
Switching Outputs: Two complementary PNP outputs with open-collector configuration.
-
Operating Voltage: Supports a 10–30 V DC supply.
-
Protection Rating: IP67-rated housing for protection against dust and water ingress.
-
Electrical Connection: Five-pin M12 × 1 connector.
The RL28-8-H-1500-LAS/47/105 delivers the reliability and precision required for object detection, conveyor monitoring, and industrial automation applications.
