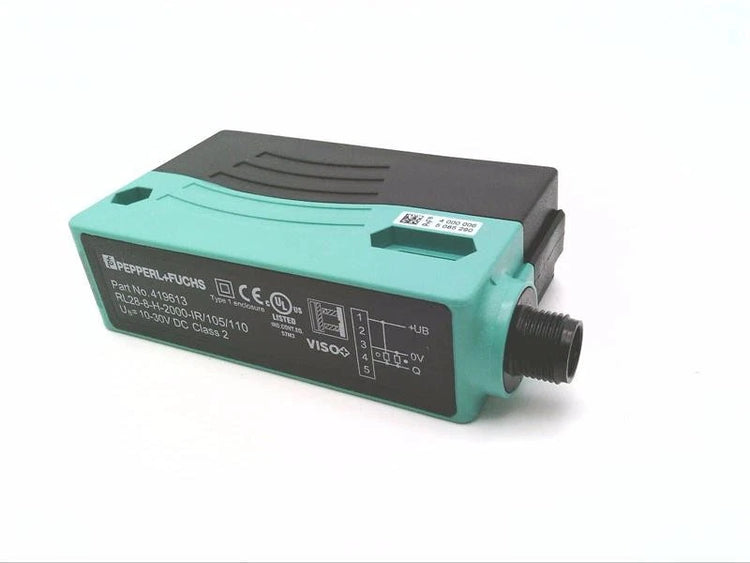

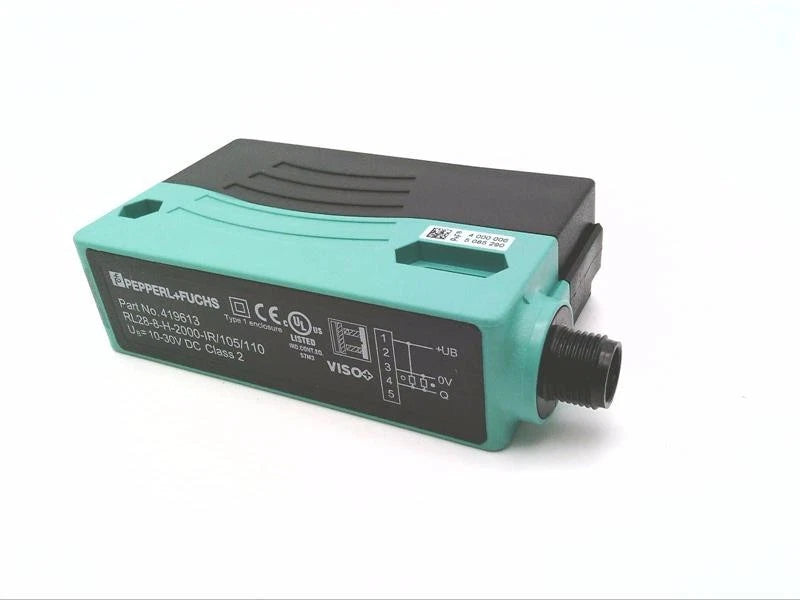

Pepperl+Fuchs RL28-8-H-2000-IR/105/110 Infrared Sensor 2 m
- Regular price
- $1,049.00
- Sale price
- $1,049.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RL28-8-H-2000-IR/105/110
Description
The Pepperl+Fuchs RL28-8-H-2000-IR/105/110 is a photoelectric background suppression sensor designed for reliable, non-contact object detection in industrial automation systems. It uses modulated infrared light and supports a sensing range of up to 2000 mm, making it suitable for conveyor monitoring, material handling, and automated production equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Transducers |
| Part Number | RL28-8-H-2000-IR/105/110 |
| Subcategory | Photoelectric Background Suppression Sensors |
| Sensor Type | Photoelectric background suppression sensor |
| Detection Range | 20–2000 mm |
| Minimum Adjustable Range | 20–200 mm |
| Maximum Adjustable Range | 20–2000 mm |
| Background Suppression | Maximum +10% of the upper detection-range limit |
| Light Source | IRED |
| Light Type | Modulated infrared light |
| Wavelength | 880 nm |
| Black/White Difference (6%/90%) | Less than 40% |
| Light Spot Diameter | Approximately 70 mm at 2000 mm |
| Operating Voltage | 10–30 V DC |
| No-Load Supply Current | ≤40 mA |
| Output Type | 1 push-pull output |
| Maximum Switching Voltage | 30 V DC |
| Maximum Switching Current | 100 mA |
| Switching Frequency | 250 Hz |
| Response Time | 2 ms |
| Switching Mode | Selectable light-on/dark-on |
| Connection | 5-pin M12 × 1 connector |
| Protection Rating | IP67 |
| Housing Material | ABS plastic |
| Ambient Operating Temperature | −40°C to +60°C |
| Storage Temperature | −40°C to +60°C |
| Dimensions (H × W × D) | 88 × 25.8 × 54.3 mm |
| Weight | 0.154 lb |
Information About RL28-8-H-2000-IR/105/110
The RL28-8-H-2000-IR/105/110 is a background suppression sensor from Pepperl+Fuchs that detects objects while reducing the influence of backgrounds beyond the target. It uses an infrared IRED light source operating at 880 nm and offers an adjustable detection range of 20–2000 mm. The sensor operates on 10–30 V DC and provides a push-pull switching output with selectable light-on or dark-on operation. Its IP67-rated ABS housing, five-pin M12 connector, and 2 ms response time support integration into industrial sensing applications.
-
Detection Range: Supports adjustable sensing distances from 20 to 2000 mm.
-
Background Suppression: Reduces unwanted switching caused by objects behind the target.
-
Infrared Light Source: Uses modulated infrared light at an 880 nm wavelength.
-
Push-Pull Output: Provides a single switching output with short-circuit and reverse-polarity protection.
-
Switching Logic: Supports selectable light-on and dark-on operation.
-
Fast Response: Offers a 2 ms response time and a 250 Hz switching frequency.
-
Ambient Light Resistance: Supports operation under ambient light levels up to 50,000 lux.
-
Environmental Protection: IP67-rated housing helps protect against dust and water ingress.
The RL28-8-H-2000-IR/105/110 delivers the reliability and precision required for object detection, conveyor control, and industrial process automation.
