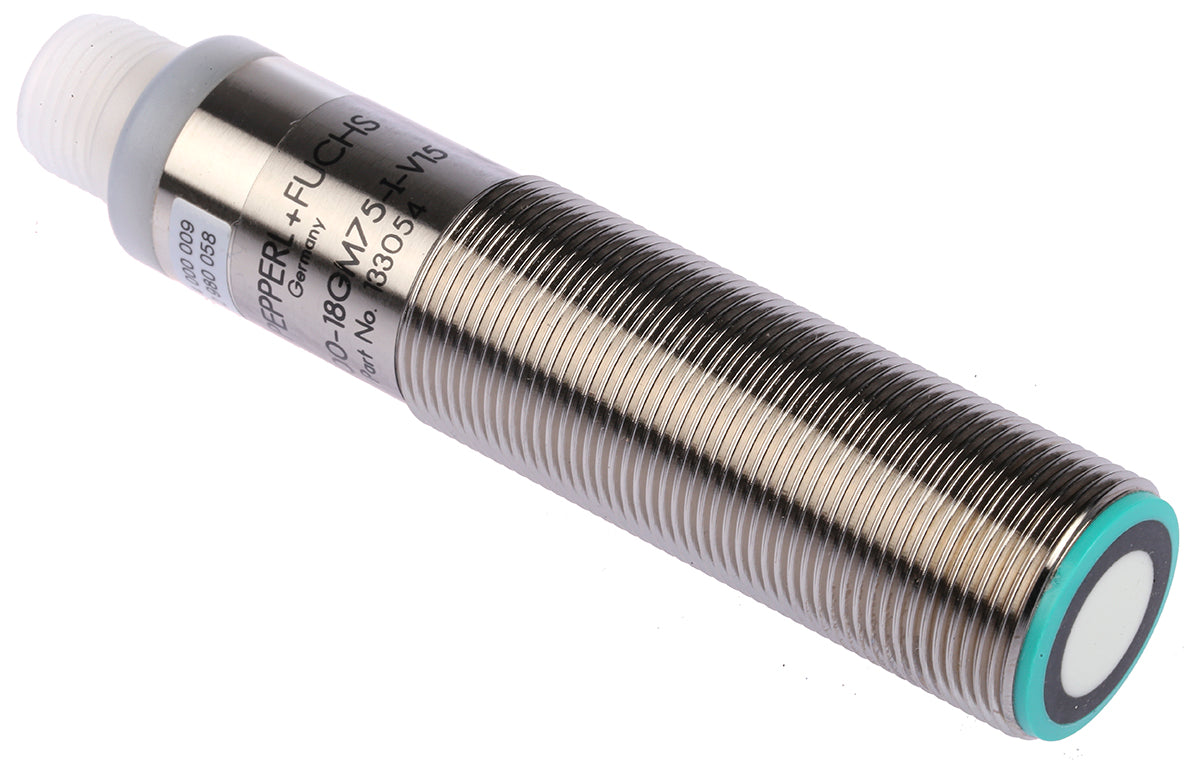

Pepperl+Fuchs UB500-18GM75-I-V15 Ultrasonic Sensor 500 mm
- Regular price
- $567.00
- Sale price
- $567.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UB500-18GM75-I-V15
Description
The Pepperl+Fuchs UB500-18GM75-I-V15 is an ultrasonic sensor designed for non-contact distance measurement and object detection in industrial automation systems. It provides a 30–500 mm sensing range and a 4–20 mA analog output, with an adjustable measuring window and selectable sound-beam width.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | UB500-18GM75-I-V15 |
| Subcategory | Ultrasonic Sensors |
| Sensor Type | Ultrasonic distance sensor |
| Sensing Range | 30–500 mm |
| Adjustment Range | 50–500 mm |
| Dead Band | 0–30 mm |
| Output Type | Analog current |
| Output Signal | 4–20 mA |
| Operating Voltage | 10–30 V DC |
| No-Load Supply Current | ≤ 45 mA |
| Response Delay | Approx. 50 ms |
| Repeat Accuracy | ±0.1% of full-scale value |
| Protection Rating | IP67 |
| Connection | M12 × 1, 5-pin connector |
| Housing Material | Nickel-plated brass |
| Operating Temperature | −25 to +70 °C (−13 to +158 °F) |
| Dimensions | 85 mm length × 18 mm diameter |
| Weight | 0.13 lb |
Information About UB500-18GM75-I-V15
The UB500-18GM75-I-V15 is a single-head ultrasonic sensor from Pepperl+Fuchs. It operates on a 10–30 V DC supply and measures distances up to 500 mm. Its 4–20 mA analog output allows measured distance to be transmitted to compatible control and monitoring equipment. The sensor also supports synchronization, a programming input, temperature compensation, and IP67 protection.
-
Sensing Range: 30–500 mm for non-contact object detection.
-
Analog Output: 4–20 mA signal for distance measurement.
-
Supply Voltage: 10–30 V DC.
-
Adjustable Measuring Window: Configurable evaluation limits from 50 to 500 mm.
-
Synchronization: Supports synchronized operation of multiple sensors.
-
Programming Input: Allows adjustment of the evaluation limits.
-
Environmental Protection: IP67-rated enclosure.
-
Electrical Connection: Five-pin M12 × 1 connector.
The UB500-18GM75-I-V15 delivers the reliability and precision required for industrial distance sensing, object positioning, and automated process monitoring.
