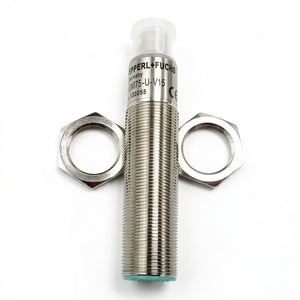

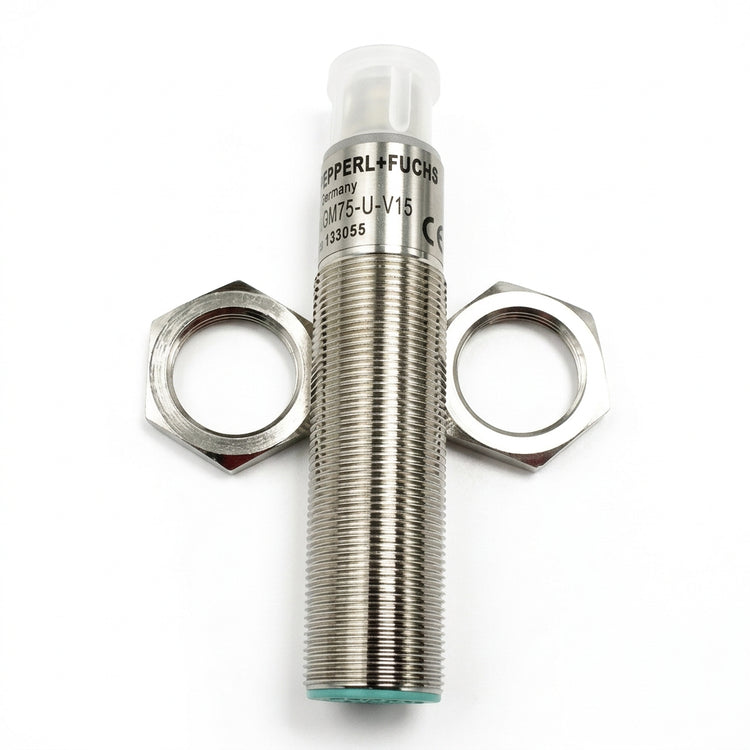

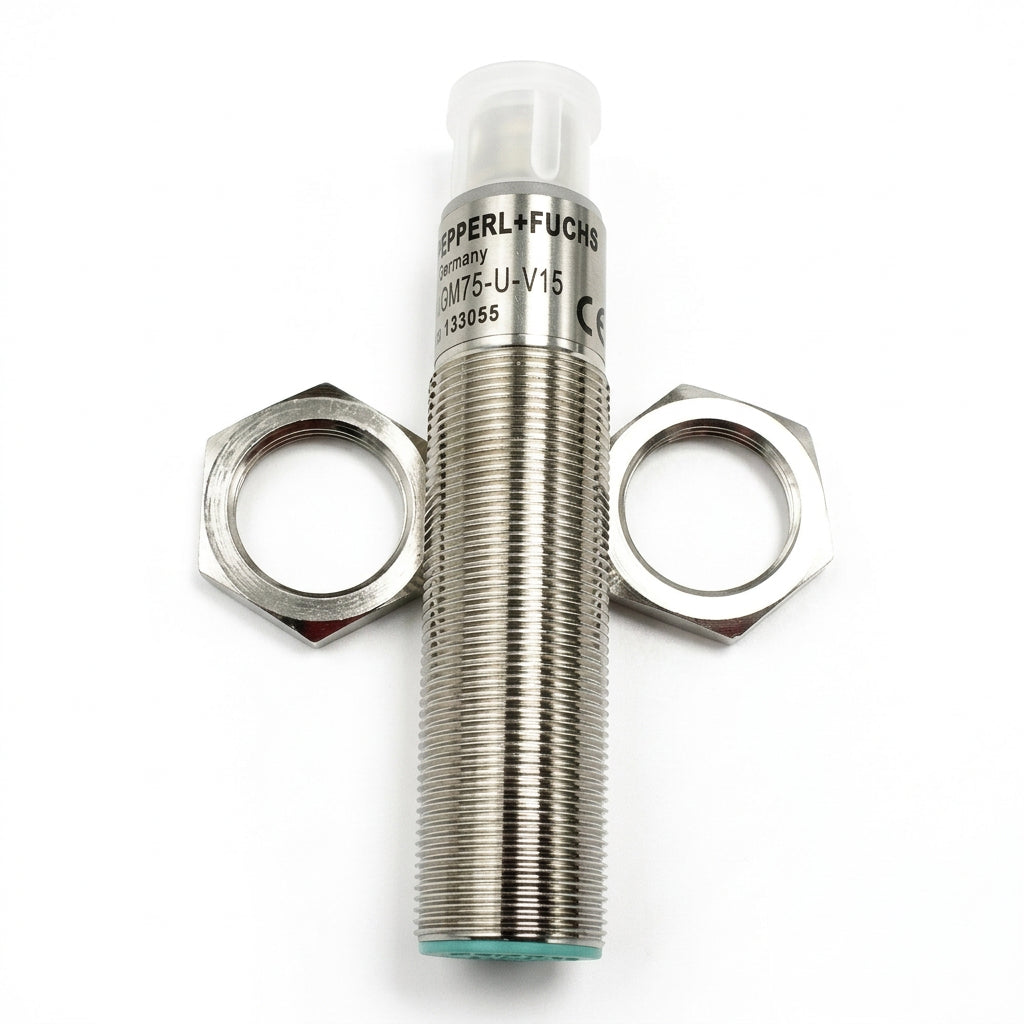

Pepperl+Fuchs UB500-18GM75-U-V15 Ultrasonic Sensor 133055
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UB500-18GM75-U-V15
Description
The Pepperl+Fuchs UB500-18GM75-U-V15 is an ultrasonic sensor designed for non-contact distance measurement and object detection in industrial automation systems. It provides a 30–500 mm sensing range and a 0–10 V analog output proportional to the measured distance. Its compact M18 cylindrical housing and IP67 protection make it suitable for installation in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Part Number | UB500-18GM75-U-V15 |
| Subcategory | Ultrasonic Sensors |
| Manufacturer Part ID | 133055 |
| Sensing Range | 30–500 mm |
| Adjustment Range | 50–500 mm |
| Dead Band | 0–30 mm |
| Operating Voltage | 15–30 V DC |
| Output Type | Analog voltage, 0–10 V |
| Transducer Frequency | Approximately 380 kHz |
| Connection | M12 × 1, 5-pin connector |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +70 °C |
| Dimensions | 18 mm diameter × 85 mm length |
| Weight | 0.13 lb |
Information About UB500-18GM75-U-V15
The UB500-18GM75-U-V15 belongs to Pepperl+Fuchs' ultrasonic sensor range and uses acoustic waves to detect objects without physical contact. It has an adjustable evaluation range of 50–500 mm, with a 30 mm near-field dead band. The sensor operates from a 15–30 V DC supply and provides a 0–10 V analog signal for compatible controllers and measurement systems. Its five-pin M12 connector, synchronization capability, and teach-in input support integration into industrial automation installations.
Key Features:
-
Ultrasonic Measurement: Detects objects and measures distance using acoustic signals.
-
30–500 mm Sensing Range: Supports short-range distance measurement and object detection.
-
0–10 V Analog Output: Provides a voltage signal representing the measured distance.
-
M18 Cylindrical Housing: Compact threaded design for industrial mounting.
-
15–30 V DC Supply: Compatible with common industrial DC power systems.
-
IP67 Protection: Designed to resist dust ingress and temporary immersion under specified conditions.
-
Teach-In Input: Allows configuration of the evaluation limits.
-
Synchronization Function: Supports coordinated operation with compatible ultrasonic sensors.
The UB500-18GM75-U-V15 delivers reliable non-contact measurement and analog distance feedback for compatible industrial automation applications.
