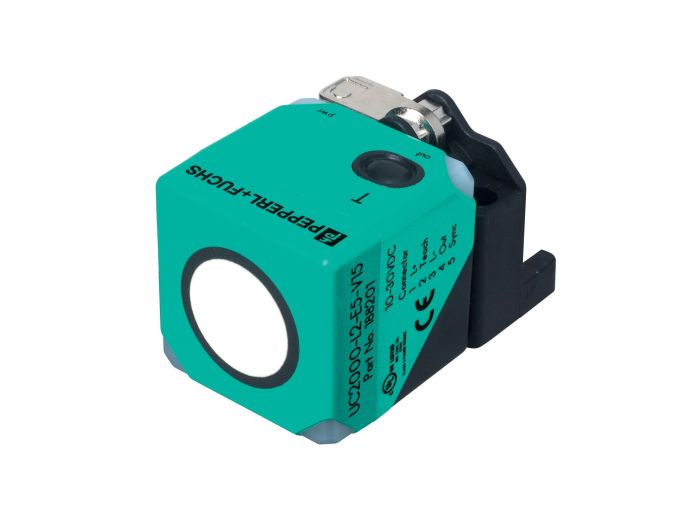

Pepperl+Fuchs UC2000-L2-I-V15 Programmable Ultrasonic Sensor 2 m
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UC2000-L2-I-V15
Description
The Pepperl+Fuchs UC2000-L2-I-V15 is a programmable ultrasonic sensor designed for non-contact distance measurement and object detection in industrial automation systems. It provides a sensing range of 60–2000 mm and a 4–20 mA analog output for continuous distance monitoring and process control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Transducers |
| Part Number | UC2000-L2-I-V15 |
| Subcategory | Ultrasonic Distance Sensors |
| Sensor Type | Programmable ultrasonic sensor |
| Sensing Range | 60–2000 mm |
| Adjustment Range | 80–2000 mm |
| Dead Band | 0–60 mm |
| Standard Target Plate | 100 × 100 mm |
| Transducer Frequency | Approximately 175 kHz |
| Operating Voltage | 10–30 V DC |
| No-Load Supply Current | ≤ 50 mA |
| Analog Output | 4–20 mA |
| Output Resolution | Evaluation range / 3200, minimum 0.4 mm |
| Characteristic Curve Deviation | ≤ 0.2% of full-scale value |
| Repeat Accuracy | ≤ 0.1% of full-scale value |
| Serial Interface | 9600 baud; programming adapter required |
| Synchronization | Bidirectional synchronization connection |
| Response Delay | Minimum 60 ms; factory setting 330 ms |
| Connection | 5-pin M12 × 1 connector |
| Protection Rating | IP67 |
| Housing Material | PA-GF35 glass-fiber-reinforced polyamide |
| Operating Temperature | −25°C to +70°C |
| Dimensions (H × W × L) | 40 × 40 × 40 mm |
| Weight | 0.254 lb |
Information About UC2000-L2-I-V15
The UC2000-L2-I-V15 is a single-head ultrasonic sensor from Pepperl+Fuchs with a rotatable sensor head and selectable sound beam width. It operates on a 10–30 V DC supply and uses an ultrasonic transducer frequency of approximately 175 kHz. Its analog output provides a 4–20 mA signal, with programmable evaluation limits and a serial interface for configuration using a compatible programming adapter. The sensor also supports synchronization with other sensors and features IP67 protection for industrial installation.
-
Sensing Range: Measures distances from 60 to 2000 mm.
-
Adjustable Range: Supports configuration across an 80–2000 mm adjustment range.
-
Analog Output: Provides a 4–20 mA signal for continuous distance measurement.
-
Programmable Operation: Allows adjustment of evaluation limits and sensor settings.
-
Rotatable Sensor Head: Supports flexible positioning during installation.
-
Selectable Sound Beam: Allows selection of beam width to suit the application.
-
Sensor Synchronization: Supports common-mode and multiplex operation with compatible sensors.
-
Environmental Protection: IP67-rated housing helps protect against dust and water ingress.
The UC2000-L2-I-V15 delivers the reliability and precision required for distance monitoring, level measurement, and industrial automation applications.
