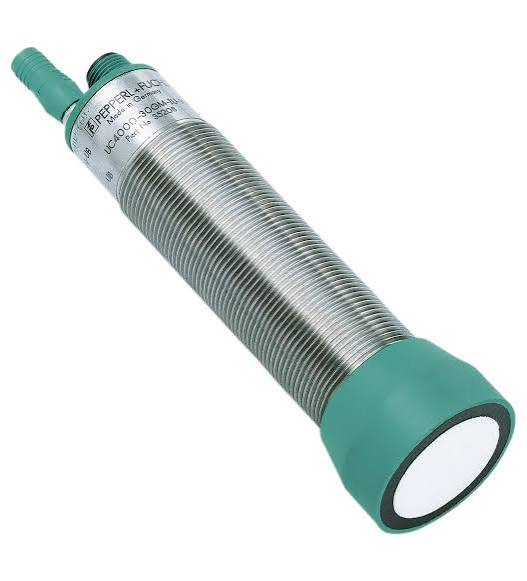

Pepperl+Fuchs UC4000-30GM-E6R2-V15 Ultrasonic Sensor 4 m
- Regular price
- $355.00
- Sale price
- $355.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UC4000-30GM-E6R2-V15
Description
The Pepperl+Fuchs UC4000-30GM-E6R2-V15 is an ultrasonic proximity sensor designed for non-contact distance measurement and object detection in industrial automation systems. It offers a sensing range of 200–4000 mm, two programmable PNP switching outputs, and configurable operating modes for a variety of industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Transducers |
| Part Number | UC4000-30GM-E6R2-V15 |
| Subcategory | Ultrasonic Proximity Sensors |
| Sensor Type | Single-head ultrasonic sensor |
| Sensing Range | 200–4000 mm |
| Adjustment Range | 240–4000 mm |
| Dead Band | 0–200 mm |
| Standard Target Plate | 100 × 100 mm |
| Transducer Frequency | Approximately 85 kHz |
| Operating Voltage | 10–30 V DC |
| No-Load Supply Current | ≤50 mA |
| Output Type | 2 programmable PNP switching outputs |
| Output Behavior | Selectable normally open / normally closed |
| Rated Operating Current | 200 mA per output |
| Voltage Drop | ≤2.5 V |
| Switching Frequency | ≤1 Hz |
| Repeat Accuracy | ≤0.1% of full-scale value |
| Range Hysteresis | 1% of adjusted operating range by default; programmable |
| Interface | RS-232, 9600 bit/s |
| Synchronization | Bidirectional; common-mode and multiplex operation |
| Response Delay | Minimum 145 ms; factory setting 440 ms |
| Connection | 5-pin M12 × 1 connector |
| Protection Rating | IP65 |
| Housing Material | Stainless steel (1.4305 / AISI 303), with PBT plastic parts |
| Operating Temperature | −25°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Dimensions | 108 mm length × 40 mm diameter |
| Weight | 0.397 lb |
Information About UC4000-30GM-E6R2-V15
The UC4000-30GM-E6R2-V15 is a single-head ultrasonic sensor from Pepperl+Fuchs with an M30 threaded housing and a 4 m maximum sensing distance. It operates on a 10–30 V DC supply and uses an ultrasonic transducer with an approximate frequency of 85 kHz. Two programmable PNP outputs support normally open or normally closed switching, while adjustable hysteresis and window modes allow application-specific configuration. The sensor also supports bidirectional synchronization, temperature compensation, and parameterization through an RS-232 interface.
-
Sensing Range: Measures distances from 200 to 4000 mm.
-
Dual Switching Outputs: Provides two programmable PNP outputs.
-
Flexible Switching Logic: Supports normally open and normally closed output behavior.
-
Configurable Detection Modes: Offers selectable hysteresis and window modes.
-
Parameterization Interface: Supports configuration using the ULTRA 3000 service program.
-
Temperature Compensation: Helps maintain measurement stability as temperature changes.
-
Sensor Synchronization: Supports common-mode and multiplex operation with compatible sensors.
-
Industrial Construction: Features a stainless-steel housing and IP65 protection.
The UC4000-30GM-E6R2-V15 delivers the reliability and precision required for distance monitoring, level detection, and industrial process automation.
