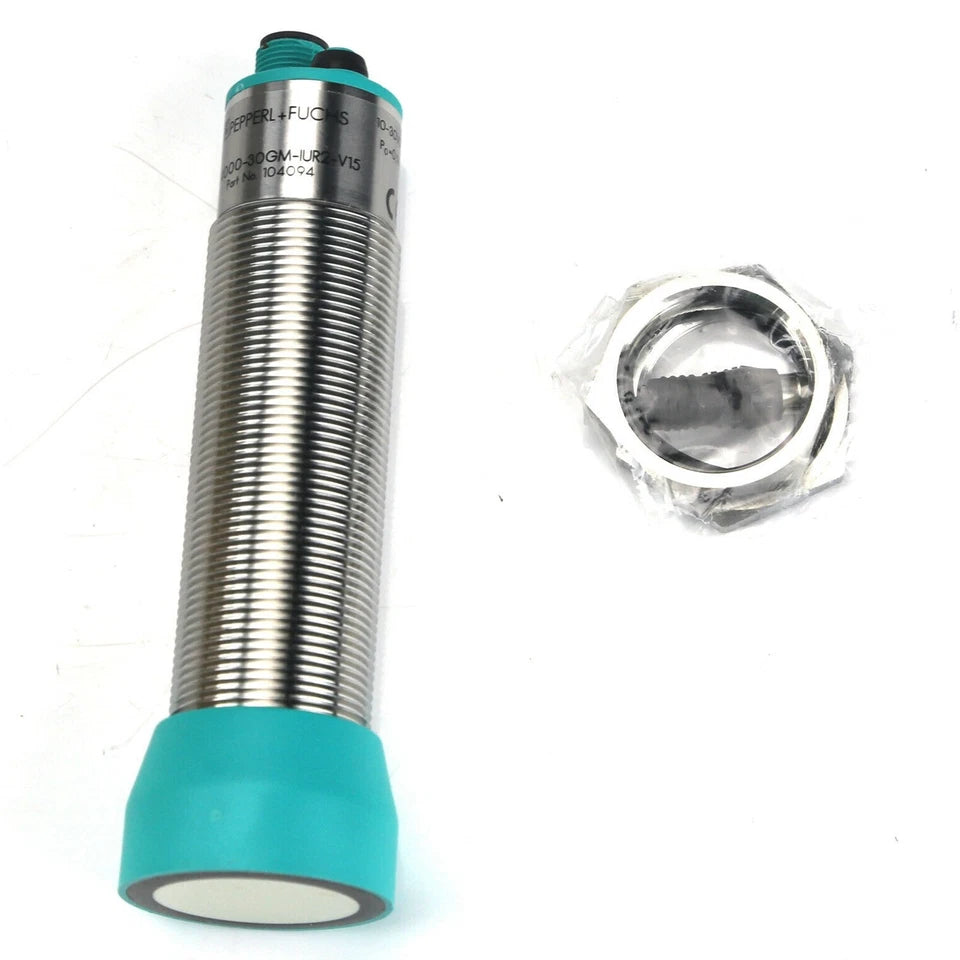

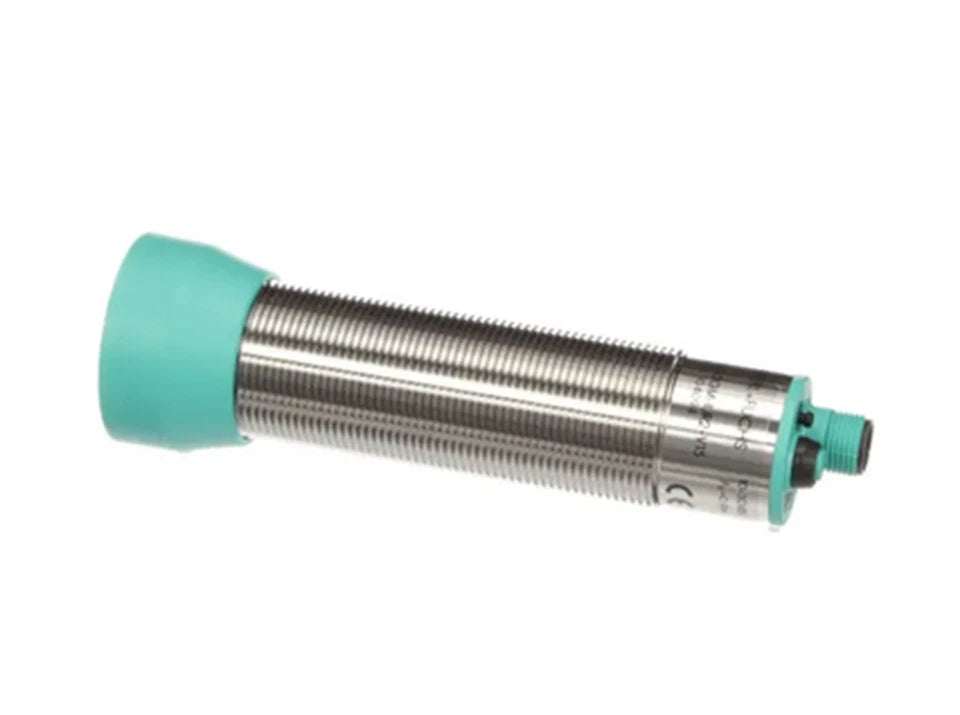

Pepperl+Fuchs UC4000-30GM-IUR2-V15 Ultrasonic Distance Sensor
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UC4000-30GM-IUR2-V15
Description
The Pepperl+Fuchs UC4000-30GM-IUR2-V15 is an industrial ultrasonic sensor designed for non-contact distance measurement and object detection. It provides an adjustable sensing range of 200 to 4,000 mm and configurable analog current or voltage outputs for integration with industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | UC4000-30GM-IUR2-V15 |
| Subcategory | Ultrasonic Sensors |
| Product Type | Ultrasonic Distance Sensor |
| Sensing Range | 200–4,000 mm |
| Adjustment Range | 240–4,000 mm |
| Dead Band | 0–200 mm |
| Transducer Frequency | Approximately 85 kHz |
| Analog Output | 0–10 V / 0–20 mA or 4–20 mA, configurable |
| Supply Voltage | 15–30 V DC |
| Connection Type | M12 × 1, 5-pin connector |
| Protection Rating | IP65 |
| Housing Material | Stainless Steel (AISI 303) with PBT Plastic Components |
| Operating Temperature | −13°F to 158°F (−25°C to 70°C) |
| Dimensions | 128 mm length × 40 mm diameter |
| Weight | 0.46 lb |
Information About UC4000-30GM-IUR2-V15
The UC4000-30GM-IUR2-V15 belongs to the Pepperl+Fuchs ultrasonic sensor family and uses acoustic waves to detect objects without physical contact. Its M30 threaded cylindrical housing supports industrial mounting, while the stainless-steel body and plastic components provide mechanical protection in demanding environments. The sensor includes temperature compensation, adjustable acoustic power and sensitivity, and synchronization options to support stable measurements. Configuration can be performed through the ULTRA 3000 service program, allowing the sensing behavior to be adjusted for the application.
-
Sensing Range: Detects objects at distances from 200 to 4,000 mm.
-
Measurement Adjustment: Provides an adjustable evaluation range of 240 to 4,000 mm.
-
Analog Outputs: Supports current and voltage output signals for industrial controllers.
-
Ultrasonic Operation: Uses acoustic sensing for non-contact object detection.
-
Temperature Compensation: Helps reduce measurement variation caused by temperature changes.
-
Parameterization: Supports application-specific configuration through the ULTRA 3000 service program.
-
Electrical Connection: Uses a five-pin M12 × 1 connector.
-
Environmental Protection: IP65-rated housing for protection against dust and water jets.
The UC4000-30GM-IUR2-V15 delivers the reliability and precision required for non-contact distance measurement and object detection in industrial automation systems.
