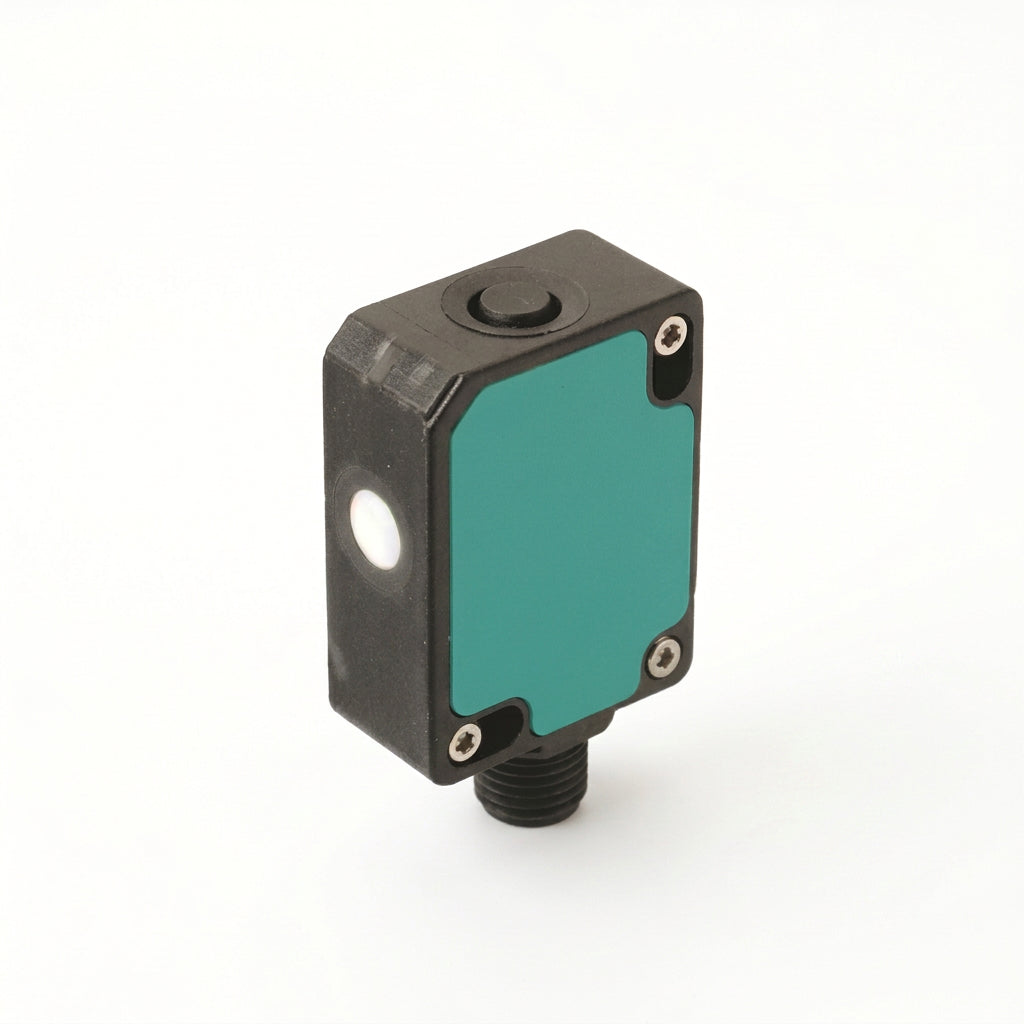

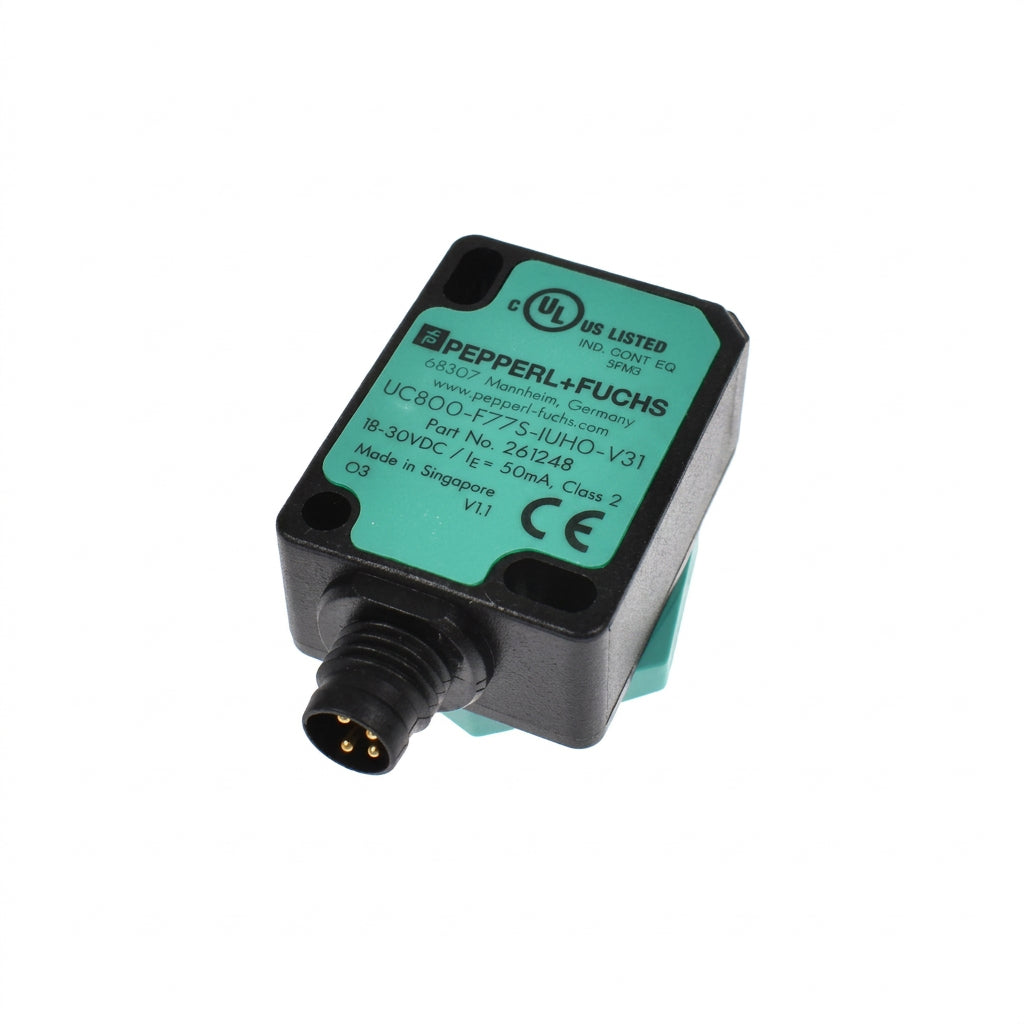

Pepperl+Fuchs UC800-F77S-IU-IO-V31 Ultrasonic Distance Sensor
- Regular price
- $1,342.00
- Sale price
- $1,342.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UC800-F77S-IU-IO-V31
Description
The Pepperl+Fuchs UC800-F77S-IU-IO-V31 is an ultrasonic sensor designed for non-contact distance measurement and object detection in industrial automation systems. It provides a sensing range of 60–800 mm and supports configurable analog output signals, along with IO-Link communication for parameterization.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | UC800-F77S-IU-IO-V31 |
| Subcategory | Ultrasonic Sensors |
| Product Type | Ultrasonic Distance Sensor |
| Sensing Range | 60–800 mm |
| Adjustment Range | 70–800 mm |
| Dead Band | 0–60 mm |
| Transducer Frequency | Approximately 255 kHz |
| Analog Output | 0–20 mA, 4–20 mA, or 0–10 V |
| Interface | IO-Link |
| Operating Voltage | 18–30 V DC |
| No-Load Supply Current | ≤ 50 mA |
| Protection Rating | IP67 |
| Connection Type | M8 × 1, 4-pin connector |
| Housing Material | Polycarbonate |
| Operating Temperature | −25°C to +60°C (current output); −25°C to +70°C (voltage output) |
| Dimensions | 31 × 21 × 23 mm (H × W × L) |
| Weight | 0.03 lb |
Information About UC800-F77S-IU-IO-V31
The UC800-F77S-IU-IO-V31 is an ultrasonic distance sensor manufactured by Pepperl+Fuchs for industrial sensing applications. It uses ultrasonic sound waves to detect objects without requiring physical contact. The sensor supports an adjustable detection range of 70–800 mm and offers current or voltage analog output options. Its IO-Link interface, temperature compensation, and synchronization capabilities support flexible integration into automated equipment.
-
Sensing Range: Detects objects at distances from 60 to 800 mm.
-
Adjustment Range: Configurable detection limits from 70 to 800 mm.
-
Analog Output: Supports 0–20 mA, 4–20 mA, or 0–10 V output options.
-
IO-Link Interface: Enables sensor parameterization and configuration.
-
Ultrasonic Detection: Measures distance without direct contact with the target.
-
Temperature Compensation: Helps maintain measurement accuracy as ambient temperature changes.
-
Synchronization: Supports common-mode and multiplex operation for coordinating multiple sensors.
-
Compact Housing: Polycarbonate enclosure measuring 31 × 21 × 23 mm, with IP67 protection.
The UC800-F77S-IU-IO-V31 delivers the reliability and precision required for industrial distance measurement, object detection, and automated control applications.
