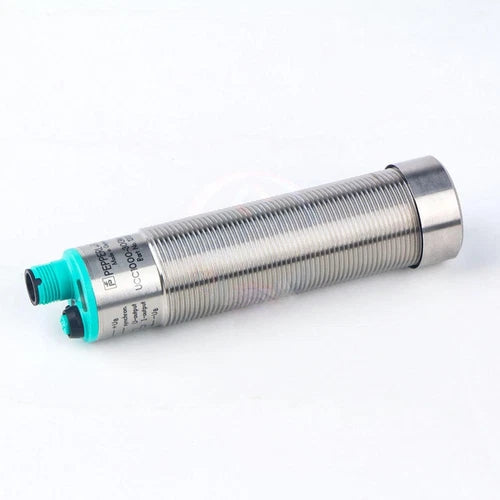

Pepperl+Fuchs UCC1000-30GM-IUR2-V15 Ultrasonic Sensor
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UCC1000-30GM-IUR2-V15
Description
The Pepperl+Fuchs UCC1000-30GM-IUR2-V15 is an ultrasonic sensor designed for non-contact distance measurement and object detection over a sensing range of 80 to 1,000 mm. It provides both analog current and voltage outputs, allowing measured distances to be integrated into compatible industrial control systems. Its stainless steel housing and PTFE-coated transducer surface support use in industrial environments where chemical resistance is important.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Part Number | UCC1000-30GM-IUR2-V15 |
| Subcategory | Ultrasonic Sensors |
| Product Type | Ultrasonic Distance Sensor |
| Sensing Range | 80–1,000 mm |
| Adjustment Range | 100–1,000 mm |
| Dead Zone | 0–80 mm |
| Operating Voltage | 10–30 V DC |
| Analog Current Output | 4–20 mA |
| Analog Voltage Output | 0–10 V |
| Connection | M12 × 1, 5-pin connector |
| Housing Material | Stainless steel 1.4305 / AISI 303 |
| Transducer Surface | PTFE-coated |
| Protection Rating | IP65 |
| Operating Temperature | 0 to +70 °C |
| Sensor Diameter | 30 mm nominal threaded body |
| Sensor Length | Approximately 115 mm |
| Weight | 0.37 lb |
Information About UCC1000-30GM-IUR2-V15
The UCC1000-30GM-IUR2-V15 belongs to the Pepperl+Fuchs ultrasonic sensor range and uses a single-head sensing design. Its adjustment range extends from 100 to 1,000 mm, with an unusable near zone of up to 80 mm. The sensor supports temperature compensation, synchronization, and application-specific parameterization through the ULTRA 3000 service program. A five-pin M12 connector provides the electrical interface, while the analog outputs can be configured for the required measurement response.
Key Features:
-
Ultrasonic Measurement: Detects objects and measures distance without physical contact.
-
1,000 mm Maximum Range: Provides a sensing range of 80–1,000 mm.
-
Dual Analog Outputs: Supports 4–20 mA current and 0–10 V voltage signals.
-
PTFE-Coated Transducer: Provides enhanced chemical resistance at the active sensing surface.
-
Stainless Steel Housing: Uses stainless steel 1.4305 / AISI 303 construction.
-
Temperature Compensation: Helps reduce measurement variation caused by temperature changes.
-
Synchronization Capability: Supports synchronized operation with compatible sensors.
-
M12 Five-Pin Connection: Provides a standardized connector interface for industrial installation.
The UCC1000-30GM-IUR2-V15 delivers non-contact distance measurement and configurable analog signaling for compatible industrial automation applications.
