Pepperl+Fuchs UDC-18GM-400-3E1-Y194142 Ultrasonic Double-Sheet Sensor
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UDC-18GM-400-3E1-Y194142
Description

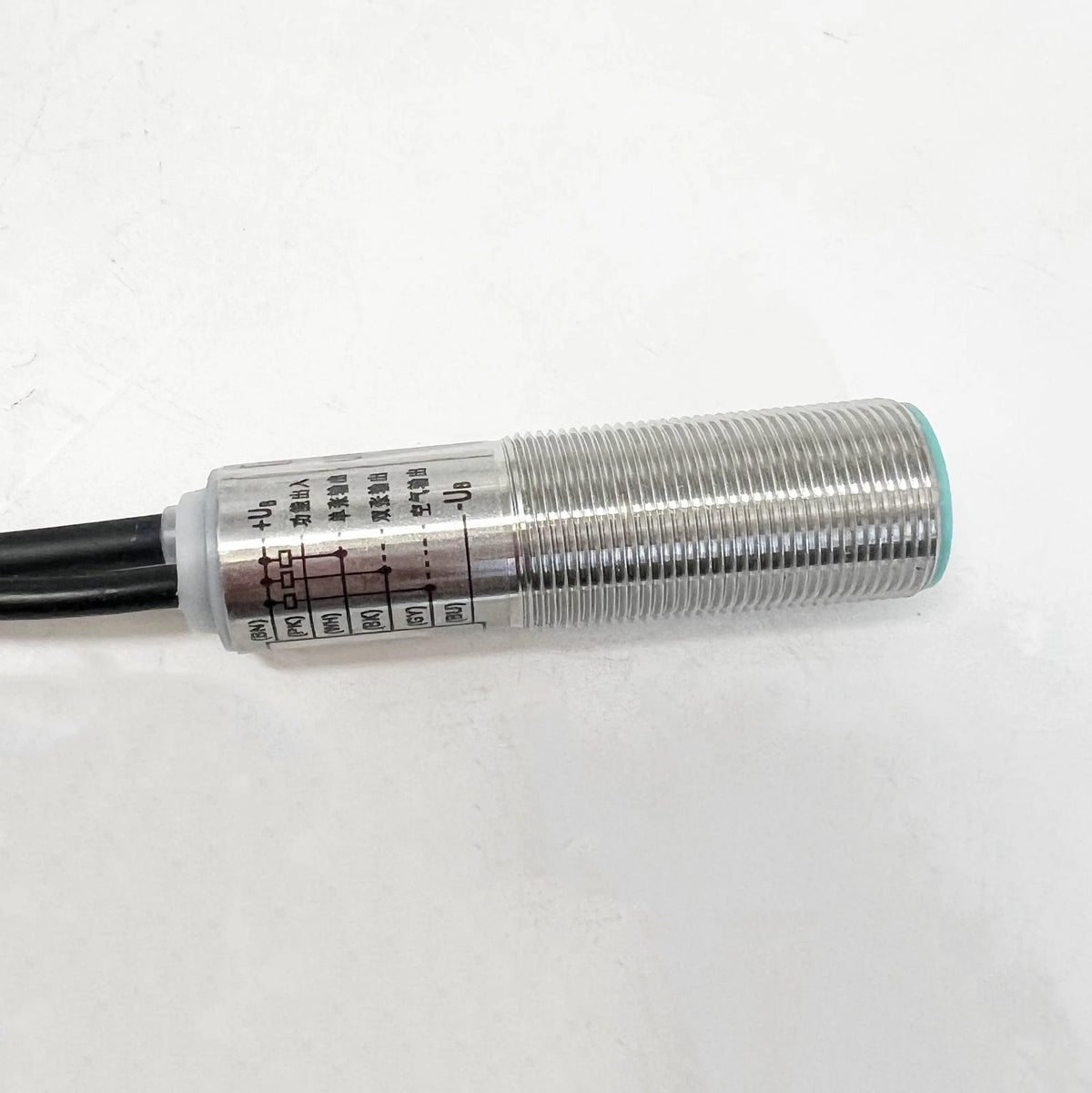

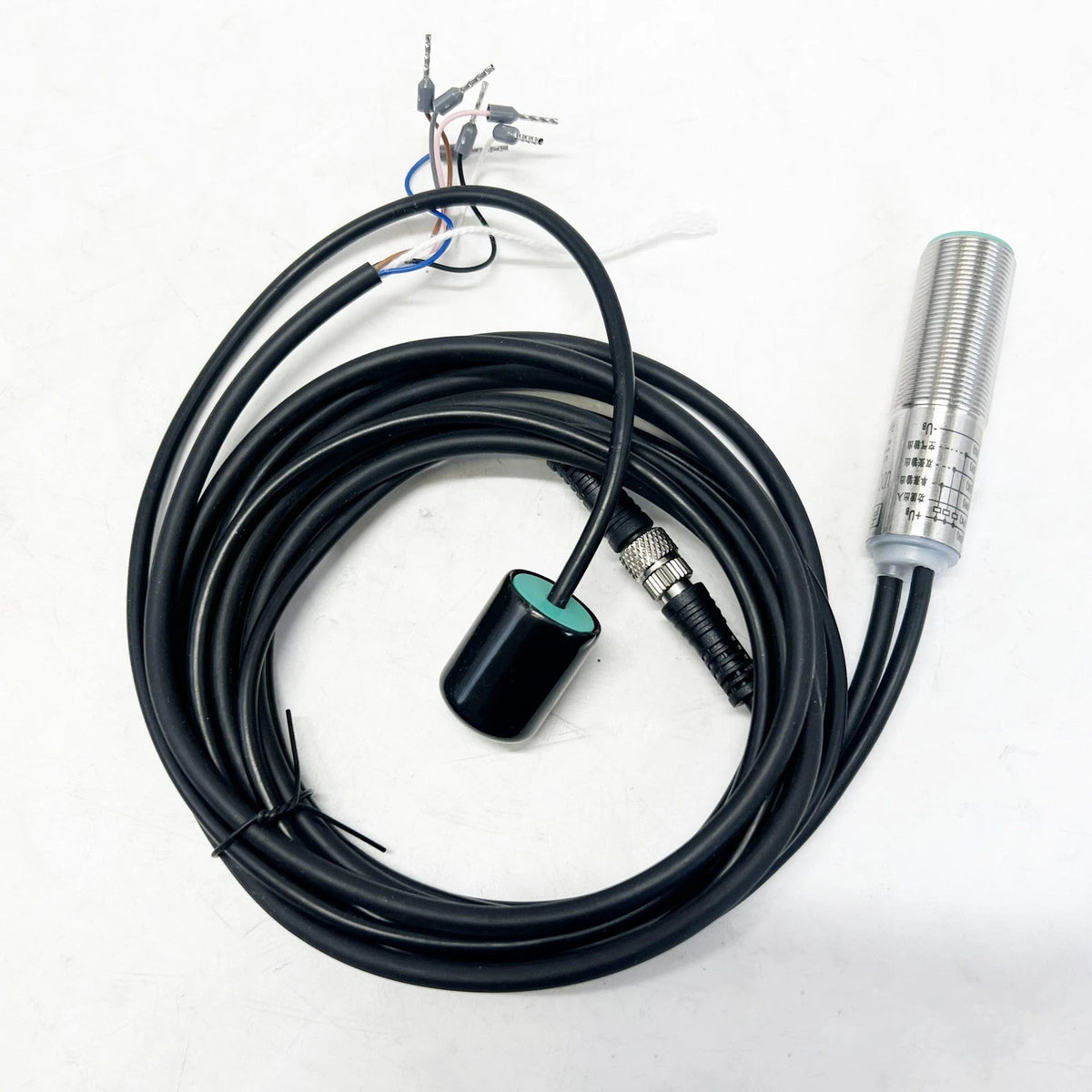

The Pepperl+Fuchs UDC-18GM-400-3E1-Y194142 is an ultrasonic double-sheet sensor designed to detect whether no sheet, a single sheet, or two overlapping sheets are present. It is suitable for paper handling, printing, converting, and other material-processing applications where overlapping sheets must be detected reliably. Its ultrasonic sensing technology is insensitive to printed patterns, colors, and shiny surfaces.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Switches |
| Part Number | UDC-18GM-400-3E1-Y194142 |
| Subcategory | Ultrasonic Double-Sheet Sensors |
| Product Type | Ultrasonic Double-Sheet Sensor |
| Sensing Range | 20–60 mm |
| Optimal Sensing Distance | 45 mm |
| Transducer Frequency | 395 kHz |
| Operating Voltage | 18–30 V DC |
| No-Load Supply Current | Less than 80 mA |
| Output Type | 3 NPN, normally closed |
| Rated Output Current | 3 × 100 mA |
| Protection Rating | IP67 |
| Connection | PVC cable, 2 m |
| Ambient Temperature | 0 to +60 °C |
| Dimensions | 18 mm diameter × 74 mm length |
| Weight | 0.33 lb |
Information About UDC-18GM-400-3E1-Y194142
The UDC-18GM-400-3E1-Y194142 belongs to the Pepperl+Fuchs UDC series of ultrasonic double-sheet monitoring systems. It operates over a sensing range of 20–60 mm, with an optimal sensor distance of approximately 45 mm. The unit uses three NPN normally closed switching outputs to indicate air, single-sheet, and double-sheet conditions. Its programmable functions, visible LED indicators, and IP67 protection rating support integration into industrial material-handling equipment.
Key Features:
-
Ultrasonic Double-Sheet Detection: Distinguishes between no sheet, one sheet, and two overlapping sheets.
-
20–60 mm Sensing Range: Operates within the specified sensor-to-material distance.
-
No Teach-In Required: Detects sheet conditions without a conventional teach-in procedure.
-
Three Switching Outputs: Provides NPN normally closed outputs for the three detection states.
-
Material Versatility: Suitable for paper, thin sheet metal, plastic films, and metal foils.
-
Surface Insensitivity: Detection is unaffected by printing, colors, and shiny surfaces.
-
Visible LED Indicators: Green, yellow, and red LEDs indicate single sheet, air, and double sheet.
-
IP67 Protection: Designed for protection against dust and temporary immersion under specified test conditions.
The UDC-18GM-400-3E1-Y194142 delivers reliable sheet monitoring for industrial paper-handling and material-processing systems.
