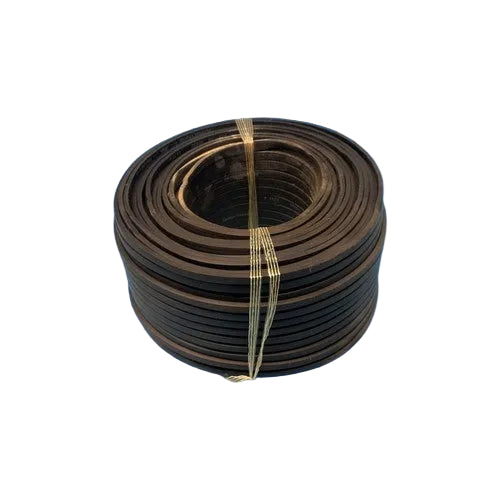

Pepperl+Fuchs VAZ-FK-S-BK AS-Interface Flat Cable 100 m 24 V
- Regular price
- $819.00
- Sale price
- $819.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VAZ-FK-S-BK
Description
The Pepperl+Fuchs VAZ-FK-S-BK is a two-core AS-Interface flat cable designed to carry auxiliary power up to 24 V in industrial automation installations. Featuring a black thermoplastic elastomer (TPE) sheath, a 1.5 mm² conductor cross-section, and a 100 m cable length, it supports power distribution to compatible AS-Interface system components.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Cable and Wire |
|
Part Number |
VAZ-FK-S-BK |
|
Subcategory |
Electrical Cable/Wire |
|
Product Type |
AS-Interface flat cable |
|
Application |
Auxiliary power distribution |
|
Nominal Voltage |
24 V |
|
Conductor Cross-Section |
1.5 mm² |
|
Core Colors |
Brown and blue |
|
Sheath Color |
Black, similar to RAL 9005 |
|
Insulation Material |
Thermoplastic elastomer (TPE) |
|
Sheath Material |
TPE rubber compound, EM3 |
|
Cable Length |
100 m |
|
Conductor Temperature, Normal Operation |
90°C |
|
Conductor Temperature, Short-Circuit |
200°C |
|
Ambient Temperature, Fixed Installation |
−40°C to +85°C |
|
Ambient Temperature, Flexing |
−25°C to +85°C |
|
Maximum Laying Tension |
50 N/mm², as specified |
|
Bending Radius |
According to DIN VDE 0298 Part 3, Table 2 |
|
Environmental Compliance |
RoHS compliant |
|
Weight |
14.55 lb |
Information About VAZ-FK-S-BK
The VAZ-FK-S-BK is an auxiliary power cable designed for AS-Interface installations where separate power distribution is required alongside the communication network. Its flat profile and flexible TPE construction support installation in industrial environments, with material properties specified for fixed and flexing applications. The two conductors are color-coded brown and blue, simplifying identification during connection and maintenance. The cable supports conductor temperatures up to 90°C during normal operation and up to 200°C under short-circuit conditions, subject to the specified operating requirements.
Key Features:
-
AS-Interface auxiliary power cable: Designed to distribute auxiliary voltage in compatible AS-Interface installations.
-
24 V nominal voltage: Supports auxiliary power applications with a nominal voltage of 24 V.
-
Two-core construction: Includes brown and blue conductors for circuit identification.
-
1.5 mm² conductor cross-section: Provides the specified conductor size for power distribution.
-
Thermoplastic elastomer insulation: Uses TPE insulation and a rubber compound sheath for industrial cable applications.
-
100 m cable length: Supplied as a 100-meter cable for installation across equipment and automation systems.
-
Wide temperature tolerance: Supports fixed-installation ambient temperatures from −40°C to +85°C and flexing conditions from −25°C to +85°C.
-
RoHS compliance: Meets the stated restriction-of-hazardous-substances requirements.
The VAZ-FK-S-BK delivers the reliability and precision required for auxiliary power distribution in AS-Interface industrial automation systems.
