Pepperl+Fuchs VAZ-FK-S-YE 100 m AS-Interface Flat Cable
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VAZ-FK-S-YE
Description

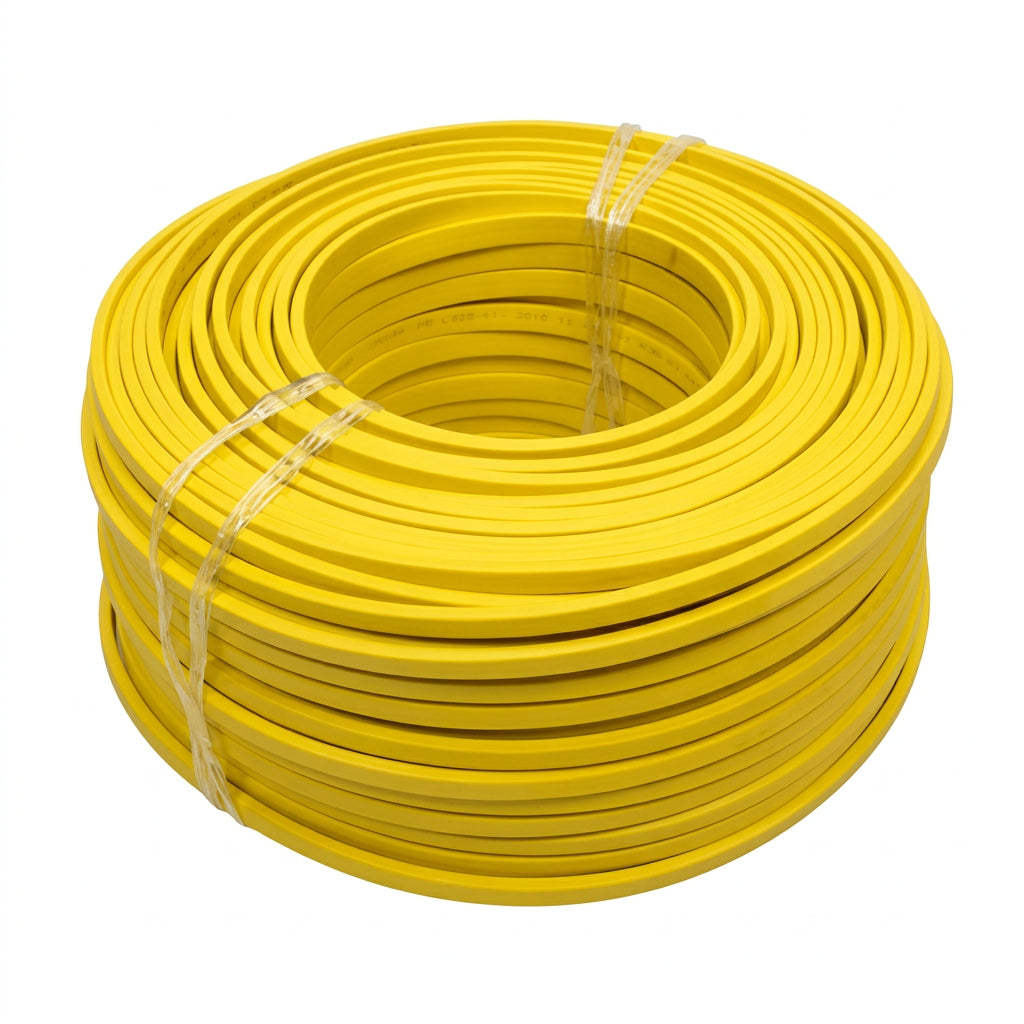

The Pepperl+Fuchs VAZ-FK-S-YE is a yellow AS-Interface flat cable designed to carry bus power and communication signals in compatible industrial automation networks. It features two conductors with a 1.5 mm² cross-section and a cable-piercing connection design that allows compatible AS-i devices to connect without conventional wire stripping. Its flexible thermoplastic elastomer construction is designed for industrial indoor installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Cables & Connectivity |
| Part Number | VAZ-FK-S-YE |
| Subcategory | AS-Interface Flat Cables |
| Product Type | AS-Interface Bus Cable |
| Cable Length | 100 m (328.1 ft) |
| Number of Conductors | 2 |
| Conductor Cross-Section | 1.5 mm² |
| Nominal Voltage | 30.5 V |
| Conductor Colors | Brown and blue |
| Sheath Color | Yellow, similar to RAL 1012 |
| Cable Material | Rubber compound / rubber-based insulation |
| Operating Temperature, Fixed Installation | −40 to +85 °C |
| Operating Temperature, Flexing | −25 to +85 °C |
| Halogen-Free | Yes; PVC-free |
| Weight | 14.67 lb |
Information About VAZ-FK-S-YE
The VAZ-FK-S-YE is part of Pepperl+Fuchs' AS-Interface cabling range, used to connect compatible sensors, actuators, and interface modules. Its two conductors are color-coded brown and blue, and the cable's shaped profile helps prevent reverse-polarity connections with compatible piercing connectors. The cable uses a rubber-based insulating material and has a yellow sheath similar to RAL 1012. The standard version is intended for indoor bus-power wiring; the manufacturer specifies black-sheathed cable for outdoor use.
Key Features:
-
AS-Interface Bus Cable: Designed for compatible industrial AS-i networks.
-
Two-Core Construction: Includes brown and blue conductors for the bus connection.
-
1.5 mm² Conductor Cross-Section: Supports the specified cable configuration.
-
Cable-Piercing Connection: Enables connection with compatible AS-i piercing terminals.
-
Polarity-Keyed Profile: Helps prevent reverse-polarity connections when used with compatible connectors.
-
Yellow Sheath: Uses a yellow color similar to RAL 1012 for identification.
-
Halogen-Free Construction: Specified as PVC-free by the manufacturer.
-
100 m Length: Supplied in a standard 100-meter cable length.
The VAZ-FK-S-YE delivers the bus-wiring capability and installation flexibility required for compatible indoor AS-Interface automation systems.
