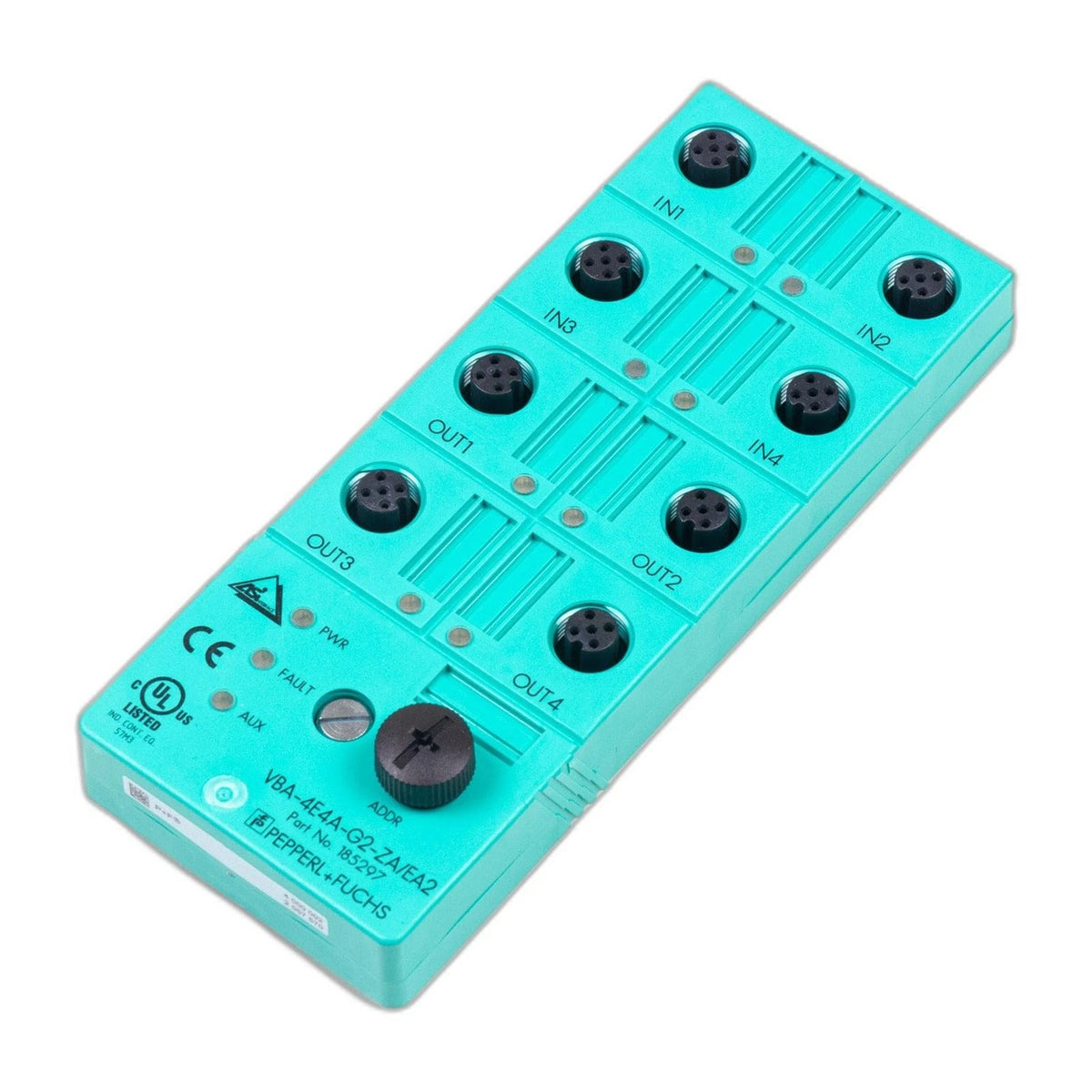

Pepperl+Fuchs VBA-4E4A-G2-ZA/EA2 AS-Interface Sensor/Actuator Module
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VBA-4E4A-G2-ZA/EA2
Description
The Pepperl+Fuchs VBA-4E4A-G2-ZA/EA2 is an AS-Interface sensor/actuator module with four PNP inputs and four electronic PNP outputs. It connects field sensors and loads to an AS-Interface network, supplying the inputs from the bus and the outputs from an external auxiliary source.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Communication & I/O |
| Part Number | VBA-4E4A-G2-ZA/EA2 |
| Subcategory | AS-Interface Sensor/Actuator Modules |
| Housing Series | G2 flat module |
| Node Type / Profile | A/B node / S-7.A.E |
| AS-Interface Compatibility | V3.0; gateway specification ≥V3.0 |
| AS-Interface Operating Voltage | 26.5–31.6 V |
| Rated Operating Current | ≤40 mA without sensors; maximum 220 mA |
| Auxiliary Output Supply | 20–30 V DC PELV |
| Inputs | 4 PNP inputs for two-/three-wire sensors; alternatively 2 four-wire PNP sensors |
| Sensor Supply Capacity | ≤180 mA at ≤40°C; ≤140 mA at ≤60°C; overload and short-circuit protected |
| Input Response | Signal delay <2 ms; signal frequency ≤250 Hz |
| Outputs | 4 electronic PNP outputs, overload and short-circuit protected |
| Output Current Capacity | 0.5 A per output; 2 A total |
| Output Voltage | ≥Auxiliary supply voltage −0.5 V |
| Connections | Yellow/black flat cables via cable piercing; M12 field connectors |
| Housing / Protection / Mounting | PBT / IP67 / mounting plate |
| Operating Conditions | −25 to +60°C; indoor use; ≤85% relative humidity, non-condensing |
| Weight | 150 g (0.33 lb) |
Information About VBA-4E4A-G2-ZA/EA2

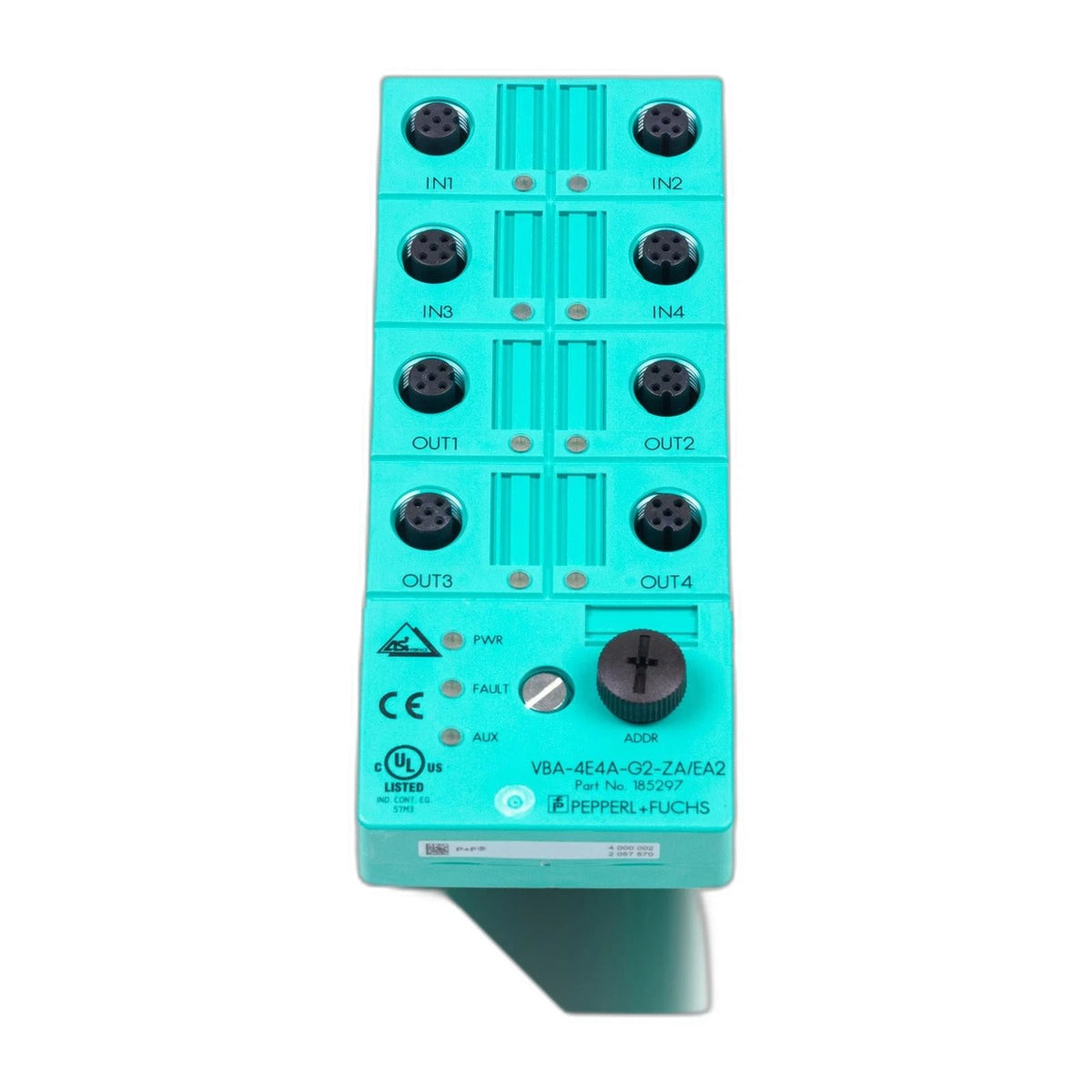

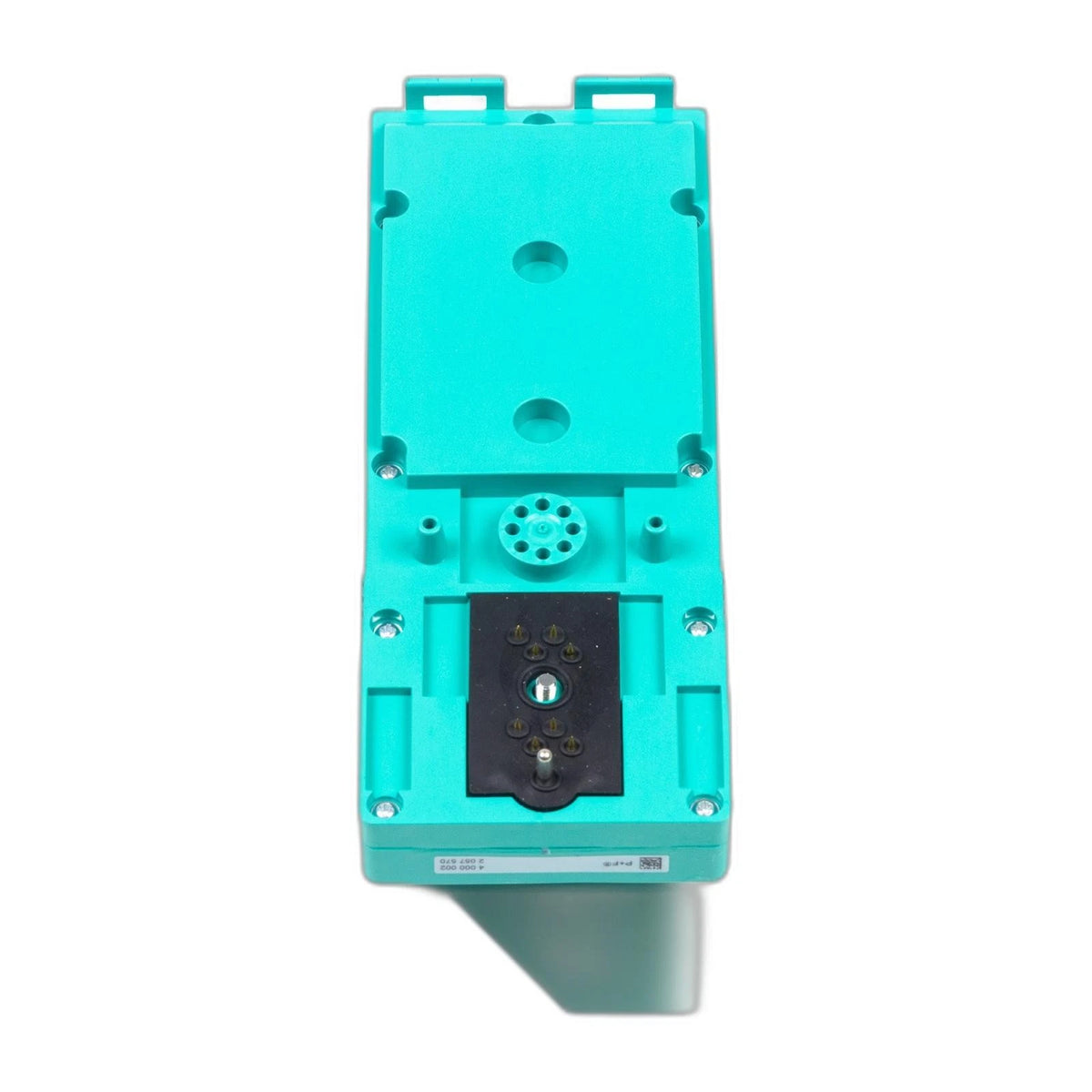

The VBA-4E4A-G2-ZA/EA2 is a G2 flat module configured as an A/B node under AS-Interface specification V3.0. Its S-7.A.E profile requires a gateway supporting specification V3.0 or later. Cable-piercing contacts connect the yellow AS-Interface and black auxiliary-power flat cables, while M12 connectors provide field I/O connections. The PBT housing incorporates indicators for bus power, auxiliary voltage, channel states, and faults.
Key Features:
- Four Sensor Inputs: Accepts four two- or three-wire PNP sensors, or two four-wire PNP sensors.
- Four Electronic Outputs: Provides four protected PNP outputs for compatible DC loads.
- Output Capacity: Supports up to 0.5 A per output and 2 A total.
- AS-Interface Communication: Operates as an A/B node using AS-Interface V3.0 and profile S-7.A.E.
- Auxiliary Output Supply: Powers the outputs from an external 20–30 V DC PELV source.
- Field Connections: Uses cable-piercing flat-cable contacts and M12 input/output connectors.
- Diagnostic Indicators: Displays power, channel states, communication faults, and overload conditions.
- Protected Housing: Uses an IP67-rated PBT enclosure with mounting-plate installation.
The VBA-4E4A-G2-ZA/EA2 delivers the reliability and precision required for distributed sensor and actuator interfacing in compatible AS-Interface automation systems.
