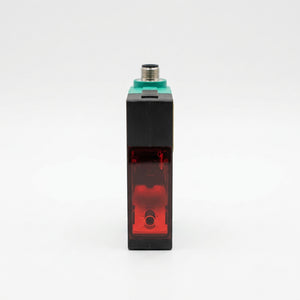

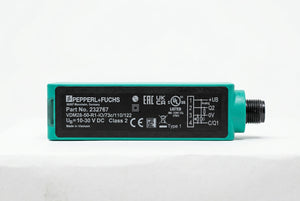

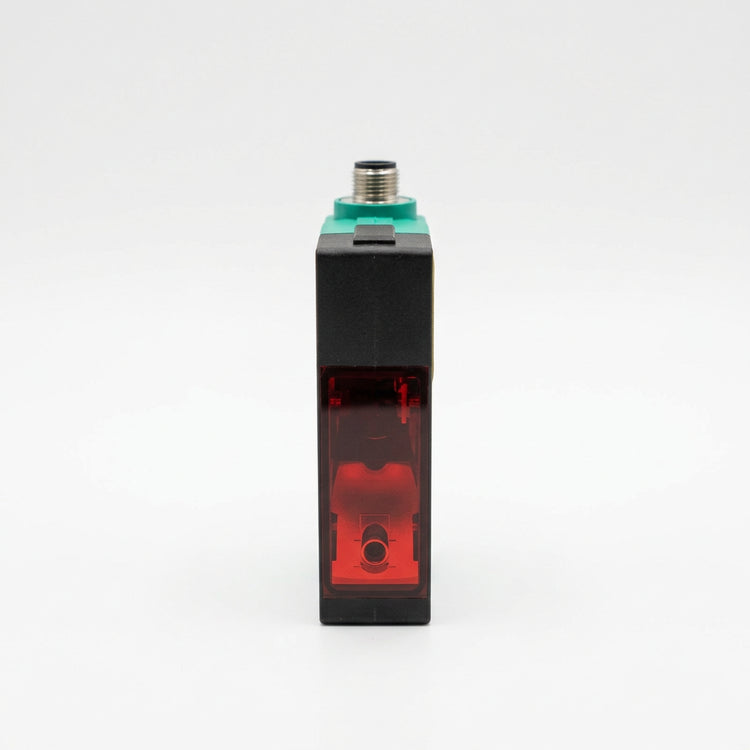

Pepperl+Fuchs VDM28-50-R1-IO/73C/110/122 Laser Distance Sensor
- Regular price
- $902.00
- Sale price
- $902.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VDM28-50-R1-IO/73C/110/122
Description
The Pepperl+Fuchs VDM28-50-R1-IO/73C/110/122 is a laser distance sensor designed to measure distances to a reflector over a range of 0.2 to 50 meters. It uses Pulse Ranging Technology (PRT), visible red laser light, and an IO-Link interface for measurement data and industrial automation integration. An additional 4–20 mA analog output and push-pull switching output support connection to compatible control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Switches |
| Part Number | VDM28-50-R1-IO/73C/110/122 |
| Subcategory | Laser Distance Sensors |
| Product Type | Retroreflective Laser Distance Sensor |
| Manufacturer Product ID | 232767 |
| Measuring Range | 0.2–50 m |
| Measuring Technology | Pulse Ranging Technology (PRT) |
| Reference Reflector | OFR-100/100 |
| Laser Wavelength / Class | 660 nm / Class 1 |
| Supply Voltage | 10–30 V DC; 18–30 V DC in IO-Link mode |
| Communication Interface | IO-Link V1.0, COM2, 38.4 kbit/s |
| Analog Output | 4–20 mA |
| Switching Output | Push-pull, max. 30 V DC / 100 mA |
| Absolute Accuracy | ±25 mm |
| Repeat Accuracy | <5 mm |
| Protection Rating | IP67 |
| Connection | 4-pin M12 × 1 connector |
| Dimensions (H × W × D) | 88 × 25.8 × 54.6 mm |
| Operating Temperature | −30 to +55 °C |
| Weight | 0.20 lb |
Information About VDM28-50-R1-IO/73C/110/122
The VDM28-50-R1-IO/73C/110/122 belongs to Pepperl+Fuchs' VDM28 series of industrial distance sensors. Its retroreflective measuring method uses a reference reflector, specified as OFR-100/100, to measure distances up to 50 meters. The sensor supports IO-Link V1.0 in COM2 mode at 38.4 kbit/s, with a minimum cycle time of 2.3 ms and 16-bit process data. Its IP67-rated housing, M12 connector, and wide operating-temperature range support use in demanding industrial environments.
Key Features:
-
50 m Measuring Range: Measures distances from 0.2 to 50 meters using a compatible reflector.
-
Pulse Ranging Technology: Uses PRT for repeatable distance measurement.
-
Visible Red Laser: Operates at a wavelength of 660 nm.
-
Class 1 Laser: Designed to meet the specified Class 1 laser classification.
-
IO-Link Interface: Supports IO-Link V1.0 communication for industrial automation.
-
Analog Current Output: Provides a 4–20 mA measurement output.
-
Push-Pull Switching Output: Supports switching signals with short-circuit and reverse-polarity protection.
-
IP67 Protection: Provides dust-tight construction and protection against temporary immersion under specified test conditions.
The VDM28-50-R1-IO/73C/110/122 delivers long-range distance measurement and flexible signal integration for compatible industrial automation applications.
