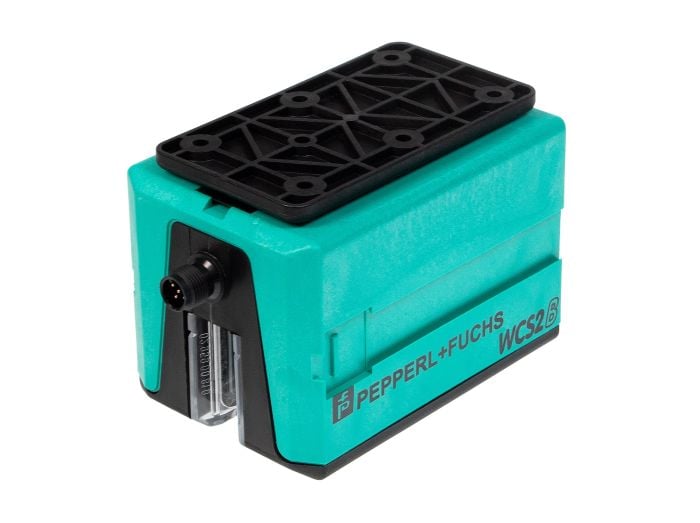

Pepperl+Fuchs WCS2B-LS221 Optical Read Head with RS-485 Interface
- Regular price
- $3,072.00
- Sale price
- $3,072.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WCS2B-LS221
Description
The Pepperl+Fuchs WCS2B-LS221 is a read head for the WCS positioning system, designed for non-contact absolute position measurement in industrial automation applications. It uses an RS-485 interface to transmit position data and supports passage speeds of up to 12.5 m/s, with automatic detection of dirt accumulation to help maintain reliable operation.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Control Components |
|
Part Number |
WCS2B-LS221 |
|
Subcategory |
Optical Positioning Sensors |
|
Product Type |
Read head |
|
Function |
Non-contact absolute position encoder |
|
Interface |
RS-485 |
|
Electrical Connection |
5-pin M12 connector |
|
Supply Voltage |
10–30 VDC |
|
Protection Rating |
IP54 |
|
Maximum Passage Speed |
12.5 m/s |
|
Dirt Detection |
Automatic detection of dirt accumulation |
|
Approvals |
CE |
|
Dimensions (H × W × D) |
128.3 × 75 × 86.4 mm |
|
Weight |
0.875 lb |
Information About WCS2B-LS221
The WCS2B-LS221 is an optical read head within the Pepperl+Fuchs WCS positioning system. It functions as an absolute position encoder, detecting position without physical contact with the code track. The RS-485 interface and 5-pin M12 connector support integration with compatible positioning controllers and automation equipment. Its IP54-rated housing and 10–30 VDC supply support use in industrial environments.
Key Features:
-
Absolute position measurement: Determines position within the WCS positioning system without incremental counting.
-
Non-contact sensing: Reads position information without mechanical contact, reducing wear.
-
RS-485 interface: Supports serial communication with compatible positioning system equipment.
-
Automatic dirt detection: Detects dirt accumulation to help identify conditions that may affect reading performance.
-
High passage speed: Supports passage speeds up to 12.5 m/s.
-
M12 connection: Uses a 5-pin M12 connector for electrical connection.
-
Industrial protection: IP54-rated housing provides protection against dust ingress and water splashes.
-
Wide supply range: Operates on a 10–30 VDC supply.
The WCS2B-LS221 delivers the reliability and precision required for non-contact absolute positioning in industrial conveying, storage, and material handling systems.
