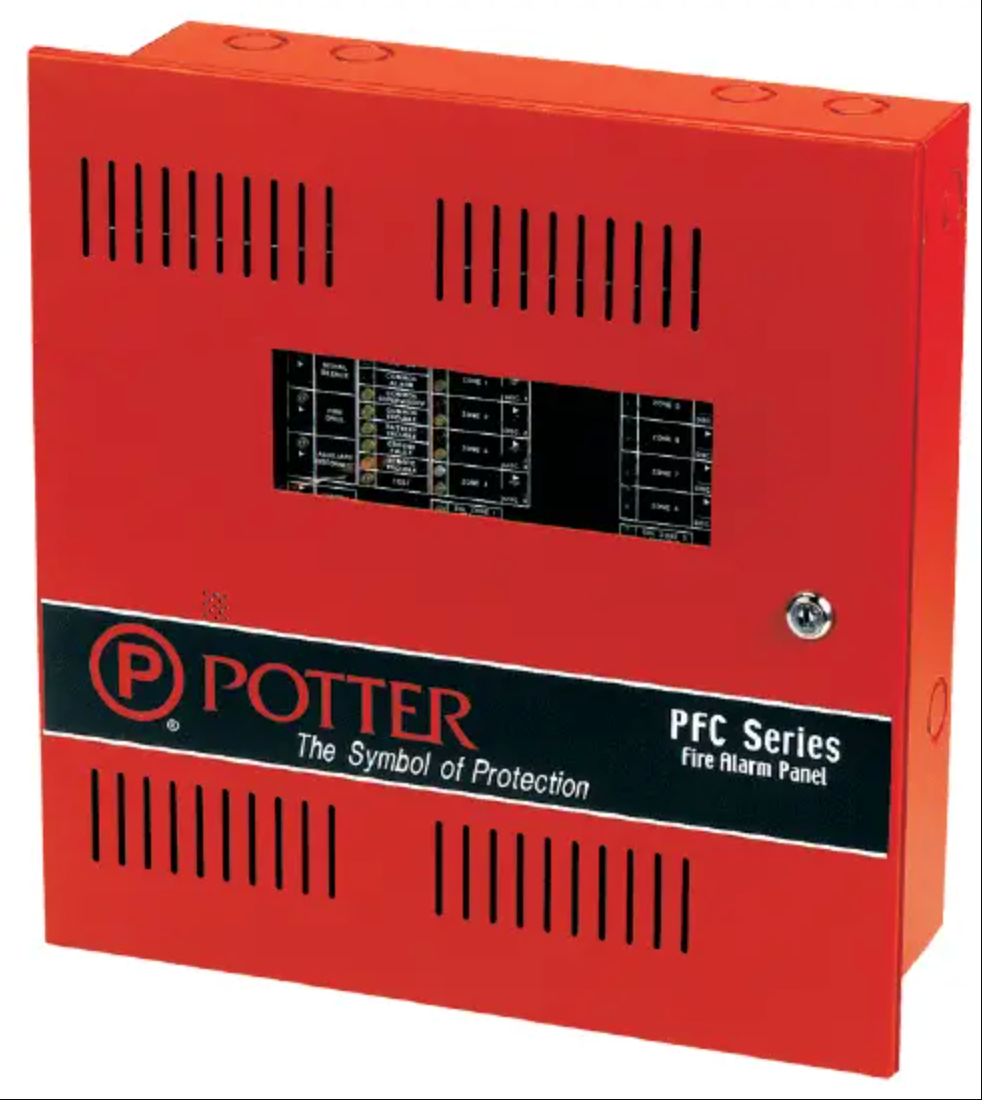

PFC-5004E | Potter 4-Zone Expandable Fire Alarm Control Panel with 5A Power Supply
- Regular price
- $691.00
- Sale price
- $691.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PFC-5004E
Description
The Potter PFC-5004E Fire Alarm Control Panel is a microprocessor-based, four-zone expandable fire detection and control unit designed for commercial, residential, and light industrial applications. The PFC-5004E provides reliable fire alarm system management with configurable Class A/B circuits, integrated power supply, and advanced control functions. Designed for ease of installation and flexibility, it supports multiple zone expansions and programmable operational modes to meet a wide range of system requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Alarm Systems |
| Part Number | PFC-5004E |
| Subcategory | Fire Alarm Control Panel |
| Series | PFC-5000 Series |
| Zones | 4 Class B (expandable to 8) or 2 Class A (expandable to 4) |
| Notification Circuits | 2 Class A/B (expandable to 4), 1.7A max per circuit |
| Power Supply | 5A @ 24 VDC regulated |
| Smoke Detector Power | 4-wire resettable, 24 VDC @ 100 mA |
| Configuration Method | DIP switch setup |
| Audible Patterns | Steady, March Time, Temporal Code, California Code |
| Relay Outputs | Common Alarm, Trouble, Supervisory |
| Communication Interface | RS-485 (supports up to 3 RA8F annunciators) |
| Alarm Verification | Selectable on initiating circuits |
| Cabinet Color | Red |
| Compliance | NFPA-13, NFPA-72, UL Listed |
| Operating Voltage | 120 VAC nominal |
| Mounting Type | Wall-mounted, surface enclosure |
| Country of Origin | United States |
| Weight | 16 lbs |
Information About PFC-5004E
The PFC-5004E is a member of Potter’s PFC-5000 Series fire alarm control panels, engineered for small to mid-sized facilities requiring dependable and configurable fire detection control. It includes 4 Class B (Style B) initiating circuits—expandable to 8 with the ZA-42 Adder Module—and 2 Class A/B (Style Z/Y) notification circuits expandable to 4. The system’s built-in 5-amp power supply provides both system and smoke detector power, ensuring stable operation even under demanding conditions. Configuration through DIP switches allows flexible setup of system features such as alarm verification, signal silence, waterflow monitoring, and supervisory functions without complex programming tools.
Key Features:
- Expandable Zone Capacity: Supports 4 Class B zones (expandable to 8) or 2 Class A circuits (expandable to 4) for system scalability.
- Integrated 5A Power Supply: Provides 24 VDC regulated output and resettable smoke detector power.
- Selectable Audible Patterns: Configurable for Steady, March Time, Temporal Code, or California Code alarm signaling.
- Flexible Configuration: DIP switch setup allows easy customization of alarm verification, zone types, and circuit silence features.
- Multiple Relay Outputs: Includes auxiliary relays for Common Alarm, Trouble, and Supervisory signals.
- Built-in RS-485 Interface: Supports up to three RA8F remote annunciators for enhanced monitoring.
- Automatic Signal Silence: Reduces manual reset needs and enhances operational safety.
- UL Listed and NFPA Compliant: Meets key fire protection standards for commercial and residential use.
The PFC-5004E delivers the reliability and precision required for modern fire alarm control in small to medium-sized building systems.
