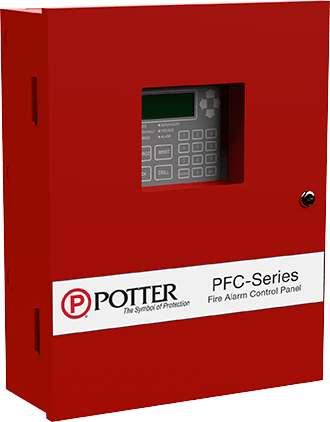

PFC-6006-R | Potter 6 Zone Conventional Fire Panel for Sprinkler Monitoring, Red
- Regular price
- $659.00
- Sale price
- $659.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PFC-6006-R
Description
The Potter PFC-6006-R is a 6-zone conventional fire alarm panel designed for small fire systems and sprinkler monitoring applications. It features a selectable Class A/B water flow input, two-wire smoke detector compatibility, and integrated dual-line DACT communication in a durable red enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Alarm Systems |
| Part Number | PFC-6006-R |
| Subcategory | Fire Alarm Control Panels |
| Type | Conventional fire alarm panel |
| Zones | 6 zones (1 Class A/B water flow input + 5 selectable detection zones) |
| Detector Support | Supports two-wire smoke detectors and conventional devices |
| Input Voltage | 12 VDC |
| Power Supply | 1.0 A total, 0.5 A NAC + 0.5 A auxiliary |
| Auxiliary Power | Programmable as constant or resettable |
| Display | 32-character LCD with system status LEDs |
| Event History | Built-in buffer for past events |
| Control Interface | Keypad for programming and system control |
| Communication | Built-in dual-line DACT for remote monitoring |
| Telephone Line | Line in/out for integration with site telephone systems |
| Remote Annunciators | Supports up to 4 RA-6075 annunciators via P-Link bus |
| Enclosure | Metal cabinet with key lock and lexan window |
| Battery Support | Up to two 12 VDC, 18 Ah batteries |
| Certifications | UL, ULC listed |
| Operating Modes | Class A or Class B wiring |
| Dimensions | 4 × 14 × 18 in (120.65 × 361.95 × 469.9 mm) |
| Weight | 20 lbs |
Information About PFC-6006-R
The PFC-6006-R is part of Potter’s PFC Series of conventional fire alarm panels, tailored for sprinkler monitoring and small building fire protection. With six configurable zones, including a dedicated Class A/B water flow input and support for two-wire smoke detectors, it provides flexible coverage options. The panel integrates a 1.0 amp power supply, dual-line DACT for off-site communication, and a 32-character LCD for clear status indication. Its event history buffer, annunciator expansion capability, and lockable red cabinet with viewing window make it a secure and versatile control solution.
Key Features:
- Six programmable zones: Includes one Class A/B water flow input and five selectable detection zones for versatile monitoring.
- Detector compatibility: Supports two-wire smoke detectors for simplified integration into sprinkler systems.
- Integrated 1.0 A power supply: Provides 0.5 A for NACs and 0.5 A auxiliary power, with programmable auxiliary output.
- Dual-line DACT: Built-in communicator allows reliable transmission of events to remote monitoring stations.
- LCD display with LEDs: Features a 32-character display with system status indicators for alarms, troubles, and supervisory conditions.
- Event history buffer: Stores past system events for quick diagnostics and system review.
- Keypad navigation: Enables system programming, limited configuration, and local control.
- Annunciator expansion: Supports up to four RA-6075 annunciators with full functionality via the P-Link bus.
- Secure enclosure: Red metal cabinet with key lock and lexan window ensures durability and system protection.
- Battery backup support: Houses two 12V, 18 Ah batteries for reliable standby operation.
The PFC-6006-R delivers the reliability and precision required for sprinkler monitoring and small building fire protection systems.
