PFXGP4311HTAD | Pro-face | Display units & HMIs
- Regular price
- $2,054.00
- Sale price
- $2,054.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PFXGP4311HTAD
Description

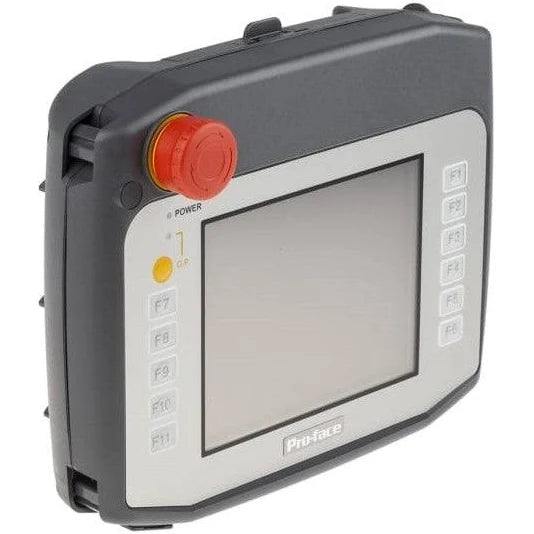

The PFXGP4311HTAD is a display unit and HMI (Human Machine Interface) manufactured by Pro-Face, featuring a 5.7-inch TFT color LCD display with a resolution of 640 x 480 pixels (VGA). The display offers a dot pitch of W0.18 x H0.18mm and an effective display area of 115.2 x 86.4mm (4.54 x 3.4 inches). With support for 65,536 colors (No blink) or 16,384 colors (Blink), the display provides clear and bright visuals.
It incorporates a white LED backlight, which is not user replaceable, and brightness control with 16 adjustable levels via the touch panel interface. The display supports multiple language fonts, including Japanese (6,962 characters), ANK (158 characters), and downloadable fonts for Korean, Simplified Chinese, and Traditional Chinese.
Technical Specifications
|
Display Type |
TFT Color LCD |
|
Display Size |
5.7" |
|
Resolution |
640 x 480 Pixels (VGA) |
|
Dot Pitch |
W0.18 x H0.18mm [W0.01 X H0] |
|
Effective Display Area |
115.2 x 86.4mm (4.54 x 3.4in) |
|
Display Colors |
65,536 Colors (No blink) / 16,384 Colors (Blink) |
|
Backlight |
White LED (Not user replaceable. When replacement is required, contact your local distributor.) |
|
Brightness Control |
16 Levels (Adjusted with touch panel) |
|
Contrast Control |
Not Applicable |
|
Language Fonts |
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable. |
|
Character Sizes |
Standard Font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 Pixel Fonts, Stroke Font: 6 to 127 Pixel Fonts |
|
Font Sizes |
Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times. |
|
Application Memory |
Flash EPROM 32MB |
|
Data Backup |
SRAM 320KB |
|
Clock Accuracy |
±65 sec./month (deviation at room temperature and power is OFF) |
|
Touch Panel Type |
Resistive Film (Analog) |
|
Touch Panel Resolution |
1,024 x 1,024 |
|
Touch Panel Service Life |
1 million times or more |
|
SD Card |
SD Card Slot x 1 |
|
Function Switch |
12 Switches (Right: 6 Switches, Left: 6 Switches) |
|
Emergency Switch Output |
Push-lock Switch, 3 Contacts (A-contact: 1 Contact, B-contact: 2 Contacts) |
|
3-Position Enable Switch Output |
GP Rear Panel Switch, 2 Contacts (A-contact) |
|
Key Switch Output |
1c-Contact, Rated Voltage: DC 24V, Maximum Rated Current: 300mA |
|
Operation Output |
Open Collector Output: 1 Point, Rated Voltage: DC 24V, Maximum Rated Current: 300mA |
|
External Buzzer Output |
Open Collector Output 1 Point, Rated Voltage: DC 24V, Maximum Rated Current: 300mA |
|
DOUT Output |
Open Collector Output: 2 Points [F1, F2], Rated Voltage: DC 24V, Maximum Rated Current: 300mA/point |
Information About PFXGP4311HTAD
The PFXGP4311HTAD is a display unit and Human-Machine Interface (HMI) manufactured by Pro-Face, featuring a TFT Color LCD display type with a size of 5.7 inches. It offers a resolution of 640 x 480 pixels (VGA) and a dot pitch of W0.18 x H0.18mm.
The effective display area of the PFXGP4311HTAD is 115.2 x 86.4mm (4.54 x 3.4 inches), providing ample space for displaying information and graphics. It supports 65,536 colors (No blink) or 16,384 colors (Blink), ensuring clarity and vibrancy in visual representation.
Equipped with a white LED backlight, the display unit provides consistent and uniform illumination for optimal visibility. The backlight is not user-replaceable, and in case of replacement needs, users are advised to contact their local distributor for assistance.
Brightness control is available with 16 levels, allowing users to adjust the brightness settings according to their preferences using the touch panel interface. This feature ensures adaptability to various lighting conditions and environments, enhancing user experience and readability.
The PFXGP4311HTAD is designed to meet the demanding requirements of industrial applications, offering reliable performance and durability in harsh environments. Its high-resolution TFT display delivers clear and sharp images, making it suitable for visualization and control tasks in automation systems.
With its compact size and versatile features, the PFXGP4311HTAD is well-suited for a wide range of industrial applications, including manufacturing, process control, and machine monitoring. Its user-friendly interface and intuitive controls make it easy to operate and integrate into existing systems.
Manufacturer information
Pro-face is a leading global supplier of a broad range of industrial automation hardware and software solutions. Our principal products include the Pro-face brand operator interfaces, HMI software, and industrial computers.
