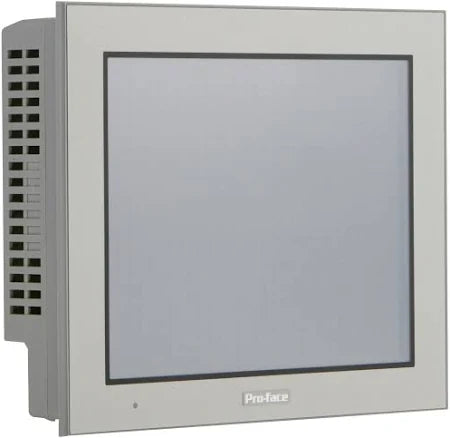

PFXGP4501TAA | Schneider Electric Pro-face Touch Screen Operator Interface
- Regular price
- $1,749.00
- Sale price
- $1,749.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PFXGP4501TAA
Description
The Pro-face PFXGP4501TAA is a Touch Screen Operator Interface Panel designed for industrial applications. It operates within an input voltage range of 100-240 VAC. The panel is suitable for environments free of corrosive gases with pollution levels not exceeding Degree 2 and dust concentration below 0.1 mg/m³. It complies with IEC/EN61131-2 standards for concussion and vibration resistance.
Technical Specifications
|
Part # |
PFXGP4501TAA |
|
Category |
HMI / MMI / OIT |
|
Subcategory |
Operator Interface |
|
Rated Input Voltage |
AC 100 to 240V |
|
Input Voltage Limits |
AC 85 to 264V |
|
Rated Frequency |
50/60 Hz |
|
Rated Frequency Range |
47 to 63 Hz |
|
Allowable Voltage Drop |
1 cycle or less (Voltage drop interval must be 1 second or more) |
|
Power Consumption |
100 Vac: 44 VA or less, 240 Vac: 58 VA or less |
|
In-Rush Current |
30 A or less |
|
Voltage Endurance |
AC 1,500 V, 20 mA for 1 min (between charging and FG terminals) |
|
Insulation Resistance |
DC 500 V, 10 MΩ or more (between charging and FG terminals) |
|
Surrounding Air Temperature |
0 to 55 °C (32 to 131 °F) |
|
Storage Temperature |
-20 to 60 °C (-4 to 140 °F) |
|
Ambient Humidity |
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation) |
|
Storage Humidity |
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation) |
|
Dust |
0.1 mg/m³ (10^-7 oz/ft³) or less (non-conductive levels) |
|
Pollution Degree |
For use in Pollution Degree 2 environment |
|
Atmosphere |
Free of corrosive gases |
|
Air Pressure (altitude range) |
800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less) |
Information About PFXGP4501TAA
The Pro-face PFXGP4501TAA Touch Screen Operator Interface is designed as a robust and versatile display panel suitable for industrial applications. Operating with a rated input voltage of 100-240 VAC, this interface panel requires an environment free of corrosive gases and limits pollution to Degree 2 standards. Dust levels must not exceed 0.1 mg/m³ to ensure non-conductive conditions.
Compliant with IEC/EN61131-2 standards, the PFXGP4501TAA offers reliable concussion and vibration resistance, crucial for stable operation in challenging industrial environments. It can withstand air pressures ranging from 800 to 1,114 hPA, equivalent to altitudes of up to 2000 m above sea level.
Ambient humidity must be maintained below 90% to ensure optimal performance, with operating temperatures limited to a maximum of 55°C and storage temperatures capped at 60°C. Natural air circulation serves as the cooling method for this panel, ensuring efficient heat dissipation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
