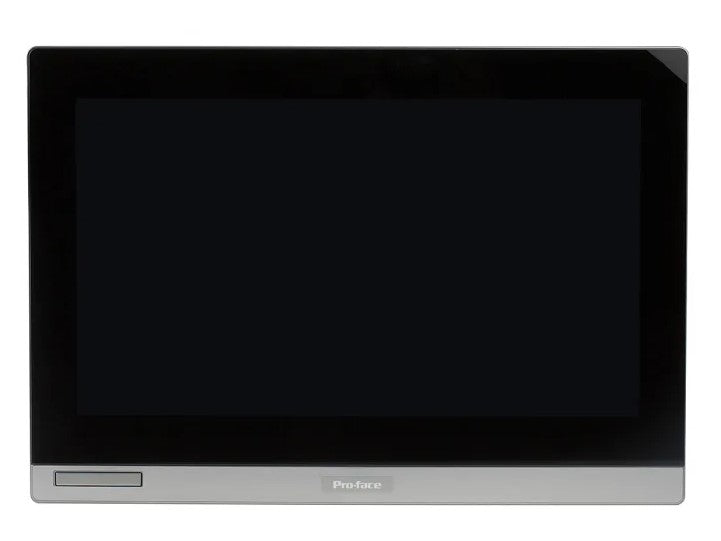

PFXSP5660TPD | Pro-face 12 inch HMI Touchscreen

Description

The Pro-face PFXSP5660TPD is a 12-inch HMI touchscreen designed for industrial control applications. It provides a user interface for monitoring and controlling processes. The unit is equipped with a resistive touchscreen and is suitable for use in environments requiring reliable human-machine interaction. It is designed for integration into automation systems.

Technical Specifications

Information About PFXSP5660TPD

The Pro-face PFXSP5660TPD is a 12.1-inch HMI (Human-Machine Interface) touchscreen designed for industrial and automation environments, providing a reliable and efficient interface for process monitoring and control. Categorized under HMI/MMI/OIT (Operator Interface Terminal), this device is essential for operators who need to interact with industrial control systems through an intuitive and high-performance display. It is designed to integrate seamlessly into various automation systems, enhancing operational efficiency and providing clear visual feedback for process monitoring and system control.

The PFXSP5660TPD features a 12.1-inch TFT (Thin-Film Transistor) display, which offers superior image quality with enhanced color and contrast. The TFT technology ensures crisp visuals and fast response times, making it ideal for real-time monitoring and control in industrial environments. The display supports 16 million colors, which provides a rich and detailed visual experience, allowing operators to easily differentiate between various data points, alarms, and system statuses. This high level of color support is particularly useful in complex systems where different elements need to be color-coded for clarity and quick identification.

The screen resolution of the PFXSP5660TPD is XGA 1024 x 768 pixels, which delivers sharp and clear visuals. This resolution is well-suited for industrial applications that require detailed graphical representations of processes and systems. The combination of high resolution and color depth ensures that operators can easily monitor even the most complex systems with clarity and precision. This is especially important in industries such as manufacturing, processing, and energy, where visual accuracy is critical for maintaining system performance and detecting potential issues.

One of the key features of the PFXSP5660TPD is its analog multi-touch panel. The multi-touch functionality allows for more interactive and flexible control, enabling operators to perform multiple actions simultaneously, such as zooming in and out of screens or navigating through different menus. The analog touch panel is highly responsive, ensuring accurate input even in industrial settings where operators may be wearing gloves or dealing with less-than-ideal environmental conditions. This feature enhances the overall usability of the HMI, making it a versatile tool for various industrial applications.

In addition to its advanced display and touch capabilities, the PFXSP5660TPD comes equipped with a front USB port, allowing easy access for external device connections. This feature is particularly useful for system updates, data logging, or connecting peripherals such as keyboards or external storage devices. The USB port enhances the flexibility of the HMI by providing a convenient way to interface with other tools and devices without disrupting the operation of the system.

The PFXSP5660TPD operates on a 24 VDC power supply, which is a standard requirement for industrial automation systems. The 24 VDC power input ensures that the device can be easily integrated into existing control panels and power systems without the need for additional power converters or modifications. This compatibility simplifies installation and reduces downtime during system integration, making it an efficient solution for both new installations and retrofitting existing systems.

Another standout feature of the PFXSP5660TPD is its built-in WiFi capability. The inclusion of WiFi allows the HMI to communicate wirelessly with other devices and systems, providing greater flexibility in terms of installation location and reducing the need for extensive wiring. This wireless connectivity is particularly valuable in environments where wired connections are impractical or where mobile control stations are required. The built-in WiFi capability also facilitates remote monitoring and control, enabling operators to access system data from different locations within the facility or even remotely.

The combination of a high-quality TFT display, multi-touch functionality, front USB access, and built-in WiFi makes the PFXSP5660TPD a highly versatile and powerful HMI solution for industrial automation. Its ability to provide real-time monitoring and control, coupled with flexible connectivity options, ensures that operators can efficiently manage complex systems with ease and precision. The PFXSP5660TPD is designed for use in a wide range of industrial applications, including manufacturing, processing, and energy production, where reliable and accurate control is essential for maintaining system performance and safety.

In summary, the Pro-face PFXSP5660TPD is a feature-rich 12.1-inch HMI touchscreen designed to meet the demands of modern industrial environments. Its TFT display with 16M colors and XGA resolution delivers crisp, clear visuals, while the analog multi-touch panel ensures precise and responsive control. The front USB port and built-in WiFi offer enhanced connectivity and flexibility, allowing for seamless integration into various automation systems. Powered by 24 VDC, this HMI is a robust and reliable solution for real-time control and monitoring in a wide range of industrial applications.

Manufacturer information

Pro-face is a leading manufacturer of human-machine interface (HMI) solutions. They specialize in touchscreens, industrial PCs, and software designed for factory automation. Known for their durability and user-friendly interfaces, Pro-face products enhance operational efficiency in a wide range of industrial environments.
