PGA36100 | Schneider Electric Circuit Breaker
- Regular price
- $5,207.00
- Sale price
- $5,207.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: PGA36100
Description

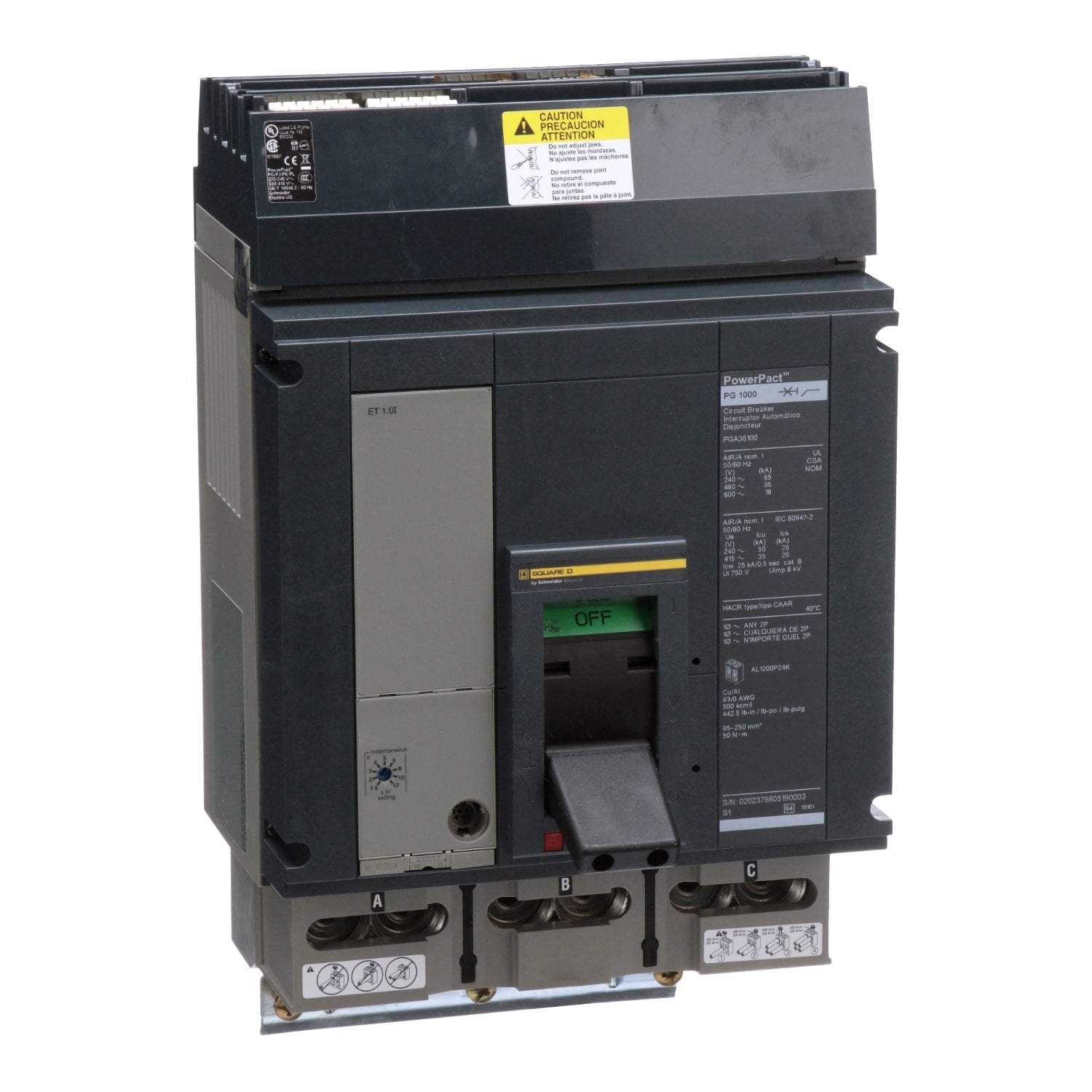

The PGA36100 is a PowerPacT P-Frame circuit breaker designed for robust protection against overloads and short circuits in electrical systems. Equipped with a fixed long time electronic trip unit, ET 1.0I, it ensures efficient operation under varying load conditions. This circuit breaker features an integral push-to-trip button in the cover for manual tripping when necessary.
Available in 2, 3, and 4-pole configurations, the PowerPacT P circuit breaker offers versatility in mounting options, including unit mount, I-Line, or drawout construction. The PGA36100 specifically features I-Line terminations on the line side and mechanical lugs on the load side, enhancing ease of installation and connectivity.
Technical Specifications
|
Part # |
PGA36100 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Range |
|
Product name |
PowerPact P |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
1000 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
G |
|
Rated Operational Voltage |
600 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
Rated Service Breaking Capacity |
25 kA 240 V AC 50/60 Hz IEC 60947-2 |
|
|
20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
|
Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Electronic, basic, ET 1.0I, I |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Trip Unit Name |
ET 1.0I |
|
AWG Gauge |
4 x AWG 3/0...500 kcmil aluminium/copper |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line |
|
Terminal Identifier |
AL1200P25K |
|
Long Time Pick-Up Adjustment Range |
1 In |
|
Mounting Height |
9 in (228.60 mm) |
|
IP Degree of Protection |
Front cover IP40 |
|
Pollution Degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
Information About PGA36100
The PGA36100 is a circuit breaker belonging to the PowerPacT P series, designed to safeguard electrical systems from overload and short circuit damage. These P-Frame circuit breakers are equipped with either a fixed long-time electronic trip unit, designated as ET 1.0I, or Micrologic trip units, offering interchangeability in the field for enhanced flexibility; however, the basic electronic trip unit lacks this feature.
Featuring an electronic trip unit ET 1.0I, the PGA36100 includes an integral push-to-trip button in its cover, facilitating manual tripping when necessary. Available in various configurations, including 2, 3, and 4-pole unit mount, I-Line, or drawout construction, these circuit breakers cater to diverse installation needs. The PGA36100 is specifically configured with I-Line terminations on the line side and mechanical lugs on the load side.
With a rating of 1000A and 3 poles, this PGA36100 circuit breaker boasts an interrupting rating of 18kA at 600VAC, ensuring robust protection against electrical faults. Additionally, it offers a continuous current rating of 80% with an ABC phase connection.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
