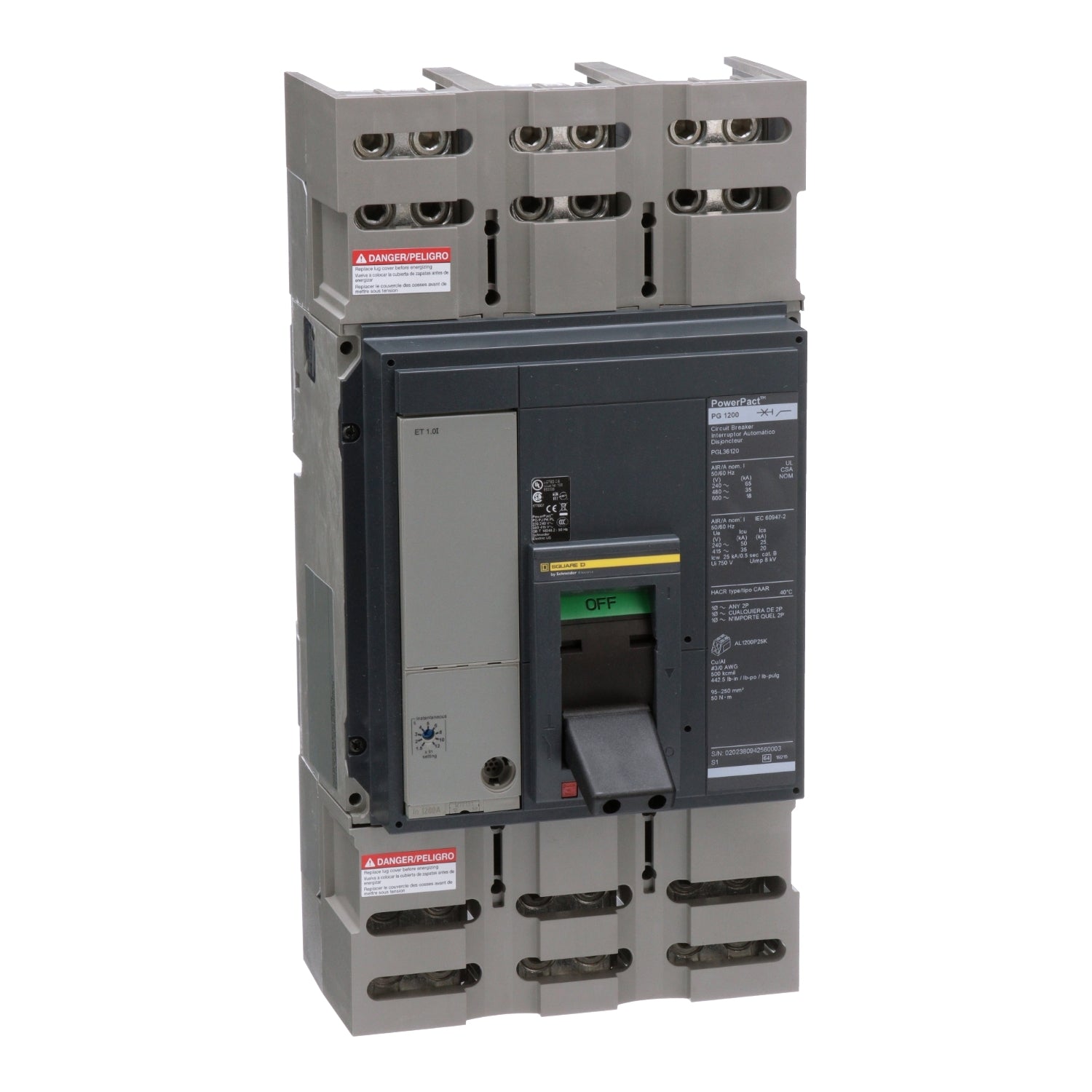

PGL36120 | Schneider Electric PowerPact 3-Pole 1200A Solid State Molded Case Circuit Breaker Feed-Thru
- Regular price
- $10,389.00
- Sale price
- $10,389.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PGL36120
Description
The Schneider Electric PGL36120 is a three-pole molded case circuit breaker designed for high-capacity protection of three-phase electrical distribution systems. It is rated for 1200 amps at 600 volts and uses solid-state electronic protection with long-time and instantaneous trip functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | PGL36120 |
| Subcategory | Molded Case Circuit Breaker |
| Family | PowerPact |
| Type | PGL |
| Frame Type | P Frame |
| Rated Voltage | 600 VAC |
| Rated Current | 1200 A |
| Interrupt Rating | 35 kA at 480 V |
| Protection Type | Solid State Electronic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Trip Unit | ET 1.0I (Non-Interchangeable) |
| Number of Poles | 3 |
| Phase | Three-phase |
| Connection Type | Feed-Thru |
| Terminal Configuration | Line and Load Side Lug Terminals |
| Standards Compliance | UL Listed |
Information About PGL36120
The PGL36120 is part of the Schneider Electric PowerPact PGL series, engineered for high-current feeder and main protection in industrial and commercial power systems. It features a heavy-duty molded case construction with a P-frame design that supports mechanical strength and long-term reliability. The solid-state ET 1.0I trip unit provides fixed electronic sensing for consistent long-time overload and instantaneous fault response. This circuit breaker is commonly installed in switchboards and distribution equipment where feed-thru wiring and high current capacity are required.
Key Features
- Three-pole, three-phase breaker design: Provides full isolation and coordinated protection across all phases in large power distribution systems.
- 1200 amp continuous current rating: Supports high-capacity feeder and main circuit applications in industrial environments.
- Solid-state electronic protection: Delivers accurate and repeatable trip performance without reliance on thermal elements.
- Long-time and instantaneous trip functions: Protects against sustained overloads and high-level short-circuit faults.
- ET 1.0I non-interchangeable trip unit: Maintains fixed protection characteristics to support predictable system coordination.
- Standard interrupting capacity: Rated at 35 kA at 480 V for reliable fault interruption in typical industrial systems.
- Feed-thru connection configuration: Enables efficient conductor routing through the breaker for streamlined panel layouts.
- Line and load side lug terminals: Allow secure and direct termination of conductors for simplified field installation.
The PGL36120 delivers the reliability and precision required for protecting high-capacity three-phase electrical distribution systems in demanding industrial and commercial power applications.
