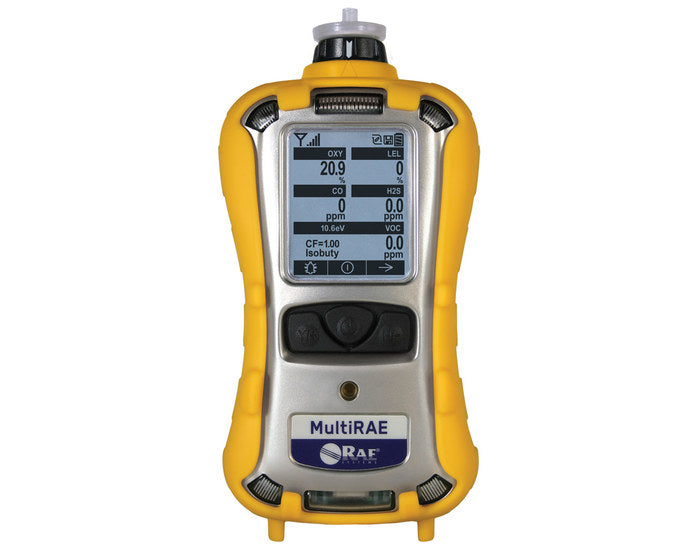

PGM-6228 | Honeywell Rae Systems MultiRAE Pro Multi-Gas Monitor
- Regular price
- $4,999.00
- Sale price
- $4,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PGM-6228
Description
The MultiRAE PGM-6228 is a highly versatile and advanced portable multi-gas detector designed for use in demanding environments. It supports up to six sensors simultaneously and enables field-configurable detection for a wide range of toxic and combustible gases, volatile organic compounds (VOCs), and oxygen levels. Its robust construction and intelligent alarm system make it ideal for industrial safety, HazMat response, and confined space entry operations.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Gas Detection
|
| Part Number | PGM-6228 |
| Subcategory | Multi-Gas Detectors |
| Dimensions | 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm) |
| Detector Type | Pumped |
| Sensor Support | Up to 6 simultaneously; 25 interchangeable sensor options |
| Included Sensors | PID (10.6 eV), LEL, H₂S, CO, O₂ |
| Display | Graphical LCD, auto-flip, 128 × 160 resolution |
| Datalogging | 6 months for 5 sensors (1-min interval); configurable intervals |
| Battery Options | Rechargeable Li-ion, Extended Li-ion, Alkaline adapter (4 × AA) |
| Runtime | Up to 18 hours (extended battery); 6–12 hours standard |
| Wireless | Optional (ProRAE Guardian, EchoView Host) |
| Alarms | Audible (95 dB), vibration, visual LEDs, on-screen, Man Down alarm |
| IP Rating | IP65 (dust-tight, water jet-resistant) |
| Calibration | AutoRAE 2 system or manual |
| Pump Flow Rate | Approx. 250 cc/min |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Humidity Range | 0% to 95% RH, non-condensing |
| Languages Supported | 18+ including English, French, German, Spanish, Chinese |
| Standards and Certifications |
CSA, MIL-STD-810G, EMC 2004/108/EC, LEL CSA C22.2 No.152 |
| Weight | 31 oz (880 g) |
Information About PGM-6228
The PGM-6228 is a multi-gas detector from the MultiRAE series by RAE Systems, offering exceptional flexibility and sensor interchangeability. With support for up to 25 intelligent sensors including PID, NDIR, and a wide array of toxic gas options like H₂S, CO, NH₃, and formaldehyde, this device adapts easily to dynamic monitoring requirements. It includes a built-in pump, an IP65-rated rugged housing, and multiple battery options to maximize operational uptime in the field. The device is compatible with the Honeywell Sotera™ Express platform and AutoRAE 2 calibration systems, ensuring seamless device management and testing.
Key Features:
- Multi-Sensor Configuration: Supports up to six field-replaceable intelligent sensors for customizable gas detection.
- PID Detection: Equipped with a 10.6 eV lamp for detecting up to 5,000 ppm VOCs with high sensitivity.
- Built-in Sampling Pump: Ensures continuous sampling with auto-shutdown on low flow.
- Data Logging: Continuous 24/7 datalogging for up to six months across five sensors.
- Multiple Alarm Modes: Includes audible, visual, vibration, and wireless notifications, with a Man Down alarm.
- Flippable Graphical Display: Large monochrome LCD with automatic flip function and glove-friendly interface.
- Wireless Integration (Optional): Enables real-time monitoring via ProRAE Guardian or EchoView systems.
- Rugged Design: IP65-rated housing protects against dust and water jets; suitable for harsh environments.
- Flexible Power Options: Operates on rechargeable Li-ion, extended Li-ion, or alkaline AA batteries.
- Extensive Gas Libraries: Preloaded with 190 VOCs and 55 flammable gas calibration factors.
- Device Management: Compatible with Honeywell’s Sotera™ Express and AutoRAE 2 for automated bump testing.
The PGM-6228 delivers the reliability and precision required for high-stakes environmental monitoring and incident response.
