Product Description P/N: PGM-7600
Description

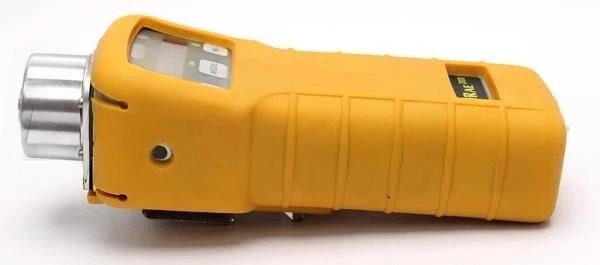

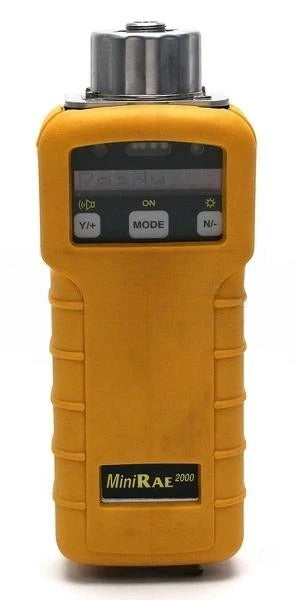

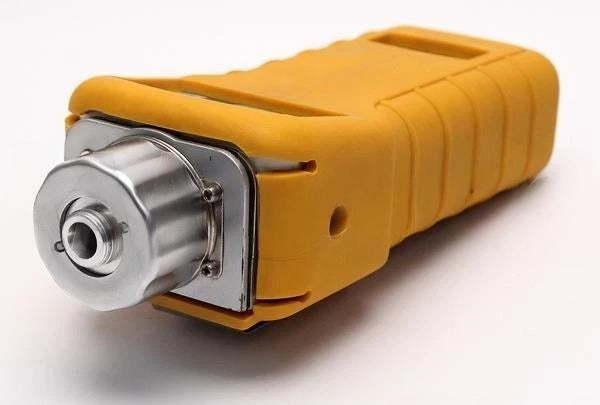

The MiniRAE 2000 PGM-7600 is a handheld, photoionization-based VOC monitor designed for rapid detection of volatile organic compounds in industrial, environmental, and hazmat scenarios. It offers a wide detection range from 0 to 10,000 ppm and integrates a high-sensitivity PID sensor for precise gas analysis in real time.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Safety Systems
|
| Part Number | PGM-7600 |
| Subcategory | Gas Monitoring System |
| Detection Range | 0–10,000 ppm VOCs |
| Detector Type | Photoionization Detector (PID) |
| UV Lamp Options | 9.8 eV, 10.6 eV, or 11.7 eV (field-replaceable) |
| Resolution | 0.1 ppm (0–99 ppm), 1.0 ppm (100–10,000 ppm) |
| Accuracy | ±2 ppm or ±10% (0–2000 ppm), ±20% (>2000 ppm) |
| Response Time (T90) | 2 seconds |
| Data Storage | 15,000 points with timestamps and site/user ID |
| Display | 1x8 dot-matrix LCD with LED backlight (0.4" character height) |
| Battery Type | 4.8V / 1250 mAh NiMH Rechargeable (field replaceable) |
| Battery Life | Up to 10 hours continuous use |
| Charging Time | 10 hours via built-in charger |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Humidity Range | 0–95% RH non-condensing |
| Sampling Pump | Integrated; flow rate 450–550 cc/min |
| Alarm Settings | 90 dB buzzer, flashing LEDs, sensor failure alert |
| Alarm Types | Low, High, STEL, TWA, latching or auto-reset |
| Intrinsic Safety Certifications | UL & cUL Class I, Div 1, Groups A-D; EEx ia IIC T4 (Europe) |
| External Alarm Options | Optional plug-in pen-size remote/vibration alarm |
| Interface | RS-232 port (PC configuration and data export) |
| Enclosure | ABS + PC, rubber boot, drop-tested to 1 meter |
| Dimensions (L x W x H) | 8.2" x 3.0" x 2.0" (20.8 x 7.6 x 5.1 cm) |
| Weight | 19.5 oz (approx. 1.22 lbs / 0.55 kg) with battery |
Information About PGM-7600
The PGM-7600, also known as the MiniRAE 2000, is a rugged portable VOC monitor from RAE Systems equipped with a photoionization detector (PID) and interchangeable UV lamps (9.8, 10.6, or 11.7 eV). It supports a full-featured interface with instantaneous, STEL, and TWA readouts and stores up to 15,000 data points with time-stamped records. Certified for use in hazardous environments (Class I, Division 1), it includes wireless communication capabilities and RS-232 interface for configuration and data export. Designed for field use, it has an integrated pump, real-time clock, and built-in correction factors for 102 gases, making it ideal for environmental survey and industrial hygiene applications.
Key Features:
- Wide VOC Detection Range: Measures VOCs from 0 to 10,000 ppm with multiple resolution modes.
- Interchangeable UV Lamps: Supports 9.8, 10.6, or 11.7 eV lamps for various compound sensitivities.
- Data Logging: Stores up to 15,000 records with timestamps and user/site identification.
- Wireless Enabled: Certified wireless communication for remote access and monitoring.
- Fast Response Time: Measures Isobutylene with 2-second T90 response across all detection ranges.
- Flexible Alarms: Customizable limits for Low, High, STEL, and TWA alarms with 90 dB buzzer and LED alerts.
- Built-In Pump: Internal sampling pump operates at 450–550 cc/min flow rate.
- Intrinsically Safe: UL/cUL certified for Class I, Div 1, Groups A-D hazardous locations.
- Software & PC Integration: Includes ProRAE Suite, supports configuration/download via RS-232.
- Field-Ready Design: ABS + PC splash/dust-proof housing withstands 1-meter drop with rubber boot.
The PGM-7600 MiniRAE 2000 delivers real-time VOC detection with robust logging, wireless connectivity, and proven performance for industrial and emergency environments.
