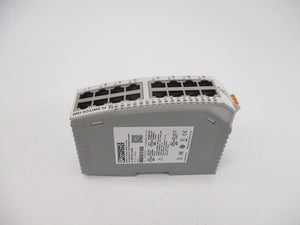

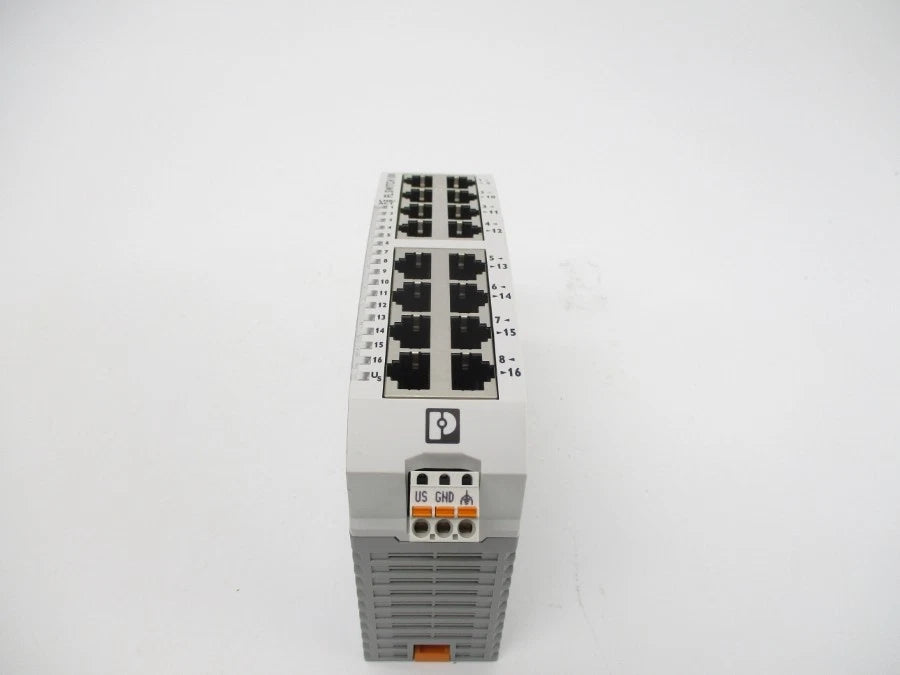

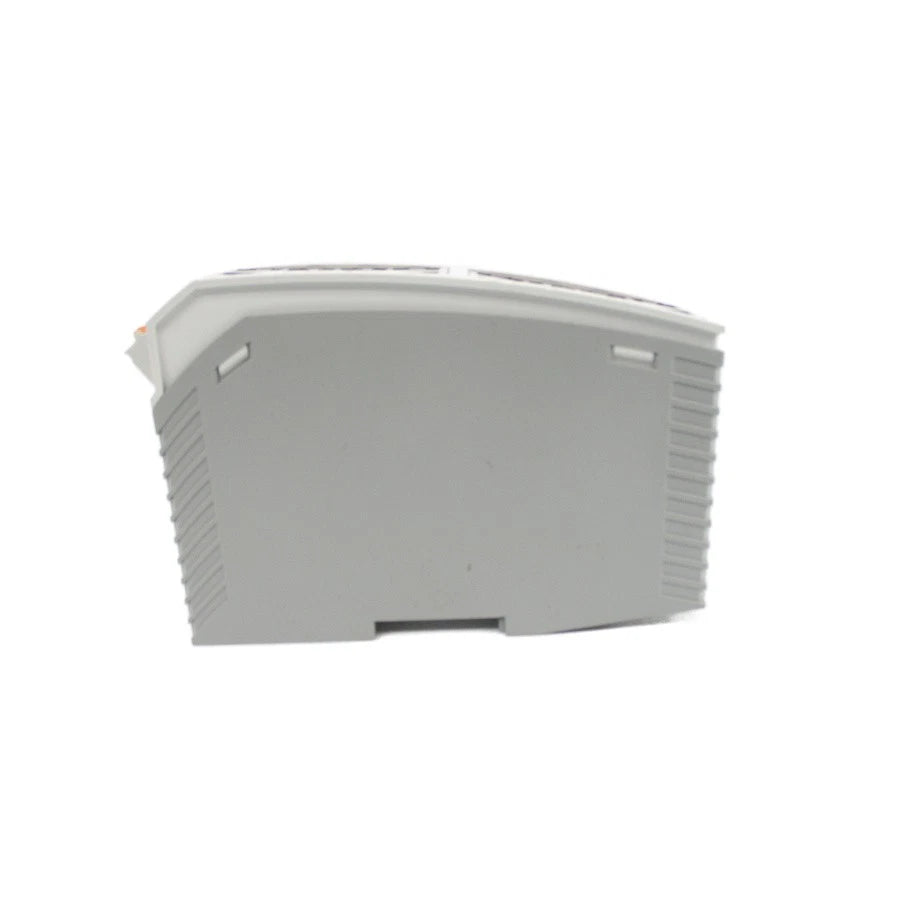

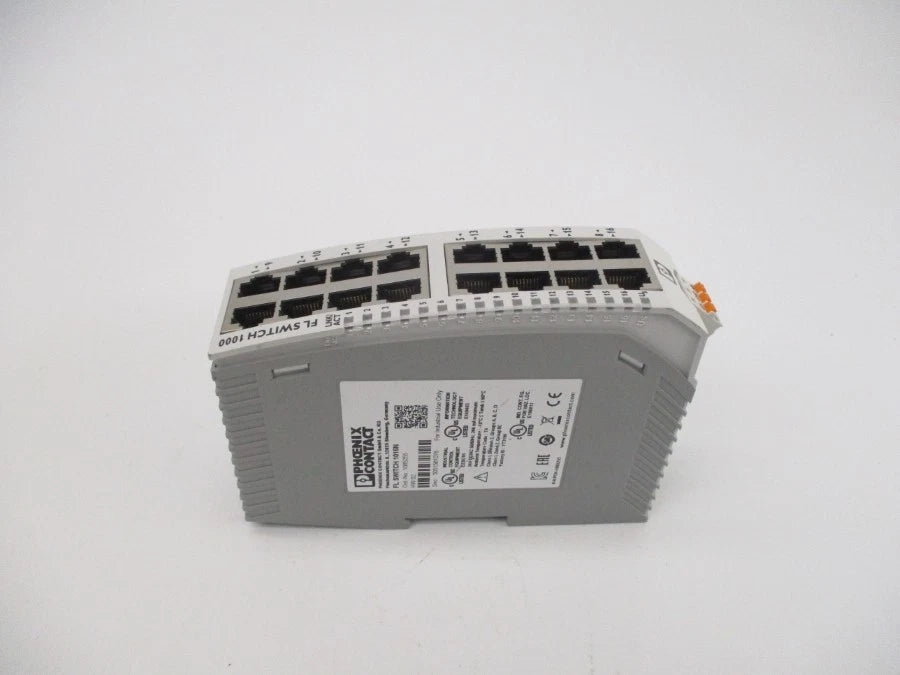

Phoenix Contact 1085255 FL SWITCH 1016N 16-Port 10/100 Mbps Unmanaged Industrial Ethernet Switch
- Regular price
- $265.00
- Sale price
- $265.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1085255
Description
The Phoenix Contact 1085255 is an FL SWITCH 1016N unmanaged industrial Ethernet switch with sixteen RJ45 ports supporting 10/100 Mbps communication. It connects automation devices without software configuration and automatically detects link speed and cable crossover requirements. Integrated traffic prioritization supports communication between controllers, HMIs, and other Ethernet devices in industrial networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Phoenix Contact |
| Category | Industrial Networking |
| Part Number | 1085255 |
| Subcategory | Unmanaged Ethernet Switches |
| Model / Series | FL SWITCH 1016N / FL SWITCH 1000 Series |
| Ethernet Ports | 16 × RJ45 |
| Transmission Speed | 10/100 Mbps per port |
| Switching Functions | Unmanaged; store-and-forward; autonegotiation; autocrossing |
| MAC Address Table | 8K entries |
| Traffic Prioritization | IEEE 802.1p Quality of Service |
| Automation Features | PROFINET Conformance Class A; PROFINET PTCP filter |
| Energy Efficiency | IEEE 802.3az Energy-Efficient Ethernet |
| Maximum Segment Length | Approximately 328 ft over twisted-pair copper |
| Supply Voltage | Nominal 24 VDC or 24 VAC, 50/60 Hz; operating ranges: 9–32 VDC / 18–30 VAC |
| Current Consumption | Typical: 68 mA at 24 VDC; maximum: 266 mA at 9 VDC |
| Mounting / Power Connection | DIN rail; removable COMBICON connector with push-in spring terminals |
| Housing / Protection | Fiber-reinforced polycarbonate; IP30 |
| Dimensions / Operating Conditions | 1.57 × 5.53 × 3.64 inches W × H × D; 14–140°F; 5–95% RH, non-condensing |
| Weight | Approximately 0.59 lb |
Information About 1085255
The 1085255 is part of Phoenix Contact’s FL SWITCH 1000 Series of plug-and-play industrial network switches. Its narrow, fiber-reinforced polycarbonate housing mounts on a DIN rail for installation inside control cabinets. Store-and-forward switching, an 8K MAC address table, and Quality of Service prioritization manage traffic between connected devices. PROFINET Conformance Class A support and a PTCP filter provide features tailored to industrial automation communication.
Key Features:
- Sixteen Ethernet Ports: Provides sixteen RJ45 connections for industrial network devices.
- Fast Ethernet Communication: Supports automatic selection of 10 or 100 Mbps on every port.
- Unmanaged Operation: Requires no software configuration for basic network connectivity.
- Automatic Crossover Detection: Adjusts port connections automatically to simplify Ethernet cabling.
- Traffic Prioritization: Uses IEEE 802.1p Quality of Service to prioritize appropriate network messages.
- PROFINET Support: Provides Conformance Class A functionality and a PROFINET PTCP filter.
- Store-and-Forward Switching: Receives and checks Ethernet frames before forwarding them.
- Energy-Efficient Ethernet: Supports IEEE 802.3az functionality for reduced energy consumption.
- Local Diagnostics: Includes supply, link, and activity LEDs for checking operating status.
- Flexible Power Input: Accepts 9–32 VDC or 18–30 VAC supplies.
- Compact Cabinet Installation: Uses a 40 mm-wide housing with DIN-rail mounting.
- Copper Cable Reach: Supports Ethernet segments up to approximately 328 ft.
The 1085255 delivers the reliability and precision required for Ethernet traffic distribution and device connectivity in industrial automation systems.
