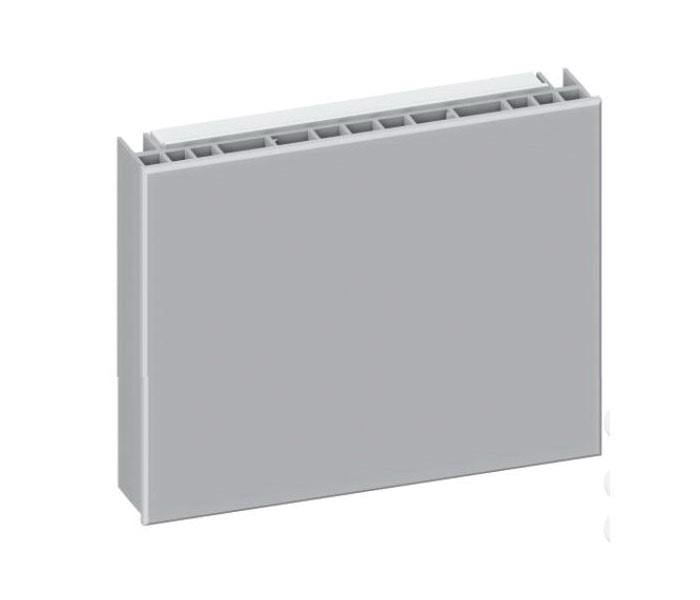

PHPM-PA-120-WH | Lutron Phase Adaptive Power Module 120V 16A Lighting Control
- Regular price
- $442.00
- Sale price
- $442.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PHPM-PA-120-WH
Description
The Lutron PHPM-PA-120-WH Phase Adaptive Power Module is a 120 V, 16 A lighting control interface designed to extend dimming capabilities for Lutron lighting control systems. It enables phase-adaptive dimming for a variety of load types, including incandescent, halogen, electronic low-voltage, magnetic low-voltage, and 3-wire fluorescent lighting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | PHPM-PA-120-WH |
| Subcategory | Power Modules |
| Series | PHPM Phase Adaptive |
| Type | Phase Adaptive Power Module |
| Voltage Rating | 120 VAC |
| Amperage Rating | 16 A |
| Load Types | Incandescent, Halogen, ELV, MLV, 3-wire fluorescent |
| Control Type | Phase adaptive dimming (forward/reverse phase) |
| Connection Type | 12 AWG wire leads |
| Mounting Type | Surface or remote mounting near control panels |
| Color/Finish | White |
| Dimensions | 5.1 in H × 6.3 in W × 1.2 in D |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Frequency | 50/60 Hz |
| Material | Plastic and metal housing |
| Enclosure Type | Indoor use |
| Control Interface | Compatible with Lutron dimmers and control processors |
| Certifications | UL Listed, FCC Compliant |
| Application | Dimming control for multi-load lighting systems |
| Weight | 1.6 lb (approx.) |
Information About PHPM-PA-120-WH
The PHPM-PA-120-WH is part of Lutron’s Phase Adaptive Power Module (PHPM) series, engineered to provide high-capacity dimming for systems that require remote or centralized power control. This unit automatically selects forward or reverse phase operation based on the connected load, ensuring optimal performance and compatibility. It supports up to 16 amps of lighting load and can be controlled via Lutron dimmers, keypads, or control processors. Housed in a compact white enclosure, it integrates easily into both commercial and residential lighting systems requiring precise dimming control.
Key Features:
- Phase-Adaptive Control: Automatically selects forward or reverse phase operation for optimal dimming performance.
- High Load Capacity: Supports up to 16 A at 120 VAC for larger lighting circuits.
- Multi-Load Compatibility: Works with incandescent, halogen, ELV, MLV, and 3-wire fluorescent loads.
- Seamless Integration: Interfaces with Lutron dimmers, keypads, and lighting control systems.
- Wired Connection: Uses 12 AWG wire connections for secure and reliable installation.
- Compact Enclosure: Slim housing designed for mounting near panels or electrical enclosures.
- Thermal Management: Designed for consistent operation under rated loads and ambient conditions.
- UL Certified: Meets UL and Lutron performance standards for lighting control modules.
The PHPM-PA-120-WH delivers the reliability and precision required for adaptive dimming and high-capacity lighting control applications.
