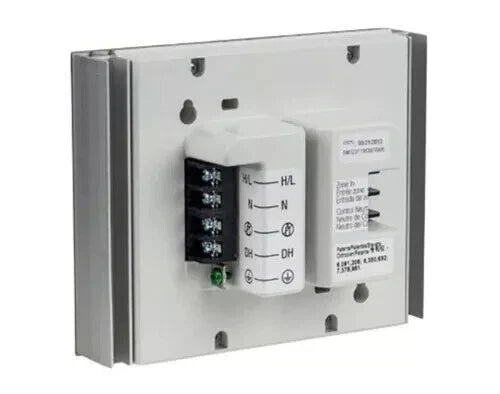

Product Description P/N: PHPM-PA-DV-WH
Description
The Lutron PHPM-PA-DV-WH is a phase-adaptive power module designed to support multiple lighting load types in Grafik Eye control systems. It enables reliable operation of fluorescent, low-voltage, and incandescent lighting across a wide voltage range.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Lutron |
| Category | Lighting |
| Part Number | PHPM-PA-DV-WH |
| Subcategory | Lighting Controller |
| Product Type | Phase-Adaptive Power Module |
| Series / Style | Grafik Eye |
| Control Power | 120 V AC |
| Load Power | 120–277 V AC |
| Frequency | 50/60 Hz |
| Phase Configuration | Phase-to-neutral |
| Load Output Power | Phase independent of control unit |
| Current Capacity | 16 A |
| Terminal Capacity | Up to two #12 AWG (2.5 mm²) conductors |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Relative Humidity | <90% non-condensing |
| Maximum Heat Dissipation | 315 BTU/hour |
| Mounting Method | Surface or recessed indoor mounting |
| Plenum Rated | Yes |
| Color | White |
| Height | 5.1 in (13 cm) |
| Width | 6.3 in (16 cm) |
| Depth | 2.4 in (6.1 cm) |
| Certifications | UL Listed |
Information About PHPM-PA-DV-WH
The PHPM-PA-DV-WH is a Lutron power module developed for Grafik Eye lighting control systems that require phase-adaptive load management. It is designed to interface with 3-wire fluorescent dimmers, electronic and magnetic low-voltage loads, and switched incandescent lighting circuits. The module separates control power from load power, allowing flexible system design across mixed-voltage environments. It is typically installed in residential and commercial lighting panels where centralized phase adaptation and load compatibility are required.
Key Features
- Phase-adaptive load support: Enables compatibility with fluorescent, electronic low-voltage, magnetic low-voltage, and incandescent lighting systems.
- Wide voltage operation: Supports 120–277 V AC load power for use across diverse electrical infrastructures.
- Grafik Eye system integration: Designed specifically for use with Lutron Grafik Eye lighting control architectures.
- Phase-independent load operation: Allows load power to operate independently from the control unit phase.
- High current capacity: Rated for up to 16 A to support multiple or higher-load lighting circuits.
- Plenum-rated construction: UL approved for installation in air-handling spaces within indoor environments.
- Compact modular design: Supports surface or recessed mounting with efficient heat dissipation characteristics.
The PHPM-PA-DV-WH delivers the reliability and precision required for phase-adaptive lighting control in Lutron Grafik Eye systems operating across mixed load and voltage conditions.
