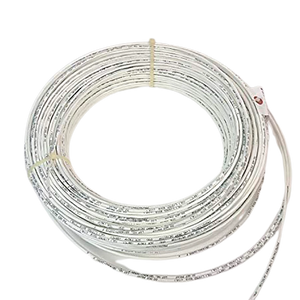

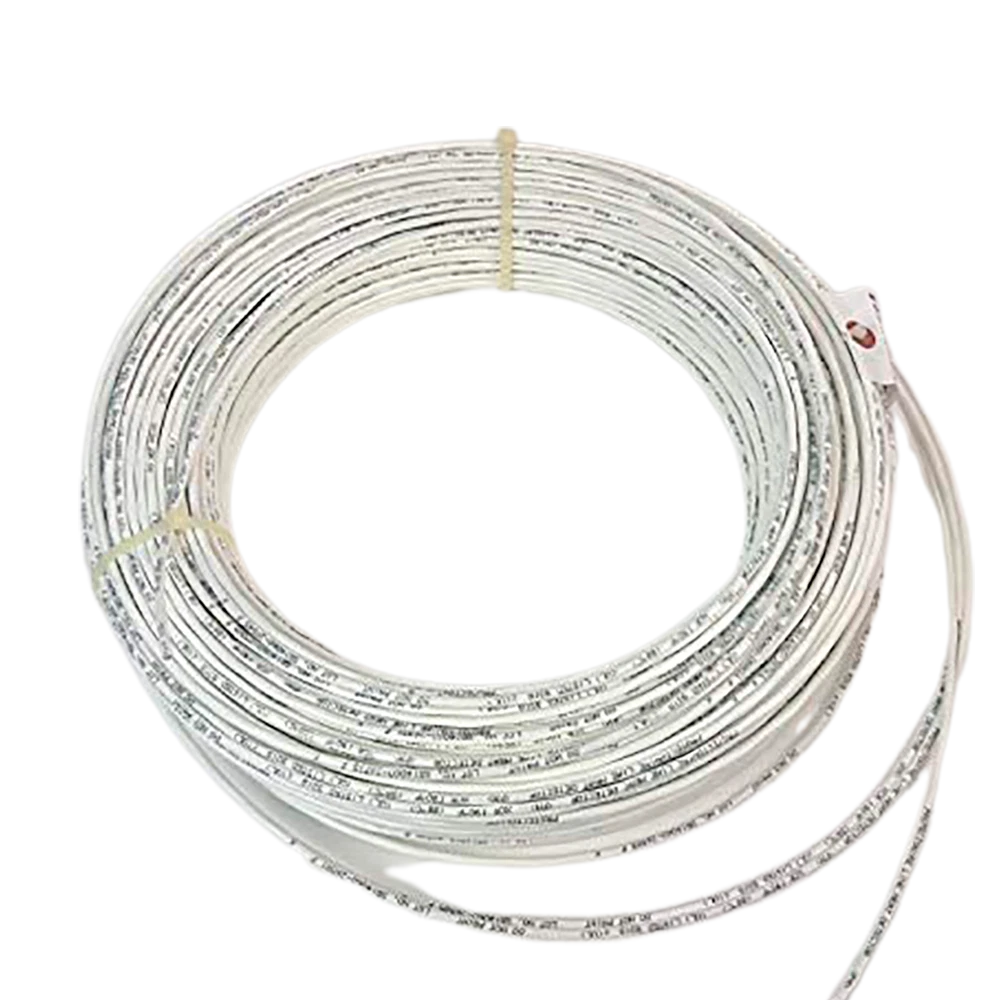

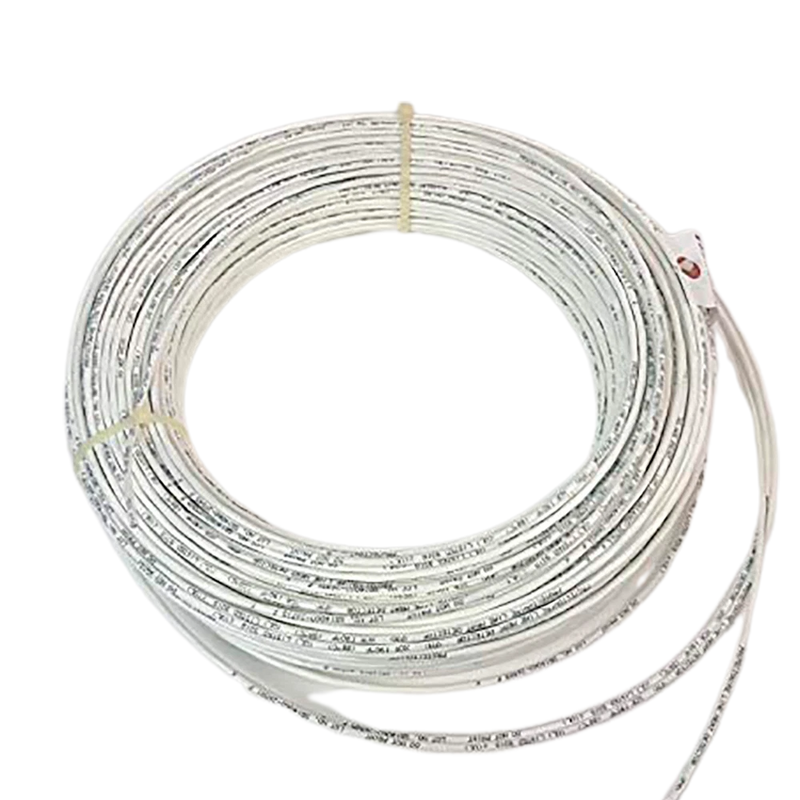

PHSC-190-EPC | Protectowire Linear Heat Detector Cable, 190°F (88°C), EPC Jacket, 500 ft
- Regular price
- $3,399.00
- Sale price
- $3,399.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: PHSC-190-EPC
Description
The Protectowire PHSC-190-EPC is a fixed-temperature linear heat detector cable rated at 190°F (88°C). Designed to detect heat at any point along its length, it provides continuous line coverage with point-type sensitivity. Rugged and reliable, the PHSC-190-EPC is ideal for applications requiring dependable fire detection in challenging environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Protectowire |
| Category | Fire Safety |
| Part Number | PHSC-190-EPC |
| Subcategory | Linear Heat Detector |
| Detector Type | Fixed-Temperature Linear Heat Detector Cable |
| Activation Temperature | 190°F (88°C) |
| Conductor Material | Steel |
| Insulation | Heat-sensitive polymer |
| Outer Jacket Type | EPC (environmental protective covering) |
| Detection Principle | Conductor contact under heat-sensitive polymer failure |
| Alarm Spacing | Listed up to 50 ft (15.2 m) |
| Installation | Easy splicing and testing |
| Compatibility | Can be used with other initiating devices on same circuit |
| Environmental Rating | Withstands severe conditions; approved for hazardous locations |
| Length Availability | Supplied in reels (500 ft standard) |
| Color | Typically red outer jacket |
| Weight | Approx. 12–15 lbs per 500 ft reel |
Information About PHSC-190-EPC
The PHSC-190-EPC is part of Protectowire’s EPC series of linear heat detectors, built with two steel conductors insulated by a heat-sensitive polymer. When the rated temperature of 190°F (88°C) is reached, the insulation yields, allowing the conductors to contact and trigger an alarm. This detector cable does not require calibration for ambient temperature changes and responds at the first point of heat exposure, providing quick and accurate detection. With its durable construction, it withstands severe environmental conditions and is approved for use in hazardous locations. It is listed for spacing up to 50 ft (15.2 m) and is compatible with other initiating devices on the same circuit.
Key Features:
- Fixed Temperature Activation: Initiates alarm at 190°F (88°C).
- Continuous Line Coverage: Detects heat at any point along the cable length.
- Durable Construction: Steel conductors with protective outer jacket resist harsh conditions.
- Hazardous Location Approval: Suitable for demanding industrial and hazardous environments.
- Simple Installation: Easy to install, splice, and test in the field.
- No Calibration Needed: Operates reliably without adjustment for ambient temperature changes.
- Wide Compatibility: Functions with other initiating devices on the same circuit.
- UL Listed Performance: Listed for spacing up to 50 ft (15.2 m).
The PHSC-190-EPC delivers proven reliability and coverage for industrial, commercial, and hazardous fire detection applications.
