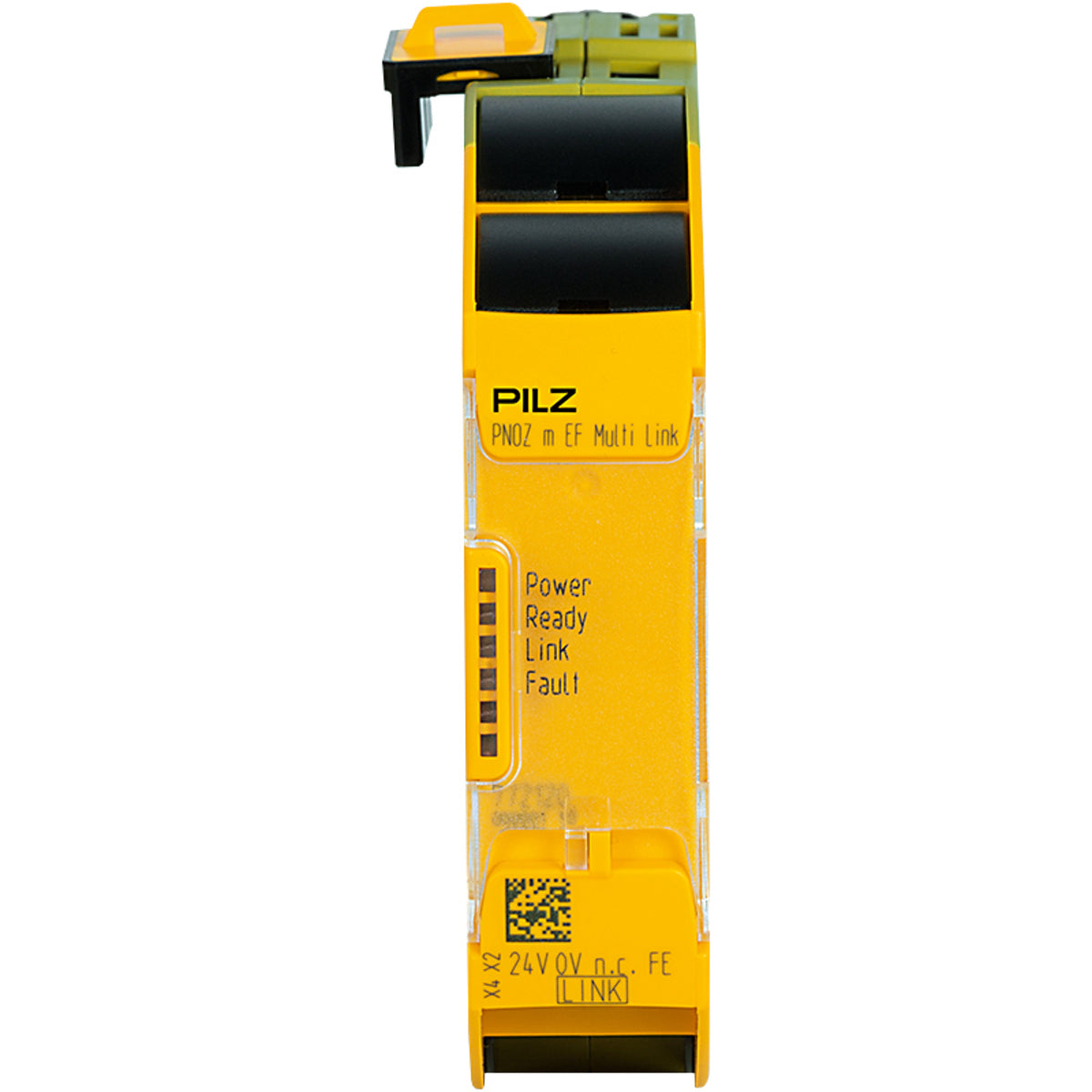

Pilz 772120 PNOZmulti 2 Multi Link Expansion Module
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 772120
Description
The Pilz 772120 PNOZ m EF Multi Link is a safety expansion module designed to connect two configurable PNOZmulti 2 safety controllers. Operating at 24 VDC, this module enables safe communication between controllers in industrial automation and machine safety applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pilz |
|
Category |
Safety Systems |
|
Part Number |
772120 |
|
Subcategory |
Safety Controller Expansion Module |
|
Product Name |
PNOZ m EF Multi Link |
|
Series |
PNOZmulti 2 |
|
Module Type |
Multi Link Expansion Module |
|
Application |
Fail-Safe |
|
Compatibility |
PNOZmulti 2 Controllers |
|
Supply Voltage |
24 VDC |
|
Power Consumption |
1 W |
|
Device Circuit Breaker |
4 A, Characteristic C |
|
Fieldbus Galvanic Isolation |
Yes |
|
Mounting Type |
Horizontal DIN Rail |
|
DIN Rail Size |
35 × 7.5 mm / 35 × 15 mm |
|
Housing Material |
Polycarbonate (PC) |
|
Terminal Type |
Pluggable Screw or Spring-Loaded |
|
Conductor Size |
24–12 AWG |
|
Housing Protection |
IP20 |
|
Mounting Protection |
IP54 |
|
Humidity Rating |
93% RH at 40°C |
|
Maximum Operating Altitude |
2000 m |
|
Overvoltage Category |
II |
|
Pollution Degree |
2 |
|
Dimensions (H × W × D) |
101.4 × 22.5 × 120 mm |
|
Net Weight |
91 g |
|
Gross Weight |
113 g |
|
Certifications |
CE, UKCA, cULus Listed, TÜV, EAC |
Information About 772120
The 772120 is a Multi Link expansion module from the Pilz PNOZmulti 2 configurable safety controller series. It provides a safe connection between two PNOZmulti 2 controllers, supporting fail-safe applications. The module features a compact polycarbonate housing and supports horizontal mounting on a 35 mm DIN rail. It offers galvanic isolation, pluggable connection terminals, and compliance with industrial safety and environmental standards.
Key Features:
-
Safe Controller Connection: Enables safe communication between two configurable PNOZmulti 2 safety controllers.
-
24 VDC Supply: Operates with a 24 VDC external power supply.
-
Fail-Safe Application: Designed for safety-related industrial automation systems.
-
Galvanic Isolation: Provides electrical isolation for the fieldbus interface.
-
DIN Rail Mounting: Supports horizontal installation on standard 35 mm DIN rails.
-
Compact Construction: Features a 22.5 mm wide polycarbonate housing for space-efficient installation.
-
Flexible Terminals: Supports pluggable screw or spring-loaded terminals.
-
Industrial Protection: Features IP20 housing protection and IP54 protection at the mounting location.
The 772120 delivers the reliability and precision required for safe controller interconnection in industrial automation systems.
