PJA36100U44A | Square D PowerPacT P 1000A 3-Pole 600VAC I-Line Molded Case Circuit Breaker
- Regular price
- $9,099.00
- Sale price
- $9,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PJA36100U44A
Description

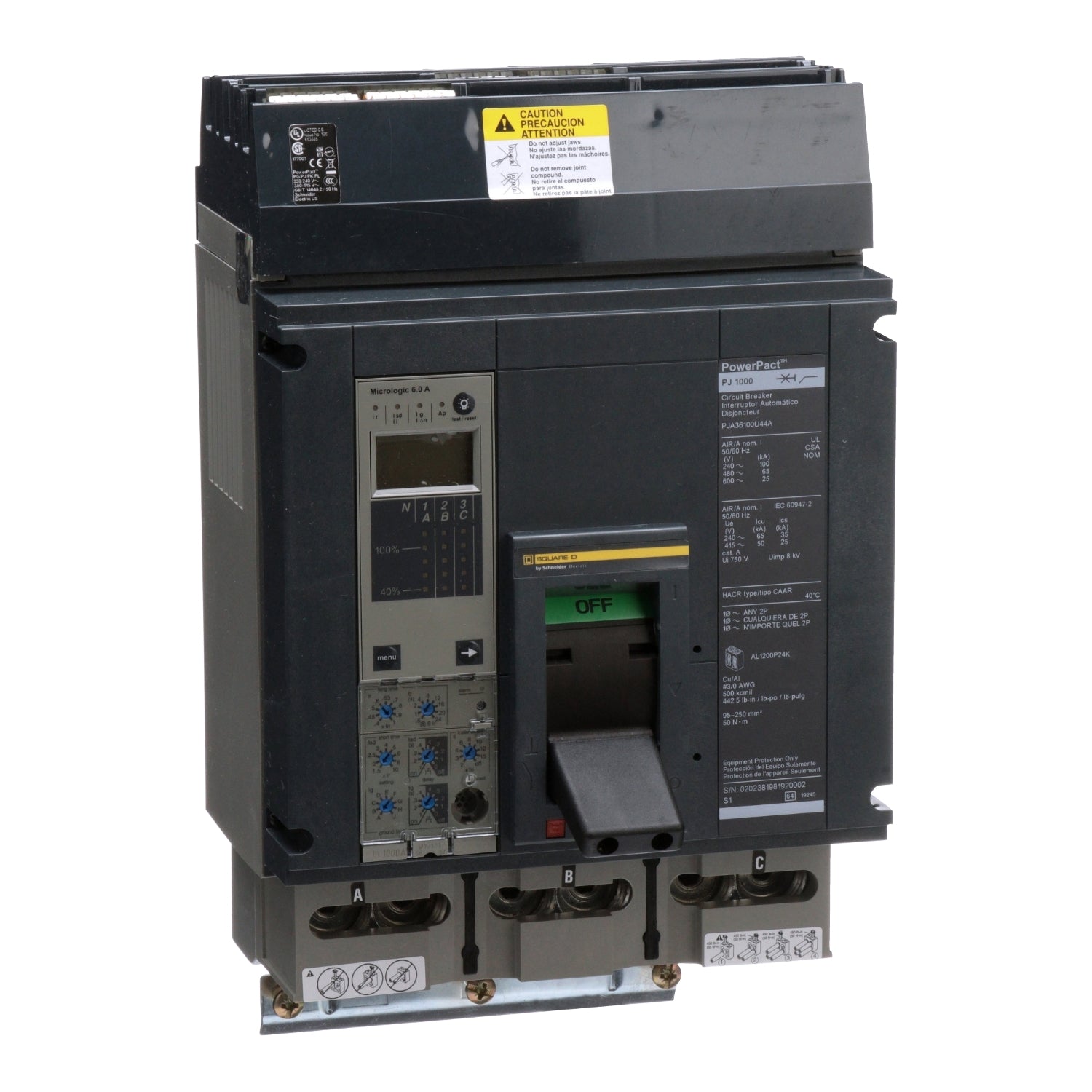

The Square D PJA36100U44A is a PowerPacT P-Frame molded case circuit breaker rated for 1000 Amps and 600VAC operation. This 3-pole breaker is equipped with a Micrologic 6.0A electronic trip unit providing LSIG protection functions. The PJA36100U44A is designed for I-Line mounting and supports high-capacity three-phase power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D by Schneider Electric |
| Category | Circuit Breakers |
| Part Number | PJA36100U44A |
| Subcategory | Molded Case Circuit Breaker Line |
| Rated Current | 1000 A |
| Number of Poles | 3 Pole |
| Rated Operational Voltage | 600 V AC, 50/60 Hz |
| Interrupting Capacity | 25 kA |
| Rated Service Breaking Capacity | 35 kA at 240 VAC |
| Trip Unit Name | Micrologic 6.0A |
| Trip Unit Technology | Electronic, LSIG |
| Continuous Current Rating | 80% |
| Rated Insulation Voltage | 750 V |
| Impulse Withstand Voltage | 8 kV |
| Mounting Mode | I-Line (Bracket Mount) |
| Electrical Connection | I-Line (Line) / Lugs (Load) |
| Terminal Identifier | AL1200P25K |
| Phase Connection | ABC |
| Height | 16.16 in |
| Width | 8.27 in |
| Depth | 8.05 in |
| Application Rating | HACR Rated |
Information About PJA36100U44A
The PJA36100U44A is part of Schneider Electric’s PowerPacT P-Frame circuit breaker family, developed for high-current industrial and commercial distribution applications. Its heavy-duty molded case construction supports an advanced electronic trip system that enables precise protection coordination. The breaker integrates into I-Line distribution systems using a bracket-mounted plug-in design on the line side with lug connections on the load side. It is commonly deployed in main and feeder circuits where adjustable LSIG protection and reliable interruption of high fault currents are required.
Key Features:
- 1000 Amp Rating: Designed for high-capacity feeder and main circuit protection.
- Three-Pole Configuration: Supports ABC phase operation in three-phase systems.
- Micrologic 6.0A Trip Unit: Provides electronic LSIG protection with metering capability.
- Field-Interchangeable Trip Unit: Allows flexible protection configuration and upgrades.
- 25kA Interrupting Capacity: Rated for dependable fault interruption at high voltage levels.
- I-Line Mounting Design: Enables secure integration into PowerPacT distribution systems.
- Push-to-Trip Button: Supports manual tripping for maintenance and safety operations.
The PJA36100U44A delivers the reliability and precision required for high-current power distribution and system protection applications.
