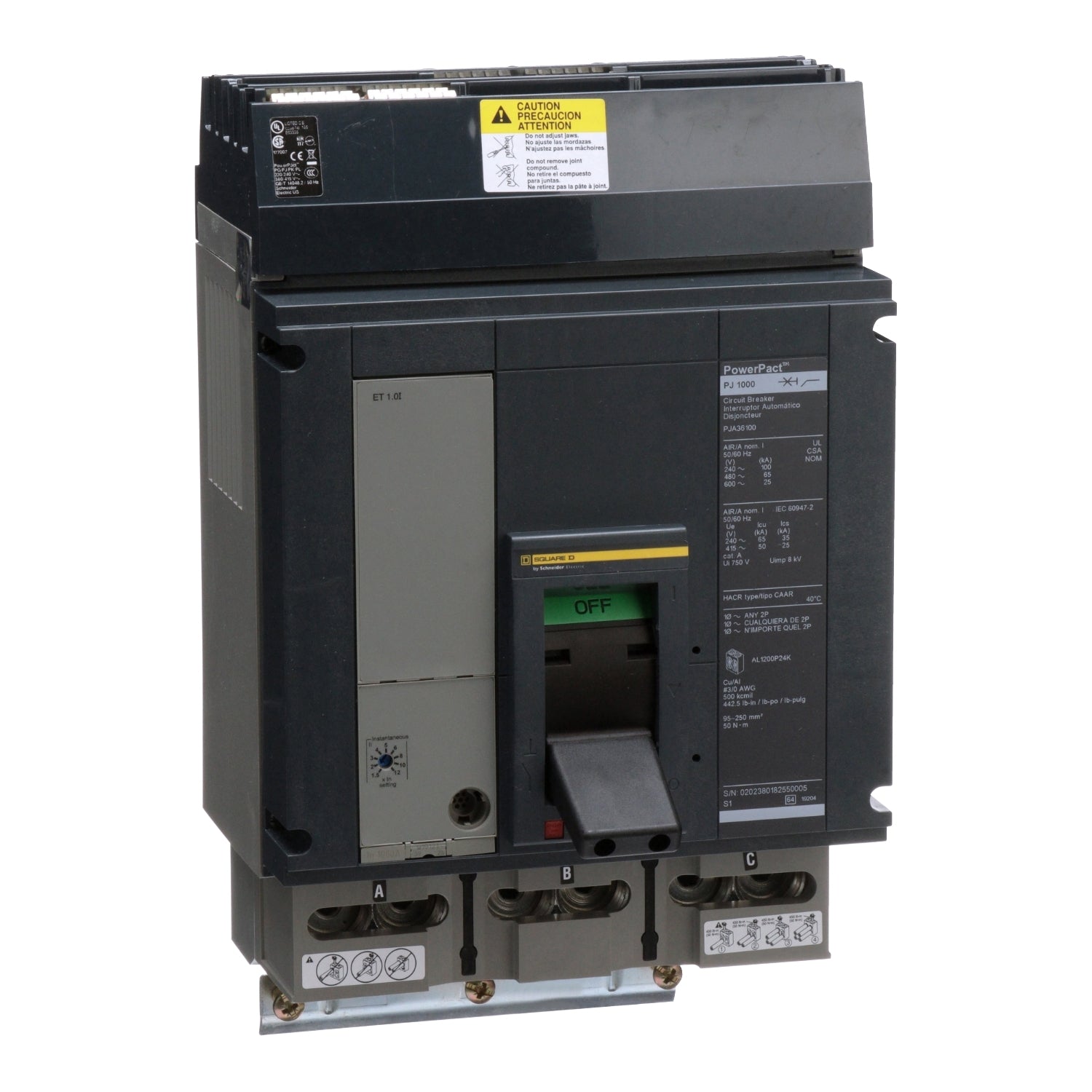

PJA36100U44A | Schneider Electric Circuit Breaker
- Regular price
- $14,999.00
- Sale price
- $14,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PJA36100U44A
Description
The PJA3610 is a PowerPacT P-Frame circuit breaker, designed for protecting electrical systems from overloads and short circuits. It is rated at 1000A, with a three-pole configuration and a voltage rating of 600VAC. The circuit breaker has an interrupting rating of 25kA and features an electronic trip unit, ET 1.0I.
Technical Specifications
|
Part # |
PJA36100U44A |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
1000 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
J |
|
[Ue] Rated Operational Voltage |
600 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Electronic, ammeter, MicroLogic 6.0 A, LSIG |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Trip Unit Name |
MicroLogic 6.0 A |
|
AWG Gauge |
4 x AWG 3/0...500 kcmil aluminium/copper |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Terminal Identifier |
AL1200P25K |
|
Long Time Pick-Up Adjustment Range |
0.4...1 x Ir |
|
Mounting Height |
9 in (228.60 mm) |
|
Power Wire Stripping Length |
1.18 in (30 mm) |
|
Height |
16.16 in (410.46 mm) |
|
Width |
8.27 in (210.06 mm) |
|
Depth |
8.05 in (204.47 mm) |
|
Net Weight |
32 lb(US) (14.51 kg) |
|
Quantity per Set |
1 |
|
Phase Connection |
ABC |
|
Circuit Breaker Application |
HACR rated |
|
IP Degree of Protection |
Front cover IP40 |
|
Pollution Degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
Information About PJA36100U44A
The PJA3610 is a PowerPacT P-Frame circuit breaker designed by Eaton for the protection of electrical systems from overloads and short circuits. This circuit breaker features a current rating of 1000A and operates at 600VAC with an interrupting capacity of 25kA. It is a three-pole device with an ABC phase connection and a continuous current rating of 80%. The trip unit integrated within this breaker is the ET 1.0I, a fixed long-time electronic trip unit that ensures reliable operation.
PowerPacT P-Frame circuit breakers are designed with the flexibility to accommodate either fixed electronic trip units, like the ET 1.0I, or interchangeable Micrologic trip units, depending on the specific requirements of the installation. The Micrologic trip units offer field interchangeability, enhancing the adaptability of the breaker to different protection needs. The ET 1.0I, while not interchangeable, provides dependable long-time electronic protection suitable for a wide range of applications.
One notable feature of all PowerPacT circuit breakers, including the PJA3610, is the integral push-to-trip button located on the cover. This button allows for manual tripping of the circuit breaker, facilitating maintenance and testing procedures. The PJA3610 is available in various configurations, including 2, 3, and 4-pole units, as well as unit mount, I-Line, or drawout constructions to fit different installation requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The PJA3610 is a PowerPacT P-Frame circuit breaker, designed for protecting electrical systems from overloads and short circuits. It is rated at 1000A, with a three-pole configuration and a voltage rating of 600VAC. The circuit breaker has an interrupting rating of 25kA and features an electronic trip unit, ET 1.0I.
Technical Specifications
|
Part # |
PJA36100U44A |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
1000 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
J |
|
[Ue] Rated Operational Voltage |
600 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Electronic, ammeter, MicroLogic 6.0 A, LSIG |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Trip Unit Name |
MicroLogic 6.0 A |
|
AWG Gauge |
4 x AWG 3/0...500 kcmil aluminium/copper |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Terminal Identifier |
AL1200P25K |
|
Long Time Pick-Up Adjustment Range |
0.4...1 x Ir |
|
Mounting Height |
9 in (228.60 mm) |
|
Power Wire Stripping Length |
1.18 in (30 mm) |
|
Height |
16.16 in (410.46 mm) |
|
Width |
8.27 in (210.06 mm) |
|
Depth |
8.05 in (204.47 mm) |
|
Net Weight |
32 lb(US) (14.51 kg) |
|
Quantity per Set |
1 |
|
Phase Connection |
ABC |
|
Circuit Breaker Application |
HACR rated |
|
IP Degree of Protection |
Front cover IP40 |
|
Pollution Degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
Information About PJA36100U44A
The PJA3610 is a PowerPacT P-Frame circuit breaker designed by Eaton for the protection of electrical systems from overloads and short circuits. This circuit breaker features a current rating of 1000A and operates at 600VAC with an interrupting capacity of 25kA. It is a three-pole device with an ABC phase connection and a continuous current rating of 80%. The trip unit integrated within this breaker is the ET 1.0I, a fixed long-time electronic trip unit that ensures reliable operation.
PowerPacT P-Frame circuit breakers are designed with the flexibility to accommodate either fixed electronic trip units, like the ET 1.0I, or interchangeable Micrologic trip units, depending on the specific requirements of the installation. The Micrologic trip units offer field interchangeability, enhancing the adaptability of the breaker to different protection needs. The ET 1.0I, while not interchangeable, provides dependable long-time electronic protection suitable for a wide range of applications.
One notable feature of all PowerPacT circuit breakers, including the PJA3610, is the integral push-to-trip button located on the cover. This button allows for manual tripping of the circuit breaker, facilitating maintenance and testing procedures. The PJA3610 is available in various configurations, including 2, 3, and 4-pole units, as well as unit mount, I-Line, or drawout constructions to fit different installation requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
