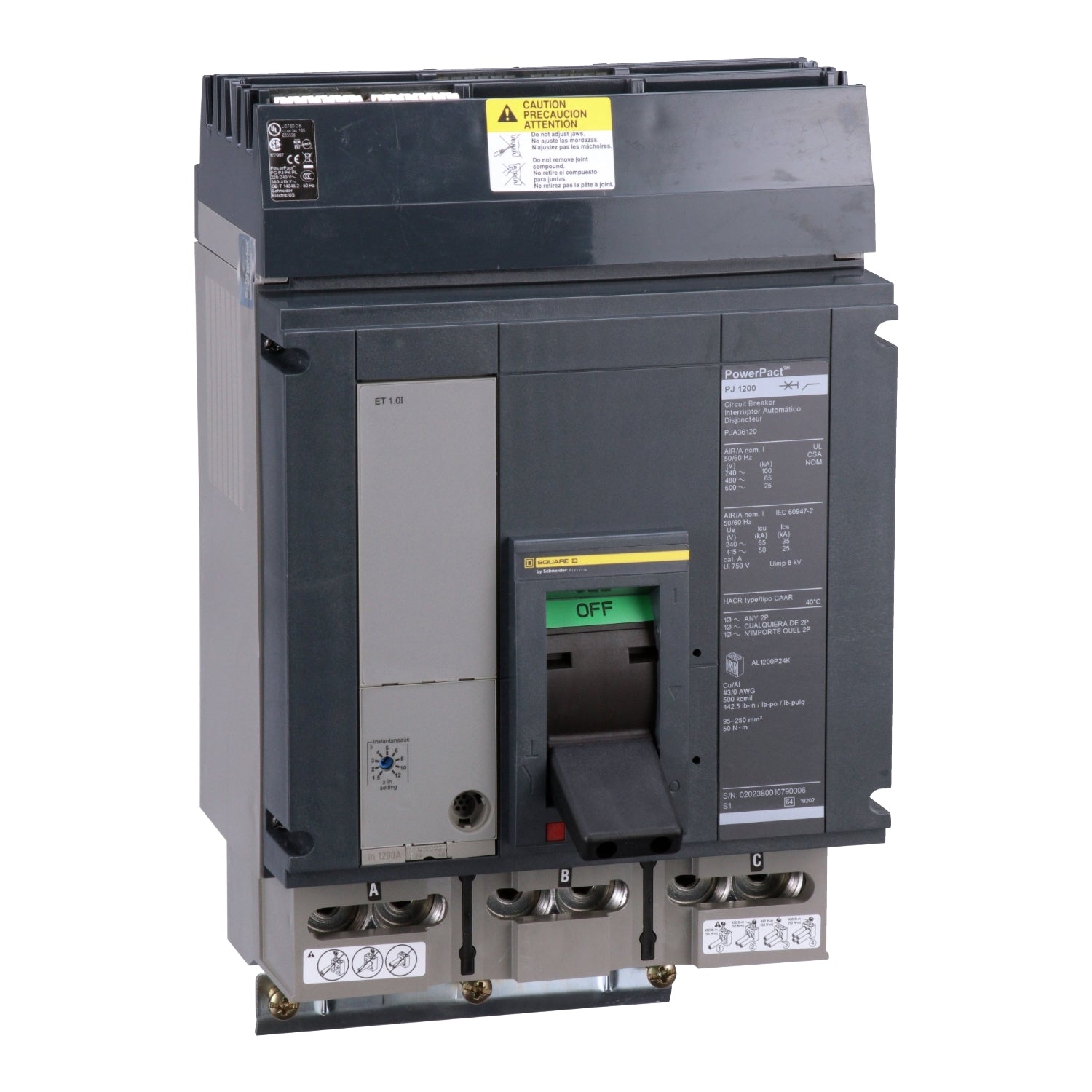

Part #: PJA36120 Manufactured by: Schneider Electric
Regular price
$7,495.00
Sale price
$7,495.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The PJA36120 is a PowerPacT P-Series circuit breaker designed for robust protection of electrical systems against overload...  Read more
