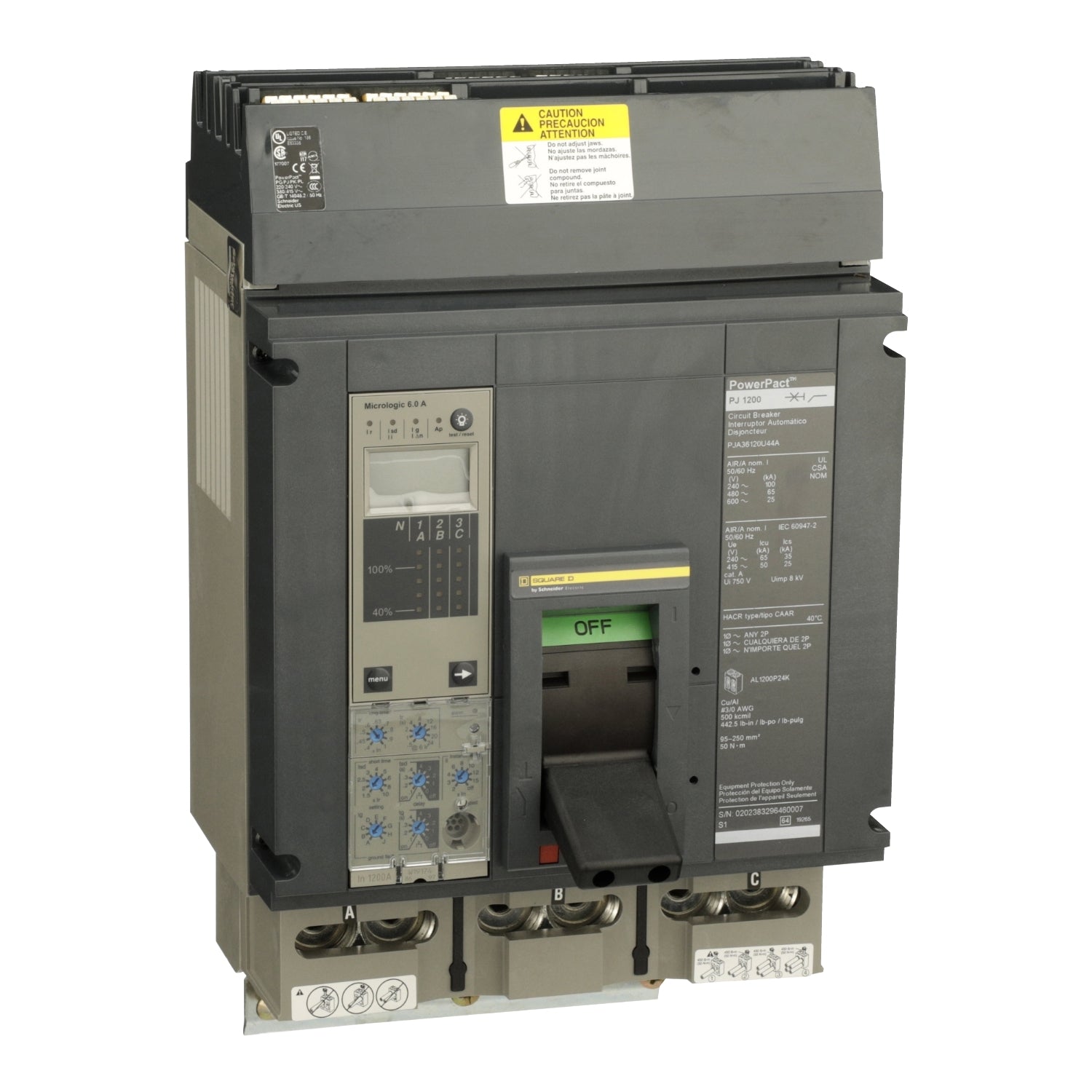

Part #: PJA36120U44A Manufactured by: Schneider Electric
Regular price
$15,499.00
Sale price
$15,499.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The PJA36120U44A is a PowerPacT P-Series circuit breaker designed for industrial applications requiring high current prote...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: PJA36120U44A
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: PJA36120U44A

Description / Specifications

Description

The PJA36120U44A is a robust circuit breaker from the PowerPacT P series, designed to safeguard electrical systems against overloads and short circuits. Featuring a 1200A rating and operating at 600VAC, it boasts an impressive interrupting capacity of 25kA. This breaker is equipped with a Micrologic 6.0A trip unit, specifically designed for interchangeability in the field, enhancing flexibility in application. It includes an LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) function, providing comprehensive protection capabilities.




Technical Specifications



Part #

PJA36120U44A

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

PowerPact

Product name

PowerPact P

Product or Component Type

Circuit breaker

Device Application

Distribution

Line Rated Current

1200 A

Number of Poles

3P

Control Type

Toggle

Breaking Capacity Code

J

[Ue] Rated Operational Voltage

600 V AC 50/60 Hz UL 489

Network Frequency

50/60 Hz

[Ics] Rated Service Breaking Capacity

35 kA 240 V AC 50/60 Hz IEC 60947-2 <br> 25 kA 380/415 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage

8 kV IEC 60947-2

Trip Unit Technology

Electronic, ammeter, MicroLogic 6.0 A, LSIG

Continuous Current Rating

80 %

[Ui] Rated Insulation Voltage

750 V IEC 60947-2

Trip Unit Name

MicroLogic 6.0 A

AWG Gauge

4 x AWG 3/0...500 kcmil aluminium/copper

Mounting Mode

I-Line bracket)

Mounting Support

Bracket

Electrical Connection

I-Line connection, line

Terminal Identifier

AL1200P25K

Long Time Pick-up Adjustment Range

0.4...1 x Ir





Information About PJA36120U44A

The PJA36120U44A is a PowerPacT P-Frame circuit breaker designed for robust protection against overloads and short circuits in electrical systems. Featuring a 1200A rating and configured as a 3-pole unit, it operates at 600VAC with an impressive interrupting rating of 25kA. This circuit breaker utilizes Micrologic 6.0A trip unit technology, specifically designed for interchangeability in the field, offering flexibility not available with fixed long time electronic trip units like ET 1.0I. The Micrologic Interchangeable Ammeter with LSIG function enhances monitoring and protection capabilities.

PowerPacT P circuit breakers are versatile, available in 2, 3, and 4-pole configurations, and can be installed using I-Line or drawout constructions. The unit is equipped with I-Line terminations on the line side and mechanical lugs on the load side, ensuring reliable connections in various applications. With a continuous current rating of 80% and an ABC phase connection, it meets stringent performance requirements across UL, CSA, NOM, and IEC standards, while carrying the CE mark for compliance in European markets.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
