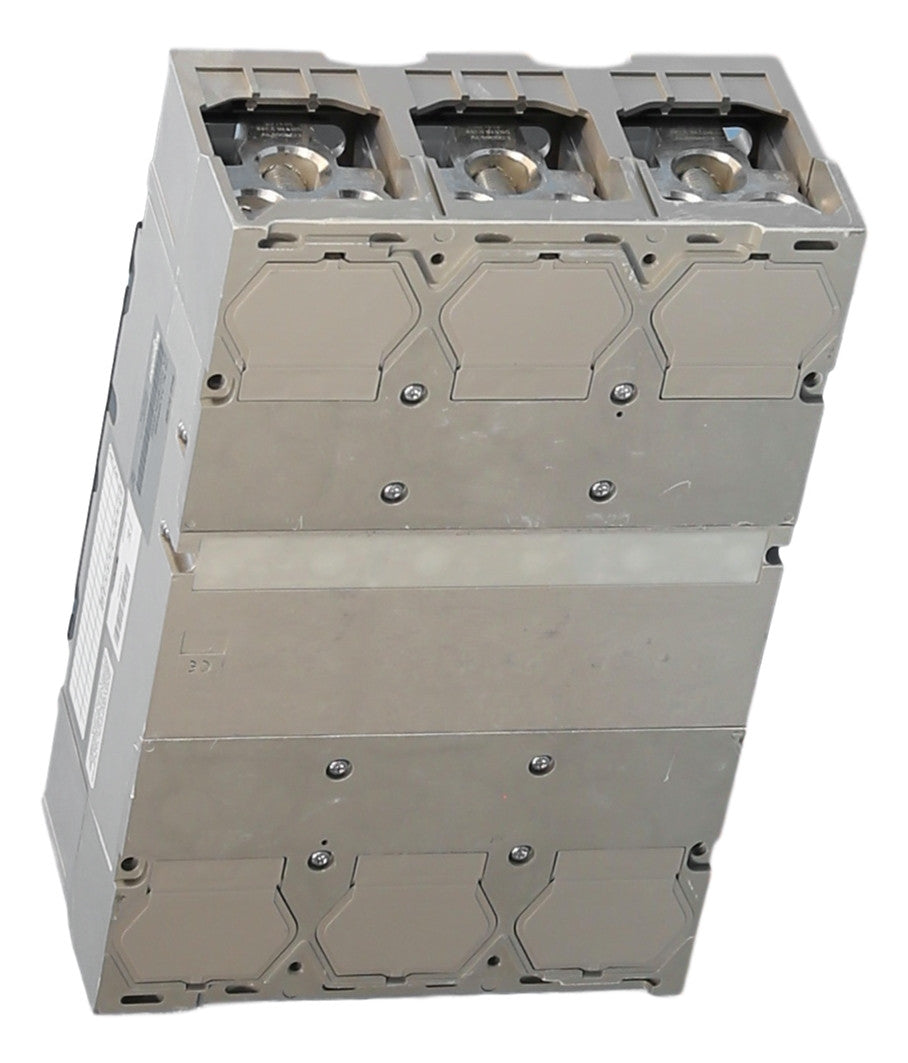

PJL36000S60 | Schneider Electric PowerPact P-Frame 600A 3-Pole Molded Case Switch
- Regular price
- $8,165.00
- Sale price
- $8,165.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PJL36000S60
Description
The Schneider Electric PJL36000S60 is a PowerPact P-frame molded case switch designed to safely open and close electrical circuits under normal operating conditions. It provides dependable disconnect functionality with a factory-set magnetic trip to protect the switch itself. This device is primarily used in industrial and commercial power distribution systems requiring high-current switching capability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | PJL36000S60 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPact P-Frame |
| Device Type | Automatic molded case switch |
| Current Rating | 600 A |
| Number of Poles | 3 |
| Rated Voltage | Up to 600 V AC |
| Frequency | 50/60 Hz |
| Interrupting / Withstand Rating | 25 kA at 600 V AC |
| Trip Type | Factory-set magnetic trip |
| Mounting Type | Panel mount |
| Line / Load Termination | Line and load lugs included |
| Certifications | UL, CSA, ANCE, IEC |
| Weight | 35.00 lb |
Information About PJL36000S60
The PJL36000S60 is part of Schneider Electric’s Square D PowerPact P-frame series, engineered for heavy-duty power distribution and disconnect applications. It is constructed as an automatic molded case switch, sharing the same physical design, accessories, and connection options as P-frame circuit breakers. The switch includes a factory-calibrated, non-adjustable magnetic trip to protect the molded case switch during fault conditions. Designed for panel mounting, it supports reliable operation in systems up to 600 VAC and complies with major North American and international electrical standards.
Key Features:
- PowerPact P-Frame Switch: Designed for high-current industrial disconnect applications.
- Automatic Molded Case Switch: Opens and closes circuits under normal operating conditions.
- 600 A Sensor Rating: Supports high-load power distribution systems.
- 3-Pole Configuration: Suitable for three-phase electrical systems.
- Factory-Set Magnetic Trip: Provides fixed short-circuit protection for the switch.
- Line and Load Lugs Included: Enables straightforward installation and termination.
- High Short-Circuit Withstand: Rated to withstand up to 25 kA at 600 VAC.
The PJL36000S60 delivers the reliability and precision required for safe and dependable power switching in industrial and commercial electrical distribution systems.
