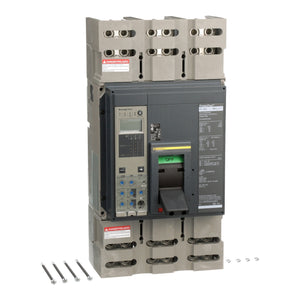

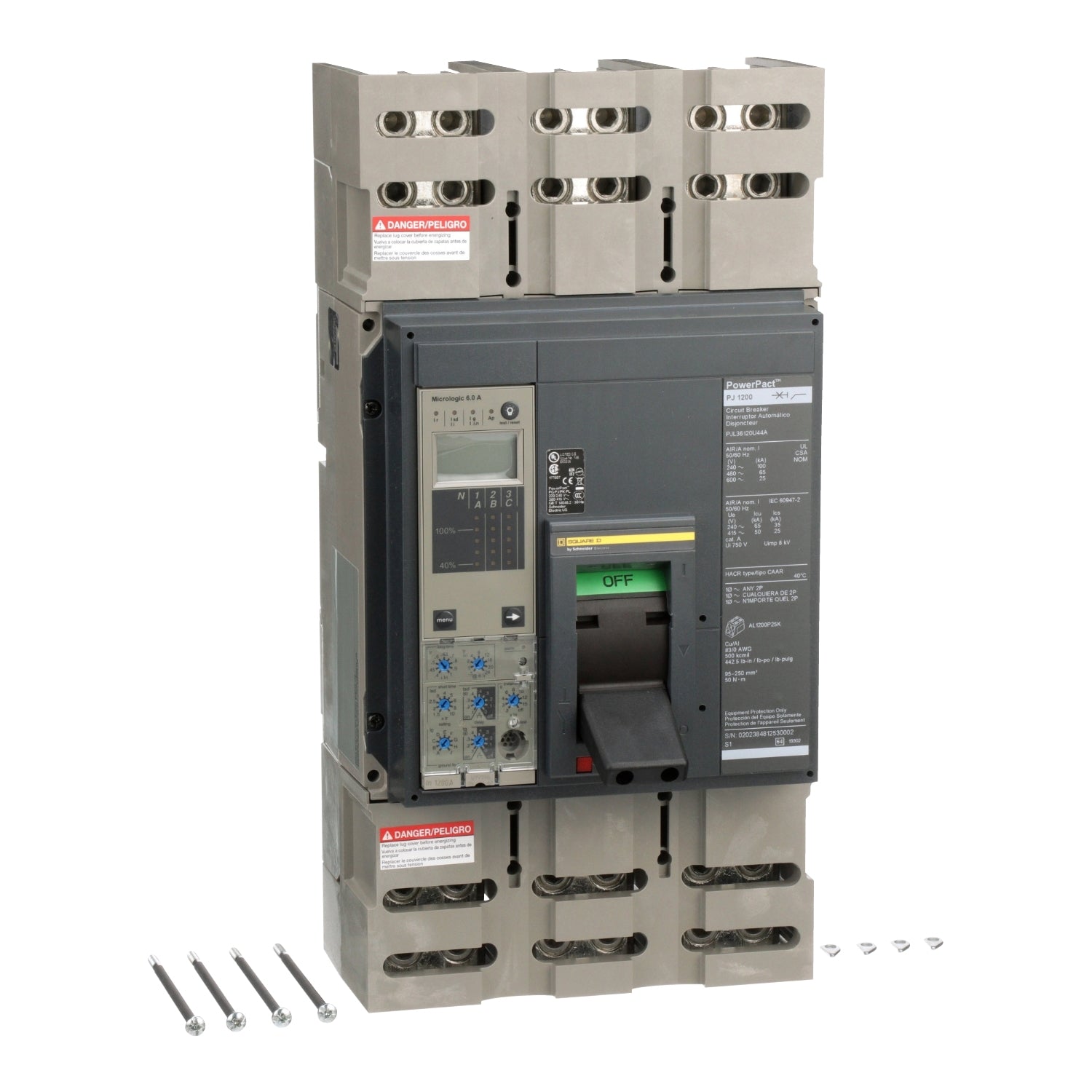

Part #: PJL36120U44A Manufactured by: Schneider Electric
Regular price
$22,479.00
Sale price
$22,479.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The PJL36120U44A is a PowerPacT P-Frame circuit breaker with a current rating of 1200A and a 3-pole configuration. It oper...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: PJL36120U44A
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: PJL36120U44A

Description / Specifications

Description

The PJL36120U44A is a PowerPacT P-Frame circuit breaker designed to protect electrical systems from damage caused by overloads and short circuits. This circuit breaker is rated for 1200A with a continuous current rating of 80%. It operates at 600VAC with an interrupting rating of 25kA.

The PJL36120U44A features a Micrologic Interchangeable Ammeter with a 6.0A trip unit and LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) functions. This configuration allows for precise and flexible protection settings. The circuit breaker includes a fixed long-time electronic trip unit and supports field interchangeability of Micrologic trip units for maximum flexibility.



Technical Specifications

Part #

PJL36120U44A

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

PowerPact

Product Name

PowerPact P

Product or Component Type

Circuit Breaker

Device Application

Distribution

Line Rated Current

1200 A

Number of Poles

3P

Control Type

Toggle

Breaking Capacity Code

J

[Ue] Rated Operational Voltage

600 V AC 50/60 Hz UL 489

Network Frequency

50/60 Hz

[Ics] Rated Service Breaking Capacity

35 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 380/415 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage

8 kV IEC 60947-2

Trip Unit Technology

Electronic, ammeter, MicroLogic 6.0 A, LSIG

Continuous Current Rating

80 %

[Ui] Rated Insulation Voltage

750 V IEC 60947-2

Trip Unit Name

MicroLogic 6.0 A

Suitability for Isolation

Yes IEC 60947-2

Utilisation Category

Category A

AWG Gauge

4 x AWG 3/0...500 kcmil aluminium/copper

Mounting Mode

Unit mount (lug)

Mounting Support

Lug

Power Wire Stripping Length

1.18 in (30 mm)

Height

16.16 in (410.46 mm)

Width

8.27 in (210.06 mm)

Depth

8.05 in (204.47 mm)

Net Weight

32 lb(US) (14.51 kg)





 Information About PJL36120U44A

PJL36120U44A - Circuit Breaker, PowerPacT P, 1200A, 3 Pole, 600VAC, 25kA, Lugs, Micrologic 6.0A, 80%. PowerPacT P-Frame circuit breakers are engineered to protect electrical systems from damage caused by overloads and short circuits. The PowerPacT P-Frame series includes either a fixed long-time electronic trip unit, ET 1.0I, or Micrologic trip units. The Micrologic trip units offer field interchangeability for maximum flexibility, a feature not available with the basic electronic trip unit.

This specific circuit breaker is equipped with a Micrologic Interchangeable Ammeter featuring a 6.0A trip unit and LSIG (Long-time, Short-time, Instantaneous, Ground fault) protection functions. All PowerPacT circuit breakers come with an integral push-to-trip button on the cover, enabling manual tripping of the circuit breaker.

PowerPacT P-Frame circuit breakers are available in various configurations, including 2, 3, and 4-pole unit mount, I-Line, or drawout constructions. The PJL36120U44A model has lugs on both the line and load sides, providing secure connections.
