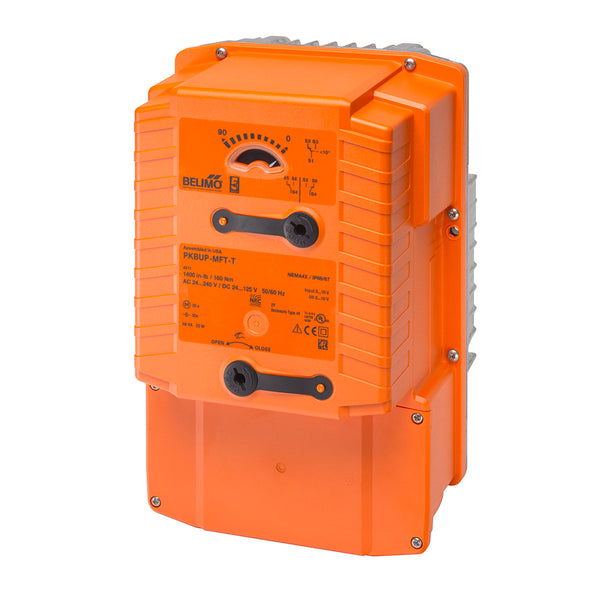

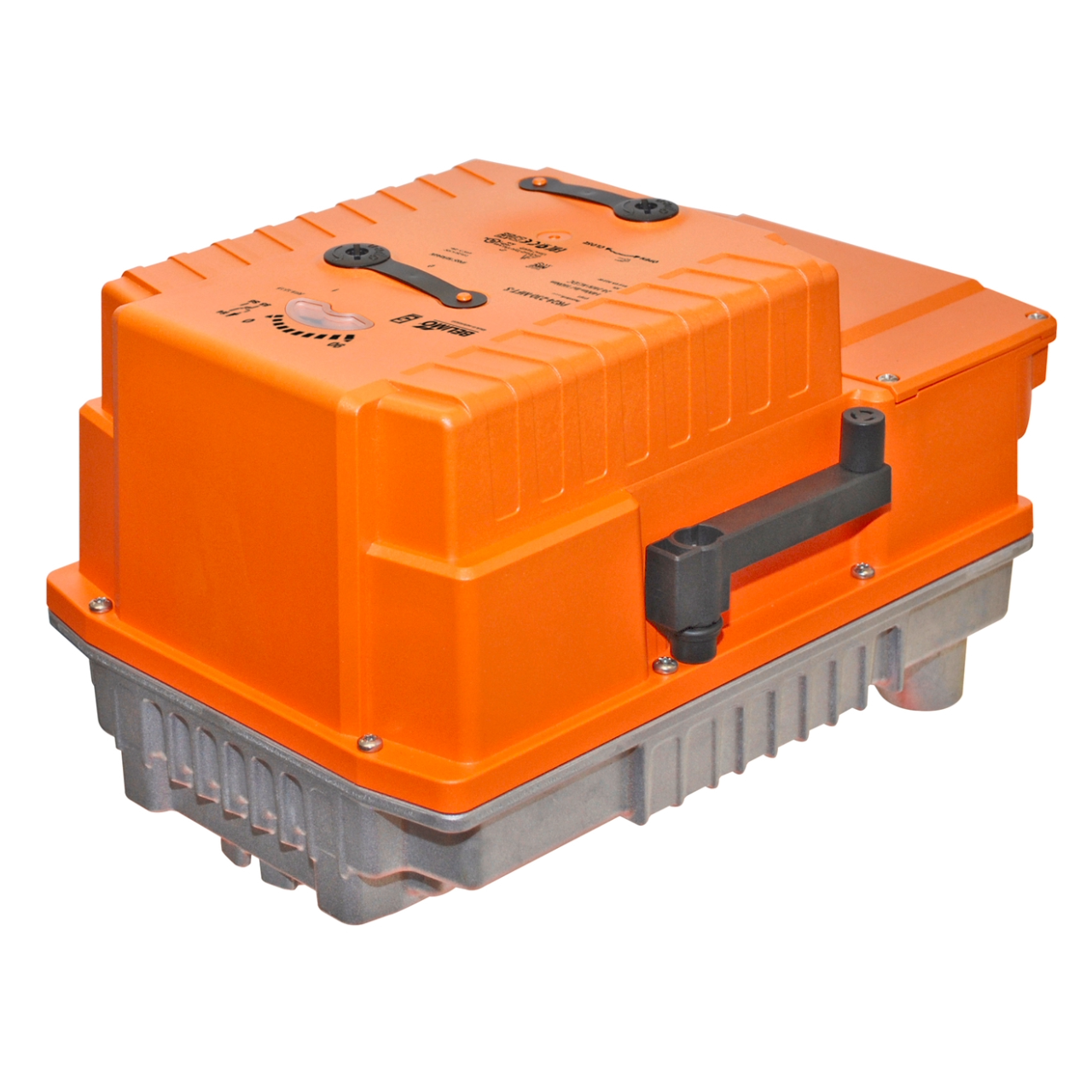

PKBUP-MFT-T | Belimo 1400 In Lb Electronic Fail Safe MFT Damper Actuator
- Regular price
- $3,724.00
- Sale price
- $3,724.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PKBUP-MFT-T
Description
The Belimo PKBUP-MFT-T is a high-torque damper actuator delivering 1400 in-lb of force with integrated electronic fail-safe functionality. It operates across a wide AC/DC voltage range and supports MFT programmable control for precise and flexible damper positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Damper Actuators |
| Part Number | PKBUP-MFT-T |
| Subcategory | Electronic Fail-Safe Actuators |
| Actuator Type | Electronic fail-safe, MFT programmable |
| Nominal Torque | 1400 in-lb (160 Nm) |
| Holding Torque | 50 Nm |
| Nominal Voltage | AC 24…240 V / DC 24…125 V |
| Nominal Frequency | 50/60 Hz |
| Voltage Range | AC 19.2…264 V / DC 19.2…137.5 V |
| Power Consumption (Running) | 52 W |
| Power Consumption (Rest) | 9 W |
| Control Signals | 2…10 V, 4…20 mA, On/Off, Floating Point |
| Communication Protocols | BACnet MS/TP, Modbus RTU, MP-Bus |
| Auxiliary Switches | 2 × SPDT |
| Angle of Rotation | Max. 95° |
| Running Time | 35 s / 90° (adjustable 30…120 s) |
| Fail-Safe Running Time | <30 s |
| Degree of Protection | IP66/67 |
| Enclosure Rating | NEMA 4X |
| Ambient Temperature | -22…122°F (-30…50°C) |
| Weight | 7.3 lb (3.3 kg) |
Information About PKBUP-MFT-T
The PKBUP-MFT-T is part of Belimo’s heavy-duty electronic fail-safe actuator platform developed for critical damper control applications. It combines high torque output with programmable MFT functionality, supporting analog, digital, and network-based control through BACnet MS/TP, Modbus RTU, and MP-Bus. The actuator features adjustable fail-safe positioning, configurable bridging time, and reversible direction of motion using the Belimo Assistant App. Its sealed IP66/67 and NEMA 4X enclosure ensures maintenance-free operation in harsh mechanical and environmental conditions.
Key Features
- High Torque Damper Actuation: Delivers 1400 in-lb of torque, supporting reliable operation of large and high-resistance dampers.
- Electronic Fail-Safe Functionality: Integrated energy storage enables controlled movement to a configurable safety position during power loss.
- MFT Programmable Control Platform: Supports 2…10 V, 4…20 mA, on/off, and floating point control with flexible parameter configuration.
- Integrated Network Communication: Native BACnet MS/TP, Modbus RTU, and MP-Bus enable direct connection to building automation systems.
- Adjustable Operating And Fail-Safe Timing: Motor and fail-safe runtimes are configurable to match system response requirements.
- Dual Auxiliary Switches: Two SPDT switches provide precise end-position indication and control interlocking.
- Rugged Environmental Protection: IP66/67 and NEMA 4X ratings protect against dust, moisture, and demanding operating conditions.
The PKBUP-MFT-T delivers the reliability and precision required for high-torque, fail-safe damper control in commercial and industrial HVAC systems.
