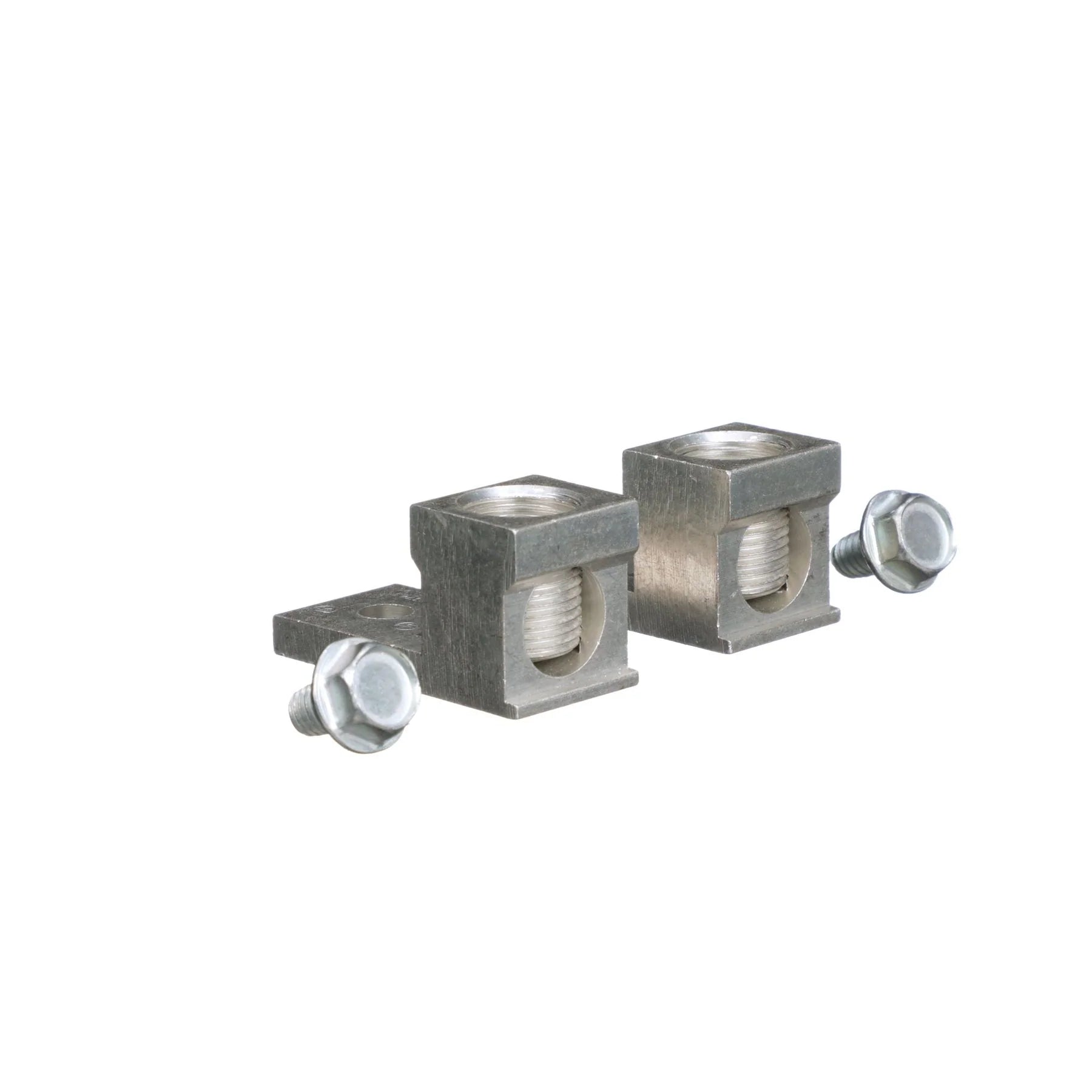

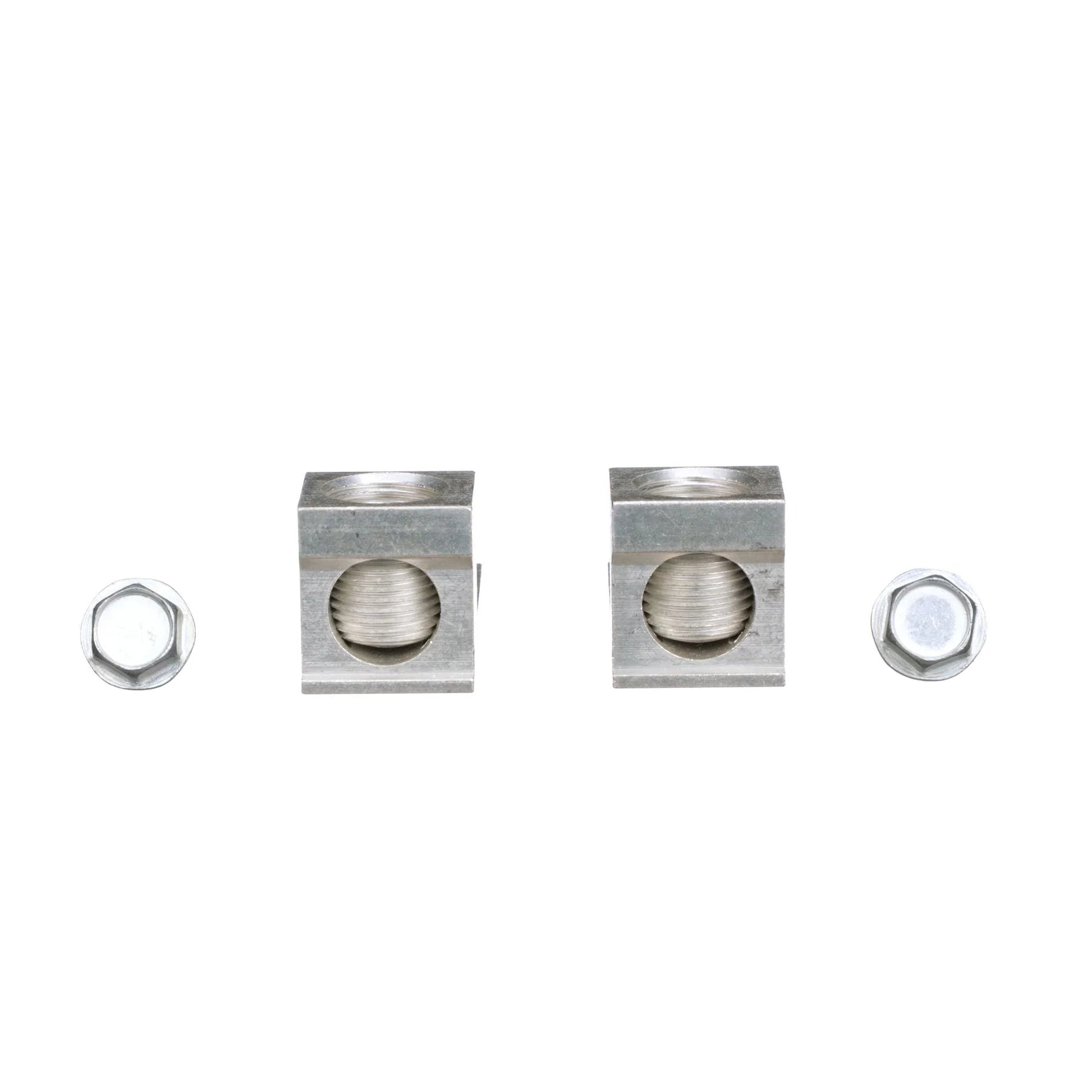

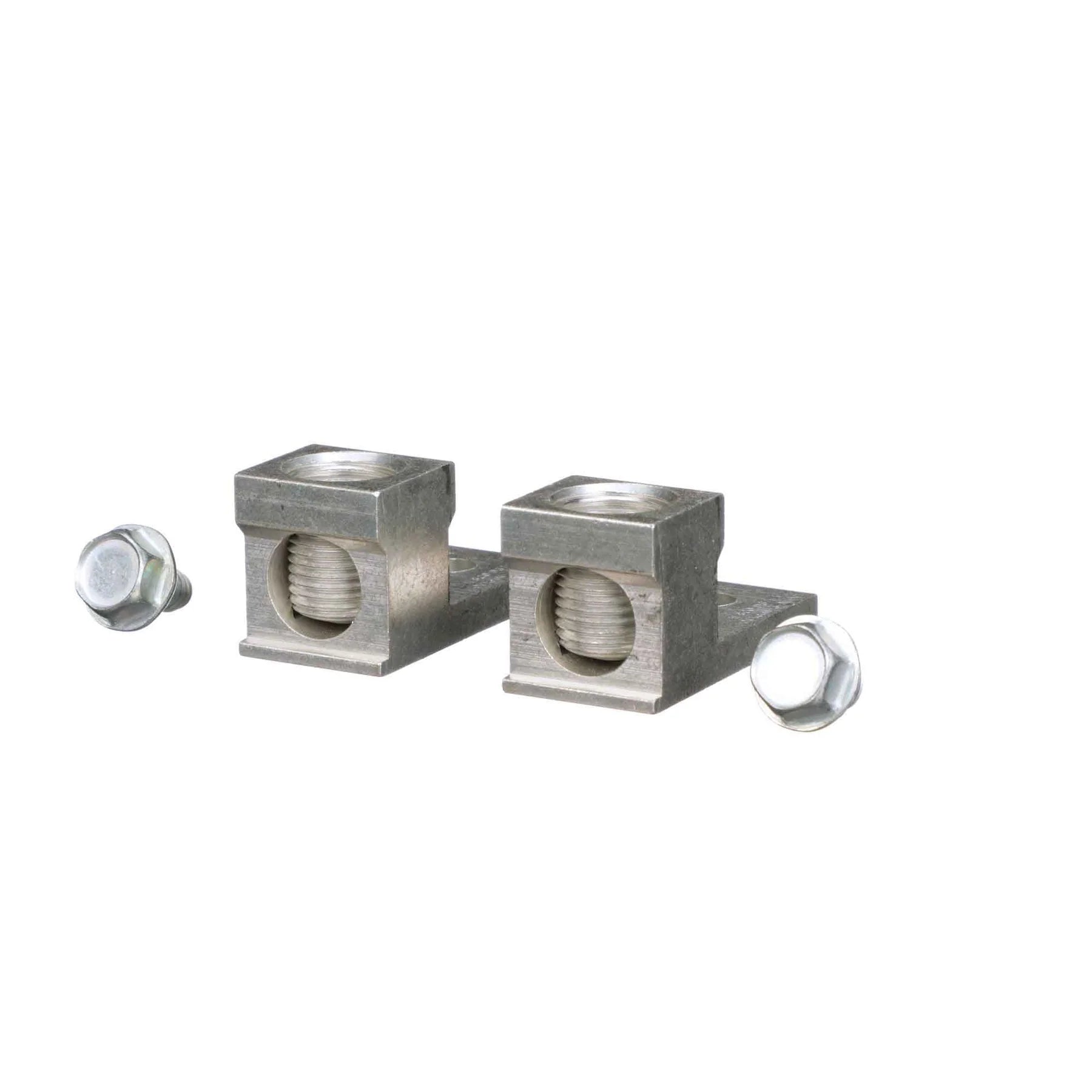

PKOGTJ250 | Schneider Electric Load Center Accessory

PKOGTJ250 is a Homeline load center accessory designed for use with PowerPact J-Frame circuit breakers, specifically grounding kits suitable for applications ranging from 400A to 600A with configurations available in 2 or 3 poles. These kits facilitate the secure grounding of electrical systems, ensuring safe and efficient operation in commercial and industrial environments.

The accessory includes secondary disconnecting blocks that enable circuit breaker connection wires to exit through automatic secondary disconnecting blocks. Each kit comprises a moving part connected to the circuit breaker through a support, with one support per circuit breaker, and a fixed part mounted on the plug-in base. These components are equipped with connectors suitable for wires up to 14 AWG (2.5 mm2), ensuring reliable electrical connectivity and support.

PKOGTJ250 is a grounding kit designed for Homeline load centers, compatible with PowerPact J-Frame circuit breakers rated between 400A to 600A and available in configurations of 2 or 3 poles. This accessory facilitates the exit of accessory circuits from the circuit breaker through one to three secondary disconnecting blocks, each accommodating nine wires. Circuit breaker connection wires equipped with trip units exit through automatic secondary disconnecting blocks comprising a moving part connected to the circuit breaker via a support (one support per circuit breaker) and a fixed part mounted on the plug-in base.

The PowerPact series offers robust performance and protection, ideal for heavy-duty commercial and industrial applications. It features integrated metering options that effectively manage energy consumption, optimize costs, and enhance energy availability within facilities. This grounding kit supports a broad range of thermal-magnetic and electronic trip molded case circuit breakers spanning from 15 A to 3000 A. These breakers are configured to meet diverse application requirements with standardized ratings and common catalog numbers, simplifying product selection, installation, and maintenance.
