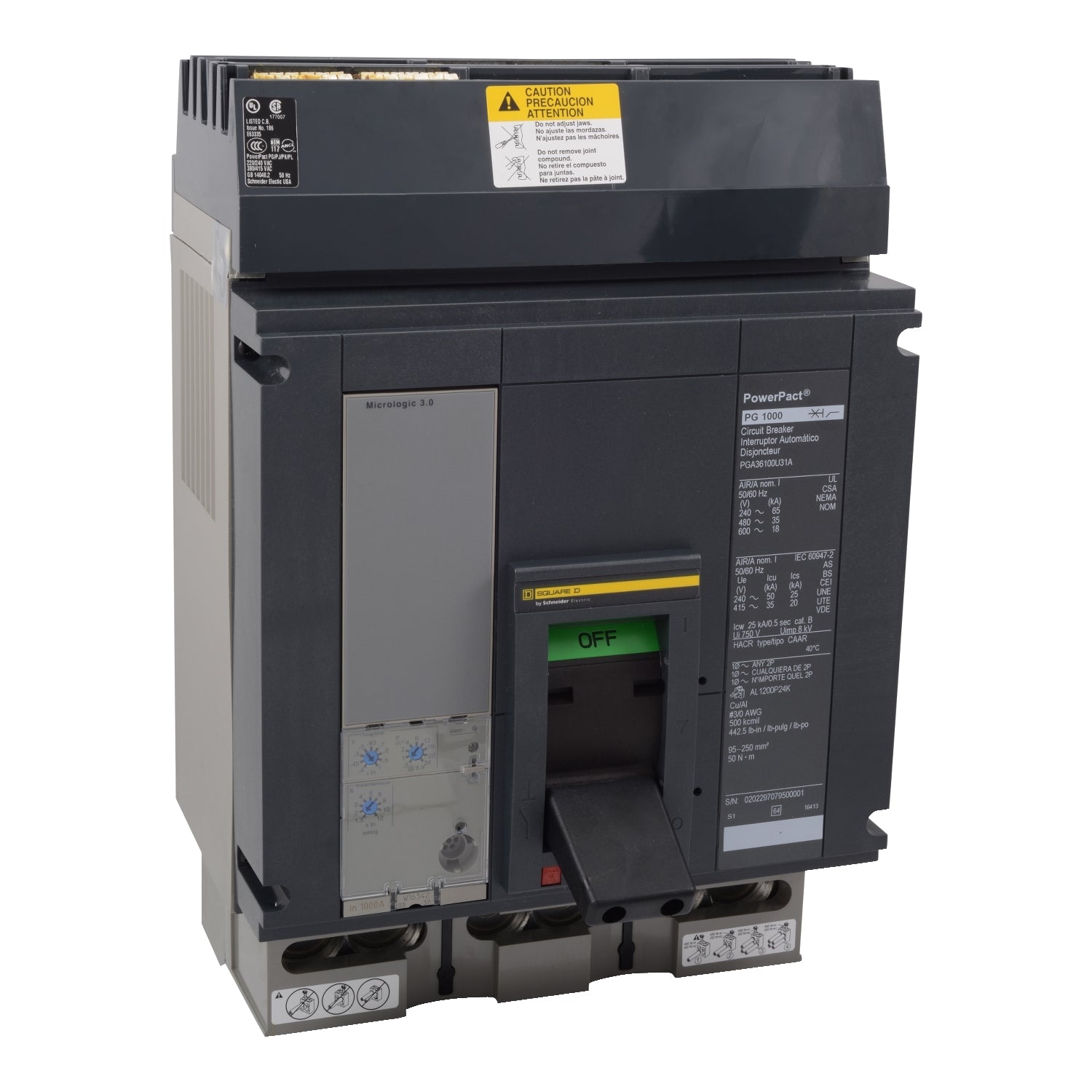

PLA34120 | Schneider Electric Circuit Breaker
- Regular price
- $13,499.00
- Sale price
- $13,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PLA34120
Description
The Schneider Electric PLA34120 is a 1200-amp, three-pole molded case circuit breaker engineered for high-capacity three-phase power distribution at 480V. Part of the PowerPact P-Frame family, it features a solid-state ET 1.0I trip unit with long-time and instantaneous protection capabilities. Its I-Line style plug-in connection enables rapid installation into compatible I-Line panelboards and busway systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | PLA34120 |
| Subcategory | Molded Case Circuit Breaker |
| Family | PowerPact |
| Type | PLA |
| Voltage Rating | 480 V |
| Amperage Rating | 1200 A |
| Phase | 3-Phase |
| Poles | 3 |
| AIC Rating | 100 kA @ 480 V |
| Protection Type | Solid State |
| Trip Unit | ET 1.0I, non-interchangeable |
| Trip Functions | LI – Long-Time and Instantaneous |
| Frame Type | P Frame |
| Connection Type | I-Line Style Plug-In |
| Phase Arrangement | ABC phase connection |
| Application | High-capacity industrial and commercial power distribution |
Information About PLA34120
The PLA34120 belongs to Schneider Electric’s PowerPact line of molded case breakers, designed for heavy-duty industrial and commercial applications requiring advanced circuit protection. Built on the P-Frame platform, the breaker supports high-amperage loads with a durable structure optimized for large distribution systems. The integration of a solid-state ET 1.0I non-interchangeable trip unit allows highly accurate monitoring and fault response, making it suitable for mission-critical installations. Equipped with an extra-high interrupting capacity of 100 kA at 480V and an I-Line plug-in interface, the PLA34120 provides fast, secure bus connection and dependable performance in demanding environments.
Key Features:
- PowerPact P-Frame construction: Heavy-duty molded case designed for high-capacity systems.
- 1200A rating: Supports large three-phase industrial and commercial loads.
- 480V AC operation: Suitable for major distribution and feeder applications.
- 100 kA interrupt rating: Extra-high fault-current capability for maximum protection.
- Solid-state ET 1.0I trip unit: Provides precise long-time and instantaneous protection.
- Non-interchangeable trip: Factory-configured electronic trip for stable performance.
- I-Line style plug-in connection: Ensures quick, secure mounting to I-Line bus systems.
- Three-pole configuration: Delivers balanced phase isolation and protection.
- ABC phase connection: Supports standard three-phase distribution layouts.
- Industrial-grade reliability: Suitable for harsh and continuous-duty environments.
The PLA34120 delivers the reliability and precision required for protecting high-capacity industrial and commercial power distribution equipment.
