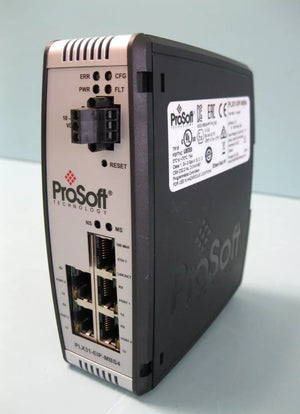

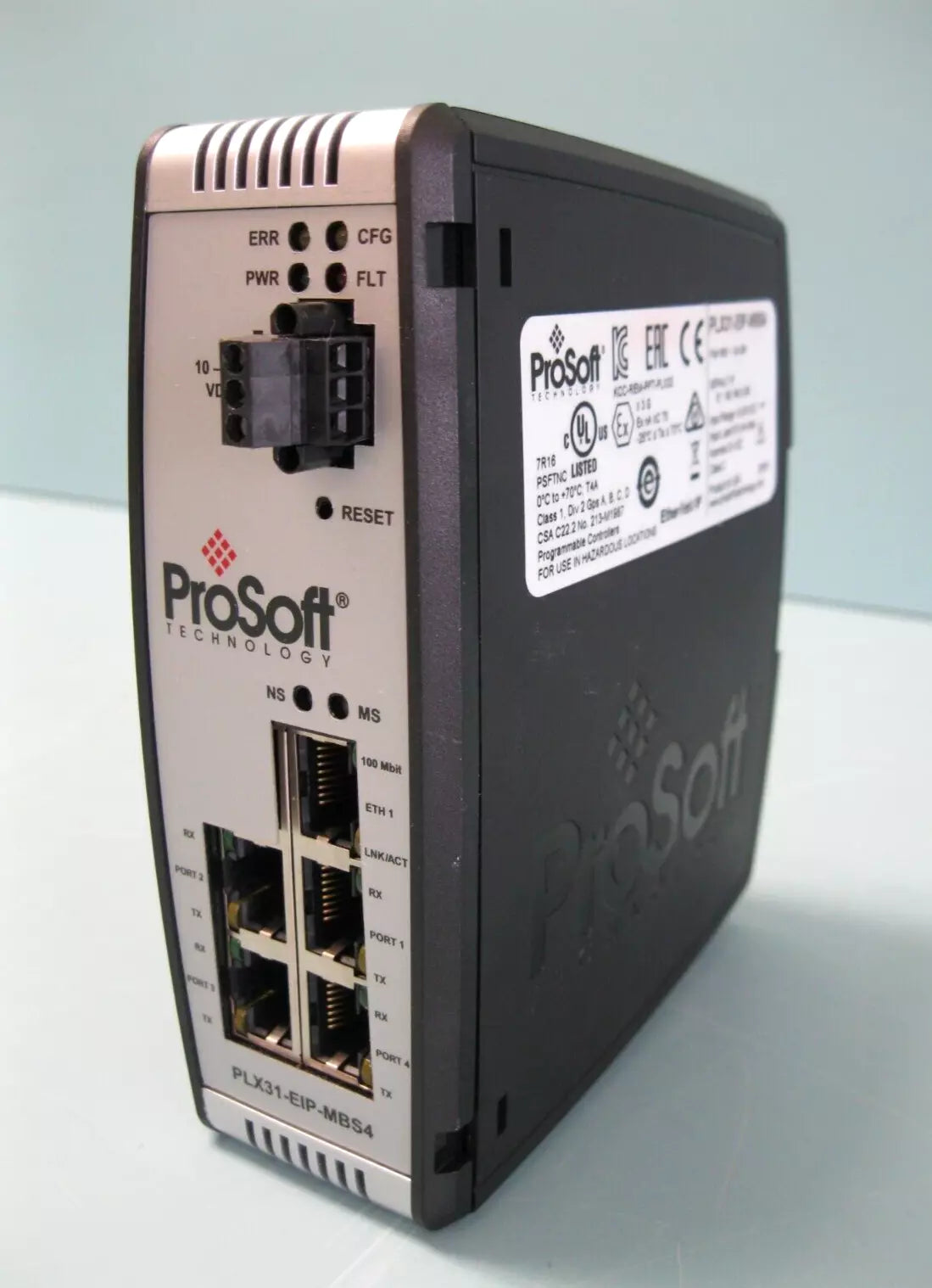

PLX31-EIP-MBS4 | Prosoft Communications Module

Description

The PLX31-EIP-MBS4 is a ProSoft communications module that enables data exchange between EtherNet/IP controllers and up to four Modbus Serial (RTU/ASCII) devices.

Technical Specifications

Information About PLX31-EIP-MBS4

The PLX31-EIP-MBS4 is a robust industrial communication gateway from ProSoft Technology, designed to bridge EtherNet/IP controllers with up to four Modbus serial devices. Supporting both Modbus RTU and ASCII, it enables integration of legacy serial equipment into modern automation systems. With a user-friendly web interface, Studio 5000 Add-On Profile (AOP) compatibility, and flexible master/slave functionality on all ports, the PLX31-EIP-MBS4 ensures seamless, reliable data exchange across protocols in demanding industrial environments.

Key Features:

• Compatibility: EtherNet/IP controllers (e.g., CompactLogix, ControlLogix) and Modbus RTU/ASCII devices

• Communication Protocols: EtherNet/IP (client/server) to Modbus RTU/ASCII (master/slave)

• Serial Ports: 4 × configurable RS-232/422/485 ports

• Ethernet Port: 1 × 10/100 Mbps for EtherNet/IP communication

• Max Modbus Devices: Supports up to 4 Modbus slave or master devices simultaneously

• Configuration Interface: Web-based GUI with real-time diagnostics

• Integration Support: Studio 5000 Logix Designer Add-On Profile (AOP)

• Security: Password-protected configuration access

• Diagnostics: Real-time communication and error logs

• Mounting Type: DIN-rail mountable

• Operating Temperature: -25°C to 70°C (-13°F to 158°F)

• Power Supply: 10 to 36 VDC

• Standards Compliance: UL, CSA, CE, RoHS, Class I Div 2 certified

This gateway is ideal for system integrators and automation professionals needing a scalable, flexible solution to connect Modbus serial devices with EtherNet/IP-based PLCs in industrial, energy, water, and building automation applications.
