PLX32-EIP-PND | Prosoft EtherNet/IP to PROFINET Device
- Regular price
- $2,609.00
- Sale price
- $2,609.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PLX32-EIP-PND
Description

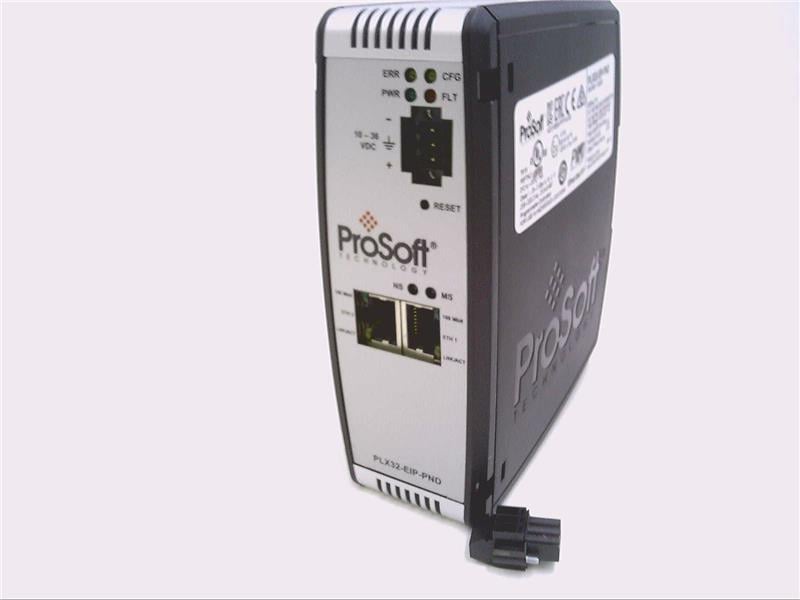

The ProSoft PLX32-EIP-PND is an EtherNet/IP to PROFINET gateway designed to facilitate bi-directional data communication between EtherNet/IP networks and PROFINET controllers. This stand-alone, DIN-rail mounted unit features two Ethernet ports, each operating on a different subnet, ensuring seamless integration between industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Prosoft |
| Category | PLCs and Accessories |
| Part Number |
PLX32-EIP-PND |
| Subcategory | PLCs (Programmable Logic Controllers) |
|
Number of Class 3 Server Connections |
5 |
|
Supported PLC Types |
PLC2, PLC5, SLC, CLX, CMPLX, MICROLX |
|
Supported Message Types |
PCCC and CIP |
|
Class 3 Client Connections |
Connected - 2 Unconnected - 1 |
|
Number of Class 1 I/O Connections |
8 |
|
I/O connection sizes in/out |
496/496 bytes |
|
Max RPI time |
5 ms per connection |
|
Power Supply |
24 VDC nominal |
|
Current Load |
24 VDC nominal 300 mA 10 to 36 VDC 610 mA maximum |
|
Operating Temperature |
-25°C to 70°C (-13°F to 158°F) |
|
Storage Temperature |
-40°C to 80°C (-40°F to 176°F) |
|
Relative Humidity |
5% to 95% RH with no condensation |
Information About PLX32-EIP-PND
The PLX32-EIP-PND gateway is designed to enable efficient communication between EtherNet/IP and PROFINET networks, ensuring smooth industrial automation processes. It features two 100Mbit Ethernet ports that operate independently, allowing connectivity across different network subnets. The device supports an optional SD card slot, which can be used for storing configuration files for backup, recovery, and easy device replacement. The EtherNet/IP driver supports Class 1 I/O connections and Class 3 messaging, while the PROFINET driver operates as a PROFINET Class A device, ensuring compatibility with various automation systems.
Key Features:
- Bi-directional communication: Connects EtherNet/IP and PROFINET networks for seamless data exchange.
- Two independent Ethernet ports: Operate on separate subnets for flexible network configurations.
- SD card slot (optional): Enables quick configuration backup and recovery.
- Supports EtherNet/IP Class 1 I/O and Class 3 messaging: Enhances industrial data transmission efficiency.
- PROFINET Class A compatibility: Ensures reliable operation within PROFINET networks.
- DIN-rail mounting: Compact, space-saving design for industrial panels.
- Power and error status indicators: Provides real-time system monitoring.
- Operating voltage: 1-36 VDC for industrial power supply compatibility.
- UL listed: Meets industrial safety and certification standards.
With its robust performance, flexible networking capabilities, and easy configuration backup, the ProSoft PLX32-EIP-PND is a reliable gateway solution for industrial automation. Its bi-directional communication support ensures seamless integration between EtherNet/IP and PROFINET systems.
