PLX51-DL-232 | ProSoft Data Logger
- Regular price
- $5,094.00
- Sale price
- $5,094.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PLX51-DL-232
Description

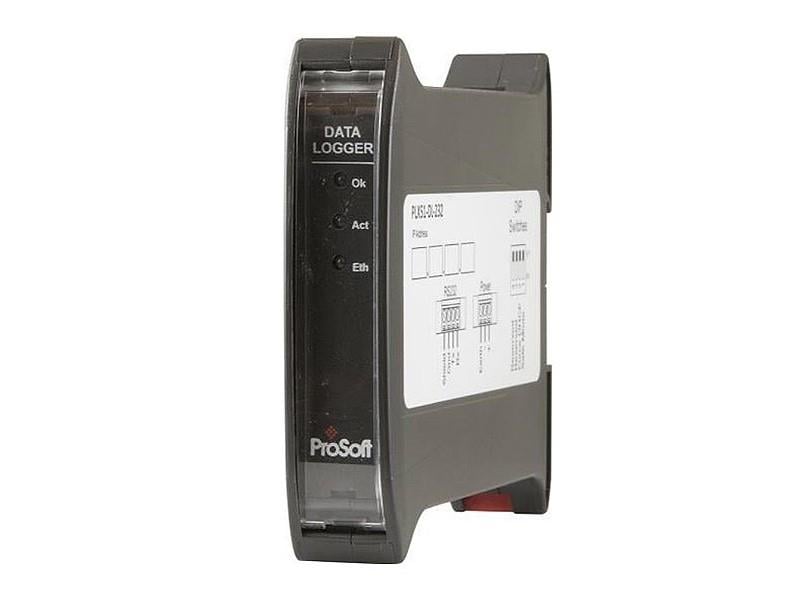

The ProSoft PLX51-DL-232 is a compact data logger that captures and stores serial data from RS-232 devices for analysis and troubleshooting.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | ProSoft |
| Category |
Computer
|
| Part Number | PLX51-DL-232 |
| Subcatecory |
Networking Router
|
|
Connector
|
RJ45 |
| Conductors | CAT5 STP/UTP |
| Communication Rate | 10/100 Mbps |
|
Enclosure Rating
|
IP20, NEMA/UL Open Type |
|
Power Requirements
|
Input: 10 to 28 VDC, (70 mA @ 24 VDC / 130 mA @ 10 VDC) |
|
Power Consumption
|
1.7 W |
|
Temperature
|
-20°CC to 70°CC |
|
Conductors
|
24 to 18 AWG |
|
Weight
|
3.00 lbs |
Information About PLX51-DL-232
The ProSoft Technology PLX51-DL-232 is a compact industrial data logger designed for capturing and storing critical process data from industrial control systems. It is part of the PLX51 series, offering flexible data collection capabilities in a DIN-rail mountable design.
Key Features:
-
Communication Protocols: EtherNet/IP™, Modbus® TCP/IP, DF1 Serial, Modbus RTU
-
Storage Capacity: Over 16 million records in non-volatile memory
-
Logging Modes: Overwrite mode and Hold mode
-
Logging Interval: As fast as 50 milliseconds
-
Data Export: Manual download via CSV file using the PLX50 Configuration Utility
-
Integrated Web Server: Real-time diagnostics and monitoring
-
Communication Ports: 1 x RJ45 Ethernet (10/100Base-TX), 1 x RS232 serial port
-
Power Supply: 10 to 28 VDC (typical 70 mA @ 24 VDC)
-
Enclosure: Plastic housing, IP20 rated
-
Operating Temperature: -20°C to +70°C
-
Mounting Options: DIN rail
-
Certifications: UL/cUL Class I Div 2, ATEX Zone 2 Cat 3, CE, RoHS2 compliant
The PLX51-DL-232 is ideal for applications requiring reliable, high-speed data logging across multiple industrial networks. Its robust design, broad protocol support, and user-friendly configuration make it an excellent solution for remote monitoring, predictive maintenance, and process optimization.
