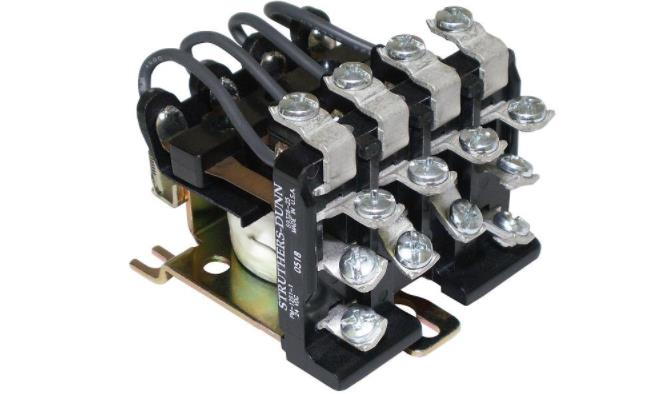

PM-17AY-120 | Stuthers-Dumn Open Style Power Relay 25 A 240 VAC
- Regular price
- $129.00
- Sale price
- $129.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PM-17AY-120
Description
The Stuthers-Dumn PM-17AY-120 is an open-style, general-purpose power relay designed for reliable switching in industrial applications. With a high current rating and a 4PDT contact configuration, it delivers robust performance across diverse control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Stuthers-Dumn |
| Category |
Panel Accessories
|
| Part Number | PM-17AY-120 |
| Subcategory | Relay/Socket |
| Series | PM Series |
| Voltage Rating | 240 V |
| Primary Type | Power Relays |
| Relay Type | General Purpose |
| Function | Monostable |
| Termination | Screw |
| Standards | UL |
| Coil Voltage | 110 VAC, 115 VAC, 120 VAC, 125 VAC |
| Coil Resistance | 120 Ohms |
| Contact Current Rating | 35 A |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | 50 °C |
| Weight | 0.89 lbs |
Information About PM-17AY-120
The PM-17AY-120 is part of the Stuthers-Dumn PM Series of power relays. Designed for general-purpose use, it features a 4PDT contact form capable of handling up to 35 A at 300 VAC, making it suitable for high-demand switching applications. Its coil voltage is versatile, supporting 110 VAC, 115 VAC, 120 VAC, and 125 VAC, while its coil resistance is rated at 120 Ohms. The relay is built to endure harsh operating environments with a minimum temperature of -40°C and a maximum temperature of 50°C. The unit meets UL standards and includes screw-type terminations for secure connections. It also boasts a dielectric rating of 2000 V RMS (coil to contacts and contacts to frame) and 1500 V RMS (pole to pole and across open contacts), ensuring safe and reliable operation.
Key Features:
- Contact Current Rating: 35 A capability at 300 VAC supports high-power switching requirements, suitable for demanding industrial applications.
- Contact Configuration: 4PDT contact arrangement offers flexibility in circuit design and control configurations.
- Coil Voltage: Supports multiple AC coil voltages (110 VAC, 115 VAC, 120 VAC, 125 VAC), ensuring adaptability to various power systems.
- Dielectric Rating: 2000 V RMS insulation between coil and contacts, and 1500 V RMS pole-to-pole, ensuring safe operation and isolation.
- Temperature Range: Operates reliably between -40°C and 50°C, making it suitable for a wide range of industrial environments.
The PM-17AY-120 is a durable and versatile relay, ideal for high-current switching tasks across industrial control systems.
