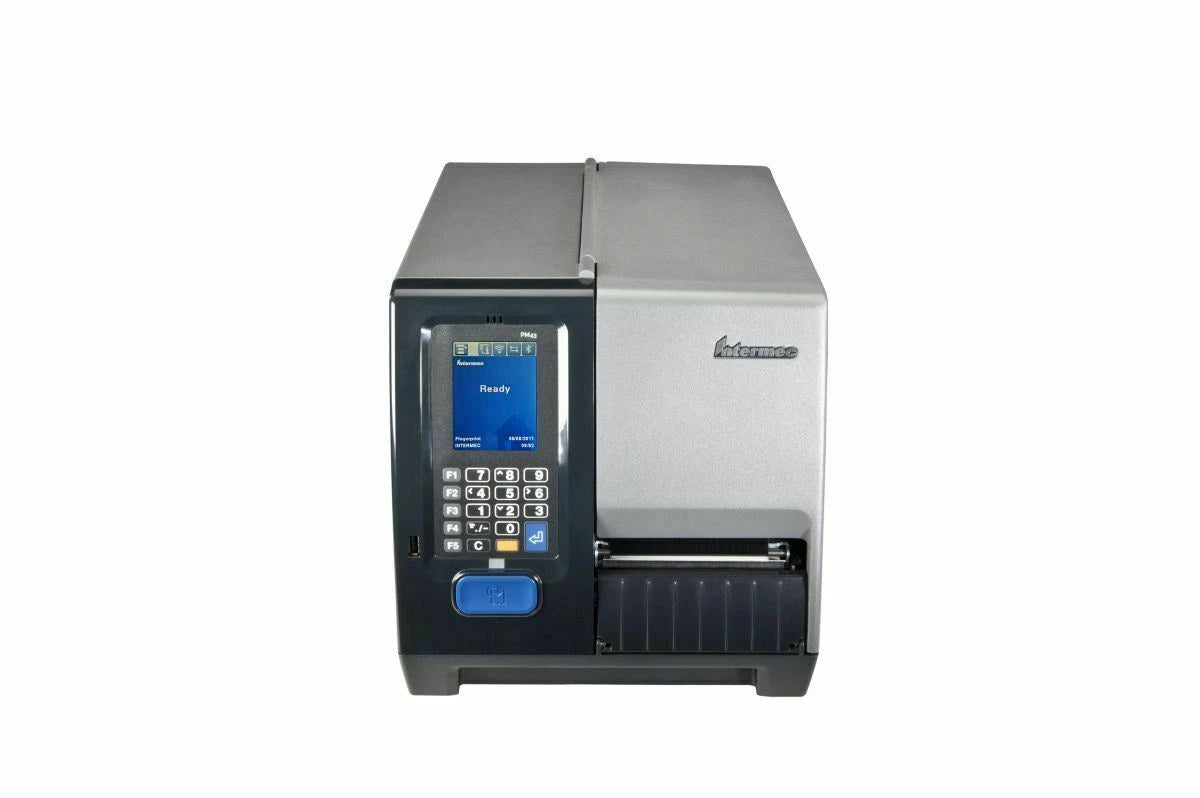

PM43G11010040201 | Honeywell PM43 406 dpi Industrial Barcode Label Printer
- Regular price
- $2,599.00
- Sale price
- $2,599.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: PM43G11010040201
Description
The Honeywell PM43G11010040201 (PM43) industrial label printer is a mid-range thermal transfer printer designed for industrial settings. It delivers high-resolution (406 dpi) printing with fast throughput and multiple connectivity options, supporting efficient deployment in warehouses, manufacturing, and distribution environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Printers |
| Part Number | PM43G11010040201 |
| Subcategory | Printer |
| Print Method | Thermal Transfer / Direct Thermal |
| Print Resolution | 406 dpi |
| Print Speed | 100–250 mm/s (4–10 ips) at 406 dpi; up to 300 mm/s (12 ips) at lower dpi modes |
| Max Print Width | 104 mm (4.09 in) at 406 dpi |
| Media Types | Labels and tags, linerless/linered media |
| Media Width Range | 19 – 114 mm (0.75 – 4.5 in) |
| Media Thickness | 3 – 10.4 mil |
| Label Roll Max Diameter | 80 mm (3.15 in) |
| Label Core Size | 25.4 mm (1 in) core for media; 38–76 mm (1.5–3 in) feeder core |
| Interface / Connectivity | Ethernet 10/100, USB 2.0 (device + host), RS-232; optional WiFi, Bluetooth, parallel, industrial I/O boards |
| Supported Protocols & Languages | IPL, DPL, ZSim2 (ZPL-II), XML; TCP/IP, LPR/LPD, FTP, SNMP, IPv4/IPv6 |
| Memory | 128 MB Flash, 128 MB SDRAM |
| Operating Temperature | +5 °C to +40 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 20 – 80 % non-condensing |
| Power Input | 100 to 240 VAC, 45–65 Hz |
| Power Consumption | Standby: ~9 W; Peak: ~300 W |
| Certifications / Compliance | CE, RoHS, FCC Class A, UL/cUL |
| Weight | 15.82 kg (34.88 lb) |
Information About PM43G11010040201
The PM43G11010040201 belongs to Honeywell’s PM Series (specifically the PM43 family), which is engineered for robust, continuous operation across industrial environments. It supports both direct thermal and thermal transfer modes, and offers an intuitive user interface via a multilingual color touchscreen or icon-based UI. Built for modular expansion, it allows integration of optional components such as RFID, cutters, rewinders, and industrial I/O boards. With support for Ethernet, USB, RS-232, and optional wireless, it fits into both legacy and modern network architectures.
Key Features:
- High Print Resolution (406 dpi): Provides sharp, high-density output ideal for small text, fine barcodes, and detailed graphics.
- Fast Print Speeds: Capable of up to 100–250 mm/s (4–10 ips) at 406 dpi; and up to 300 mm/s (12 ips) at lower resolutions.
- Flexible Connectivity: Includes standard Ethernet (10/100 Mbps), USB 2.0 (device and host), RS-232 serial; optional parallel, WiFi and Bluetooth support.
- Advanced User Interface: Comes with a tamper-resistant multilingual color touchscreen or icon interface, reducing operator errors and training overhead.
- Industrial Build Quality: Metal frame construction and precision mechanisms designed for heavy daily use in harsh environments.
- Modular Expandability: Supports optional modules: RFID, label cutter, linerless media, peelers, rewinder, industrial I/O boards.
- Smart Printing Platform: Supports embedded C# applications, enabling direct integration of logic and workflows on the printer itself.
- Comprehensive Protocol Support: Compatible with command languages such as IPL, DPL, ZSim2 (ZPL-II emulation), XML; supports IPv4/IPv6, FTP, SNMP, LPR/LPD.
- Memory & Storage: Equipped with 128 MB Flash and 128 MB SDRAM, plus support for USB memory devices for large job storage.
The PM43G11010040201 delivers the flexibility, reliability, and advanced features required for industrial labeling and identification workflows.
