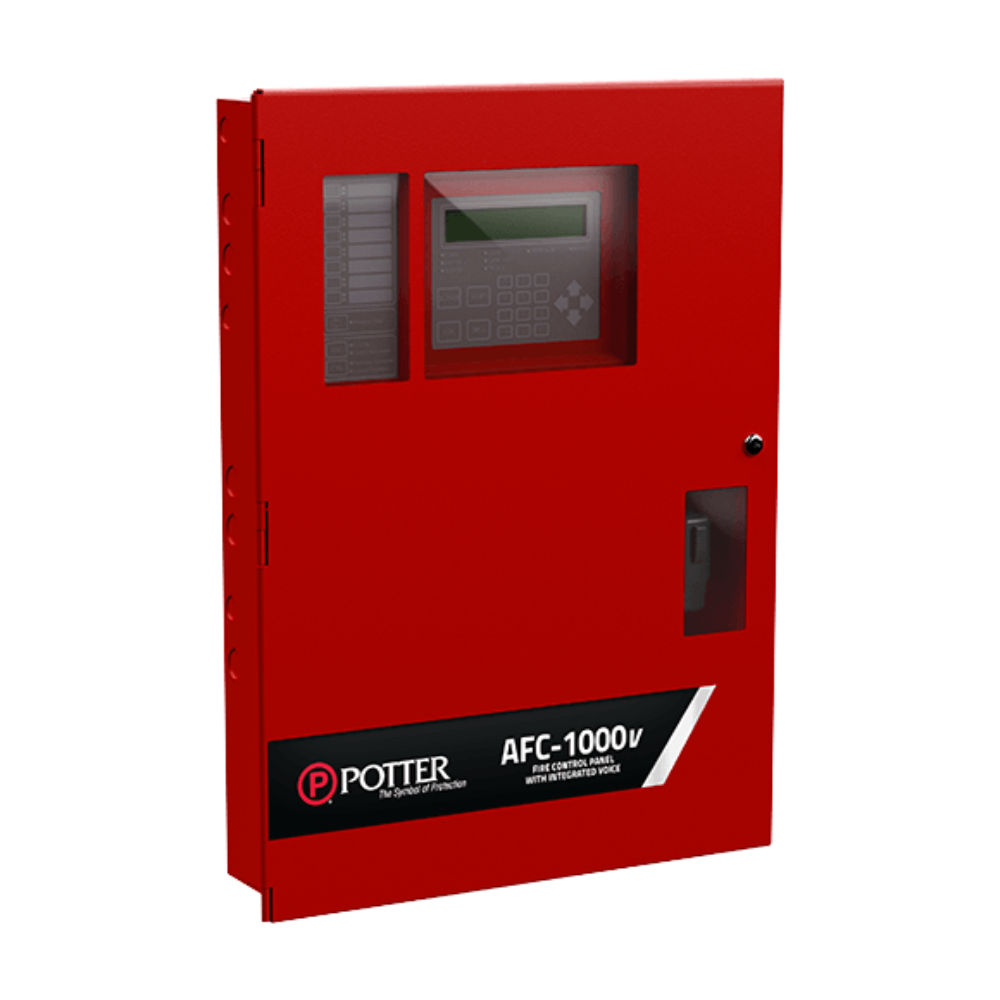

Potter AFC-1000V Addressable Fire Alarm Control Panel with Voice Evacuation
- Regular price
- $4,717.00
- Sale price
- $4,717.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AFC-1000V
Description
The Potter AFC-1000V is an integrated voice emergency evacuation panel that combines an addressable fire alarm control system with voice evacuation capabilities. It supports single- and dual-channel audio applications, programmable emergency messages, and connection to remote amplifiers for coordinated fire alarm notification.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Control Panels |
| Part Number | AFC-1000V |
| Subcategory | Voice Evacuation Panels |
| System Type | Addressable Fire Alarm Control Panel with Voice Integration |
| Voice Channels | Single or dual channel |
| Message Storage | Up to 2 hours |
| Custom Audio Patterns | Up to 255 |
| Programmable Push Buttons | Up to 104 |
| Remote Amplifiers | Up to 10 SCA or DCA amplifiers |
| Voice Module | VM-1000 |
| Remote Operator Console | LOC-1000 compatible |
| Firefighter Telephone | Optional FFT-1000 system |
| AC Input | 5.0 A @ 120 VAC; 3.0 A @ 240 VAC, 50/60 Hz |
| Power Supply | 10 A for NACs, I/O, and P-Link |
| NAC Rating | 3 A per NAC, regulated |
| I/O Rating | 1 A per I/O circuit, regulated |
| Battery Charger | 27.3 VDC; 8–55 Ah battery range |
| Operating Temperature | 32° to 120°F (0° to 49°C) |
| Maximum Humidity | 93% non-condensing |
| Enclosure Material | 16-gauge cold-rolled steel |
| Enclosure Dimensions | 21 3/8 × 29 1/8 × 4 7/8 in |
| Standards | NFPA and UL 864 applicable listings |
| Weight | 16 lb |
Information About AFC-1000V
The AFC-1000V is an enhanced version of Potter’s AFC-1000 addressable fire alarm system with integrated voice functionality. The panel incorporates the VM-1000 voice module and digital message repeater to distribute audio to designated remote amplifiers. Its programming system supports stored messages, customizable audio patterns, and audio files recorded or imported from a laptop. The enclosure is constructed from 16-gauge cold-rolled steel with a removable locked door and Lexan viewing window for protected system access.
Key Features:
- Voice Evacuation: Provides integrated voice functionality for emergency communication and evacuation applications.
- Dual-Channel Support: Supports both single-channel and dual-channel voice configurations.
- Message Storage: Stores up to 2 hours of recorded emergency messages.
- Audio Patterns: Supports up to 255 customizable audio patterns for different emergency conditions.
- Audio Import: Allows messages to be recorded or imported from a laptop through the panel programming system.
- Amplifier Connectivity: Supports connection of up to 10 SCA single-channel or DCA dual-channel amplifiers.
- Programmable Controls: Supports expansion to up to 104 programmable push buttons for speaker and ECS assignment.
- Remote Operation: Interfaces with the LOC-1000 local operator console for remote system control.
The AFC-1000V delivers the reliability and precision required for integrated fire alarm control and emergency voice evacuation systems.
