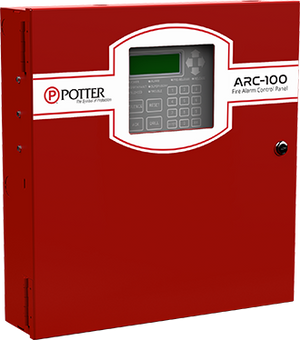

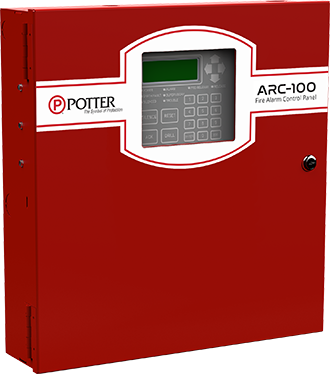

Potter ARC-100 Analog Addressable Releasing Fire Alarm Control Panel
- Regular price
- $1,517.00
- Sale price
- $1,517.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ARC-100
Description
The Potter ARC-100 is an analog/addressable releasing fire alarm control panel designed to monitor fire detection devices and control fire suppression system releasing functions. With a capacity of up to 100 addresses, it combines programmable notification, input/output, and releasing functions for commercial and industrial fire protection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Safety |
| Part Number | ARC-100 |
| Subcategory | Releasing Fire Alarm Control Panels |
| Product Type | Analog/Addressable Releasing Fire Alarm Control Panel |
| System Address Capacity | Up to 100 addresses |
| Communication Protocol | Potter proprietary protocol |
| Compatible Devices | Smoke sensors, heat detectors, and addressable modules |
| SLC Circuit Impedance | Up to 50 Ohms |
| Wiring Requirements | NEC-compliant wire |
| Power Supply Rating | 5 Amps |
| Notification Appliance Circuits | 2 |
| NAC Rating | 3 Amps per circuit |
| Input/Output Circuits | 2 |
| I/O Circuit Rating | 1 Amp per circuit |
| Output Configuration | Steady signal, strobe synchronization, constant power, door holder power, or releasing |
| Strobe Synchronization | Gentex, AMSECO, System Sensor, Cooper/Wheelock, and Quadrasync |
| Suppression Functions | Cross zones, counting zones, and programmable timers |
| Hazard Control | Supports multiple releasing outputs across multiple hazards |
| Power Expansion | Supports up to 31 PSN-1000 series intelligent power supplies |
| AC Input at 120 VAC | Maximum 5 A, 50/60 Hz |
| AC Input at 240 VAC | Maximum 3 A, 50/60 Hz |
| Dimensions | 26 × 24 × 8 in |
| Weight | 25 lbs |
Information About ARC-100
The ARC-100 is a Potter analog/addressable releasing fire alarm system that operates using the proprietary Potter communication protocol and supports compatible sensors and modules. Its Signaling Line Circuit can accommodate combinations of smoke detectors, heat detectors, and addressable modules while allowing up to 50 ohms of circuit impedance and NEC-compliant wiring. The panel includes a 5 Amp power supply, two regulated Notification Appliance Circuits, and two programmable Input/Output circuits for detection, control, and releasing functions. System capacity can be extended with compatible multi-point SLC modules and PSN-1000 series intelligent power supplies for additional power, inputs, and notification circuits.
Key Features:
- 100 Address Capacity: Supports a total system capacity of up to 100 addressable points.
- Analog/Addressable Control: Uses the Potter protocol with compatible addressable sensors and modules.
- Releasing Capability: Listed for controlling fire suppression system releasing applications.
- 5 Amp Power Supply: Provides integrated system power for connected fire alarm and control circuits.
- Dual NAC Circuits: Includes two regulated and power-limited Notification Appliance Circuits rated at 3 Amps each.
- Programmable I/O Circuits: Provides two 1 Amp Input/Output circuits for functions including manual release and abort inputs.
- Flexible Output Configuration: Outputs can be programmed for steady signal, strobe synchronization, constant power, door holder power, or releasing.
- Expandable System Power: Supports up to 31 compatible PSN-1000 series intelligent power supplies for additional notification and releasing capacity.
The ARC-100 delivers the reliability and precision required for addressable fire detection and controlled fire suppression releasing applications.
